6 Wire the printer
Procedure
Wire the RS-232-RS-485 adapter terminals to the transmitter terminals.
Converter Terminals
K2 ADE • Wire the K2 ADE terminal 1 to Channel E, RS-485B, terminal
10
• Wire the K2 ADE terminal 2 to Channel E, RS-485A, terminal 9
K2 • Wire the K2 terminal 3 to Channel E, RS-485B, terminal 10
• Wire the K2 terminal 4 to Channel E, RS-485A, terminal 9

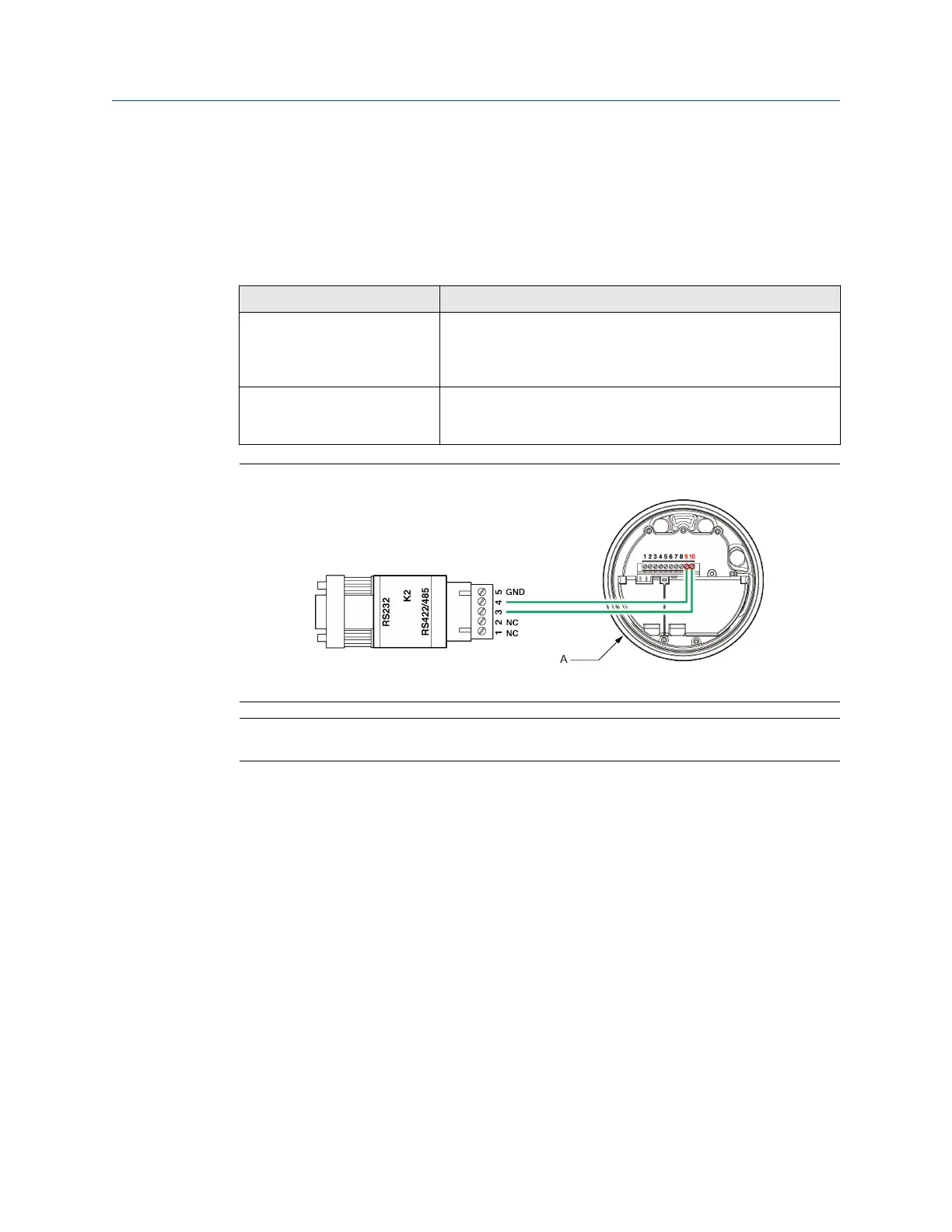

Figure 6-1: Wiring between the K2 terminals to the transmitter terminals
A. Transmitter with end-cap removed
Important
For a K2 ADE converter, use terminals 1 and 2 on the converter.
For more information, see RS-485/RS-232 adapter instructions supplied by the
manufacturer.
Installation Manual Wire the printer
MMI-20027478 April 2022
Installation Manual 47
