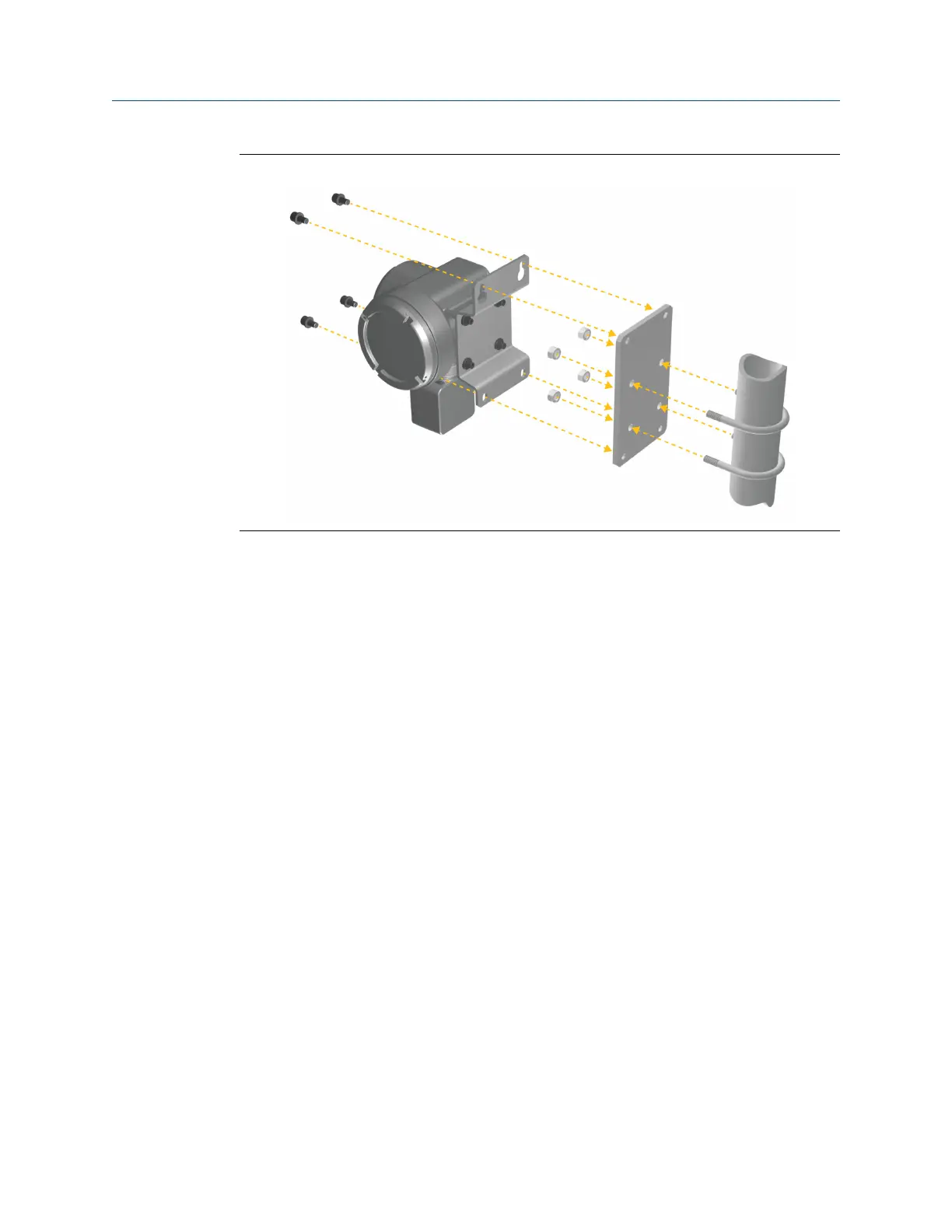

Figure 3-7: Pole-mounting bracket attachment for a stainless steel transmitter
3.3 Wire a remote-mount transmitter to the
sensor
Use this procedure to wire a four-wire or nine-wire remote-mount transmitter to the
sensor.
Prerequisites
• Prepare the four-wire cable as described in the sensor documentation.
• Prepare the nine-wire cable as described in the Micro Motion 9-Wire Flow Meter Cable
Preparation and Installation Guide.
• Connect the cable to the sensor-mounted core processor or junction box as described
in the sensor documentation. You can access all product documentation on the
documentation DVD shipped with the product or at Emerson.com.
Mounting and sensor wiring Installation Manual
April 2022 MMI-20027478
16 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs
