Emerson Micro Motion 5700 - Wire the Frequency Output (Externally Powered); Wire the Frequency Output (Internally Powered) (Channel D)

4.5.2 Wire the frequency output (externally powered)
Use this procedure to wire the externally-powered frequency output for Channel B or C.
Procedure
Wire to the appropriate output terminal and pins.

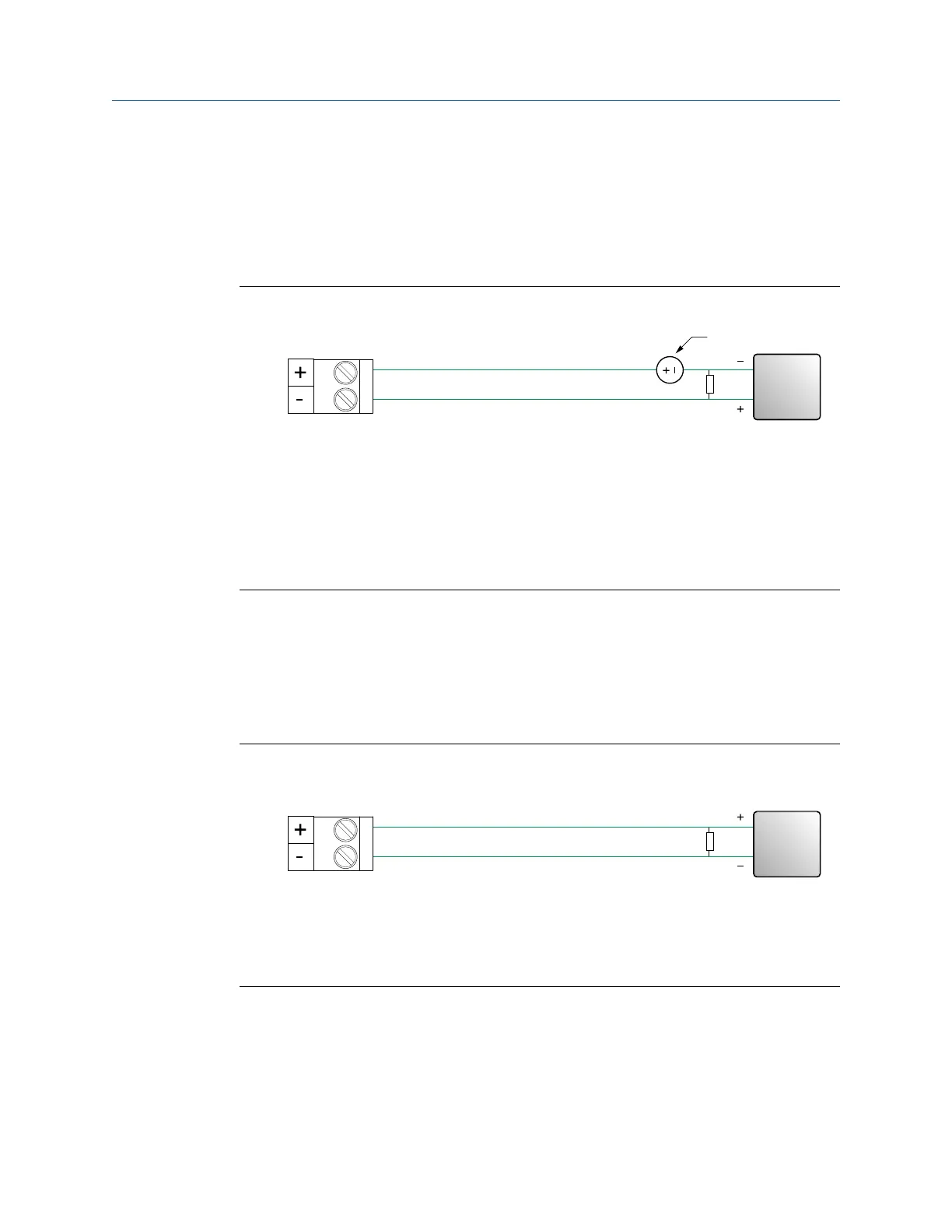

Figure 4-12: Frequency output wiring (externally powered)
A
B
E
D
C
A. Frequency output
B. Channel B or C
C. 5–30 VDC (maximum)
D. Current limiting resistor. Close resistor to limit current below 500mA (maximum).
Current= C (VDC)/ D (ohms).
E. Counter
4.5.3
Wire the frequency output (internally powered)
(Channel D)
Procedure
Wire to the appropriate output terminal and pins.
Figure 4-13: Frequency output wiring (internally powered)
A
7
8
C
B
A. Frequency output
B. See Figure 4-14 for output amplitude versus load resistance
C. Counter
Wiring the channels Installation Manual
April 2022 MMI-20027478
32 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs
