Emerson Micro Motion 5700 - Wire the Discrete Output (Externally Powered Channel D)

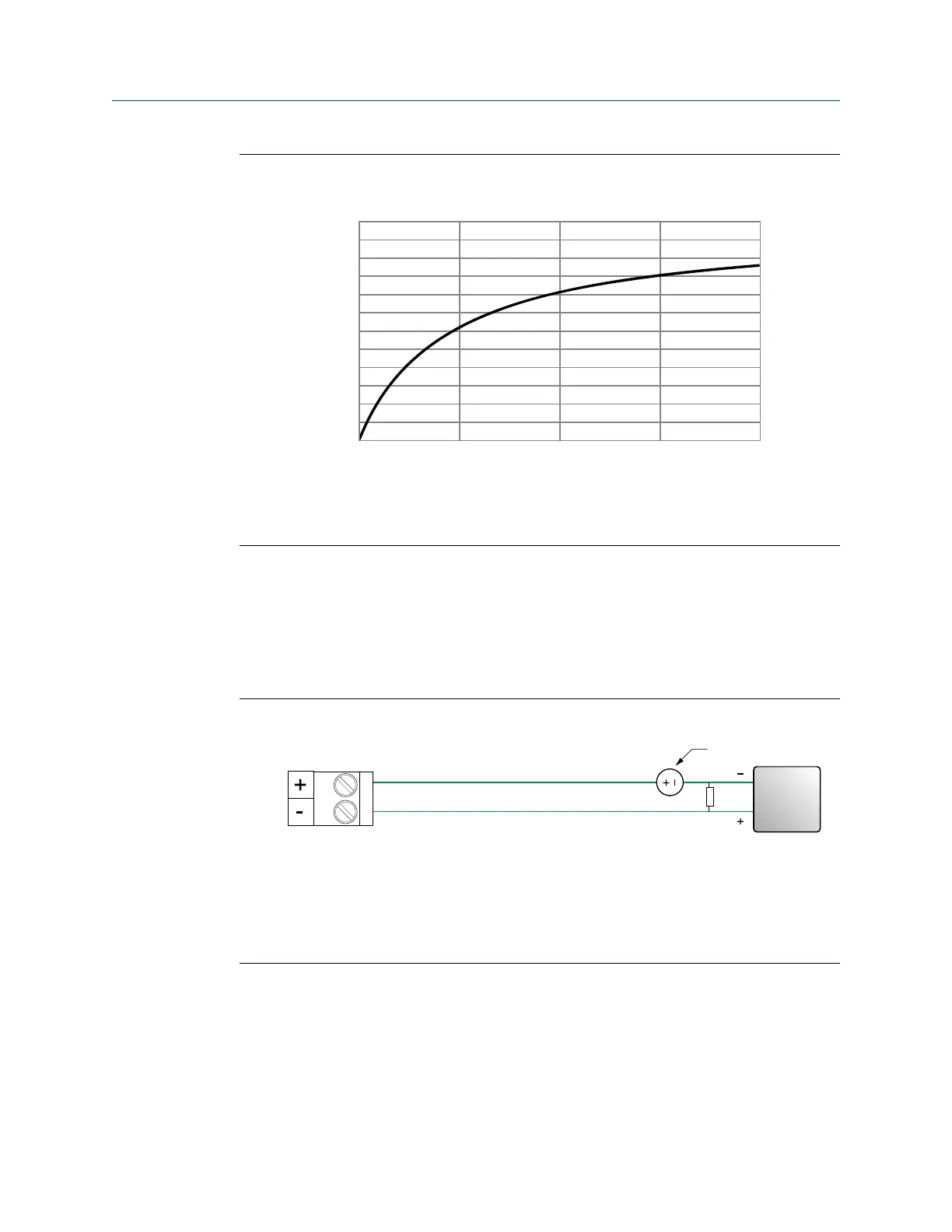

Figure 4-20: Internally powered discrete output: output amplitude versus load
resistance [24 VDC (Nom) open circuit]
0
2
4
6
8
10
12
14
16
18
20
22
24
0 2500 5000 7500 10000
A
B
A. Output amplitude (V)
B. Load resistor (Ω)
4.6.4
Wire the discrete output (externally powered Channel
D)
Procedure
Wire to the appropriate output terminal and pins.
Figure 4-21: Discrete output wiring (externally powered)
A
7
8
D
C
B
A. Discrete output
B. 3–30 VDC (maximum)
C. 500 mA current (maximum)
D. Signal device
