Emerson Micro Motion SGM - Chapter 2 Orientation and Planning; Functional View of the SGM

2 Orientation and planning
2.1 Functional view of the SGM
SGM components view
The following figures illustrate the major components of the SGM. Depending on the order, some
components may be shipped with the device or supplied by the customer.

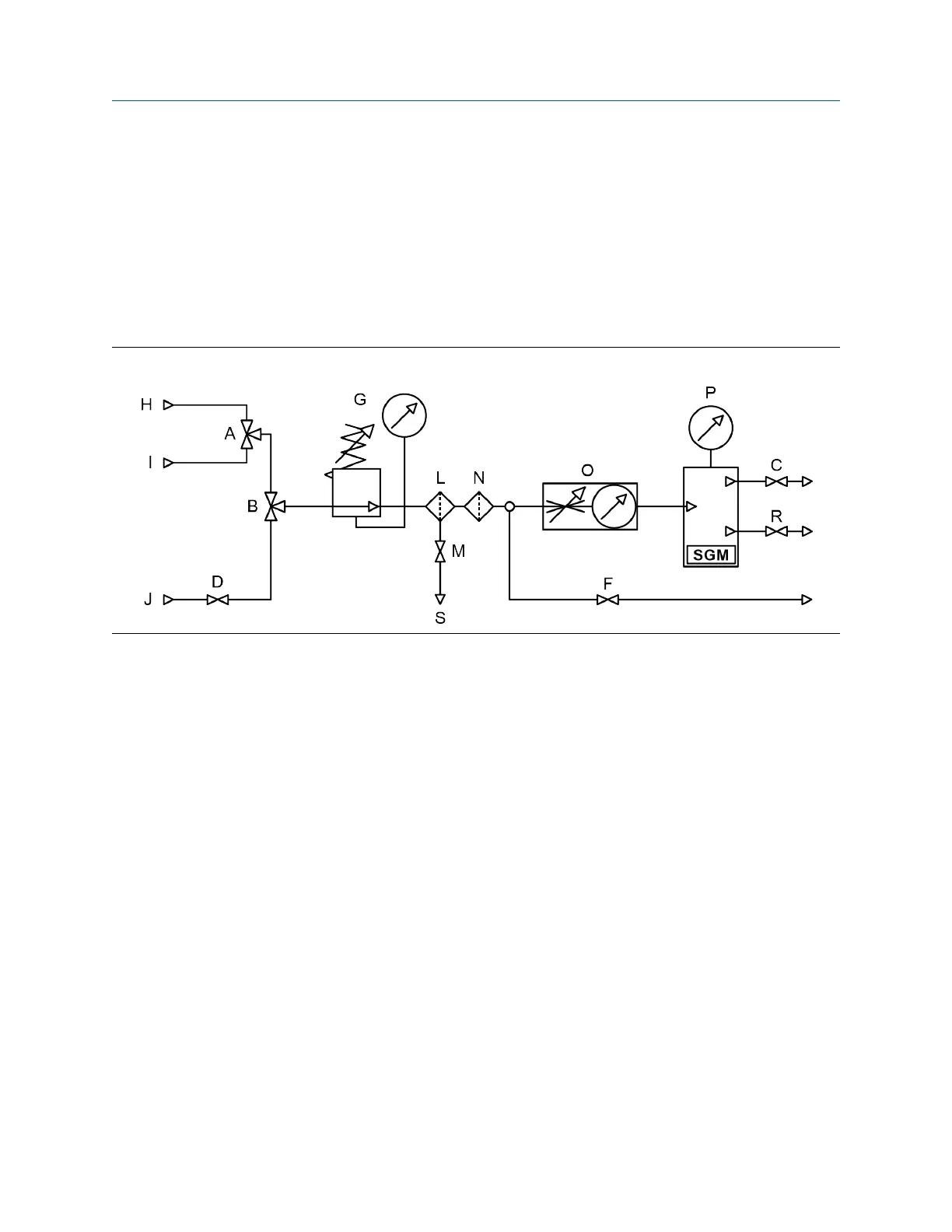

Figure 2-1: Typical SGM installation
