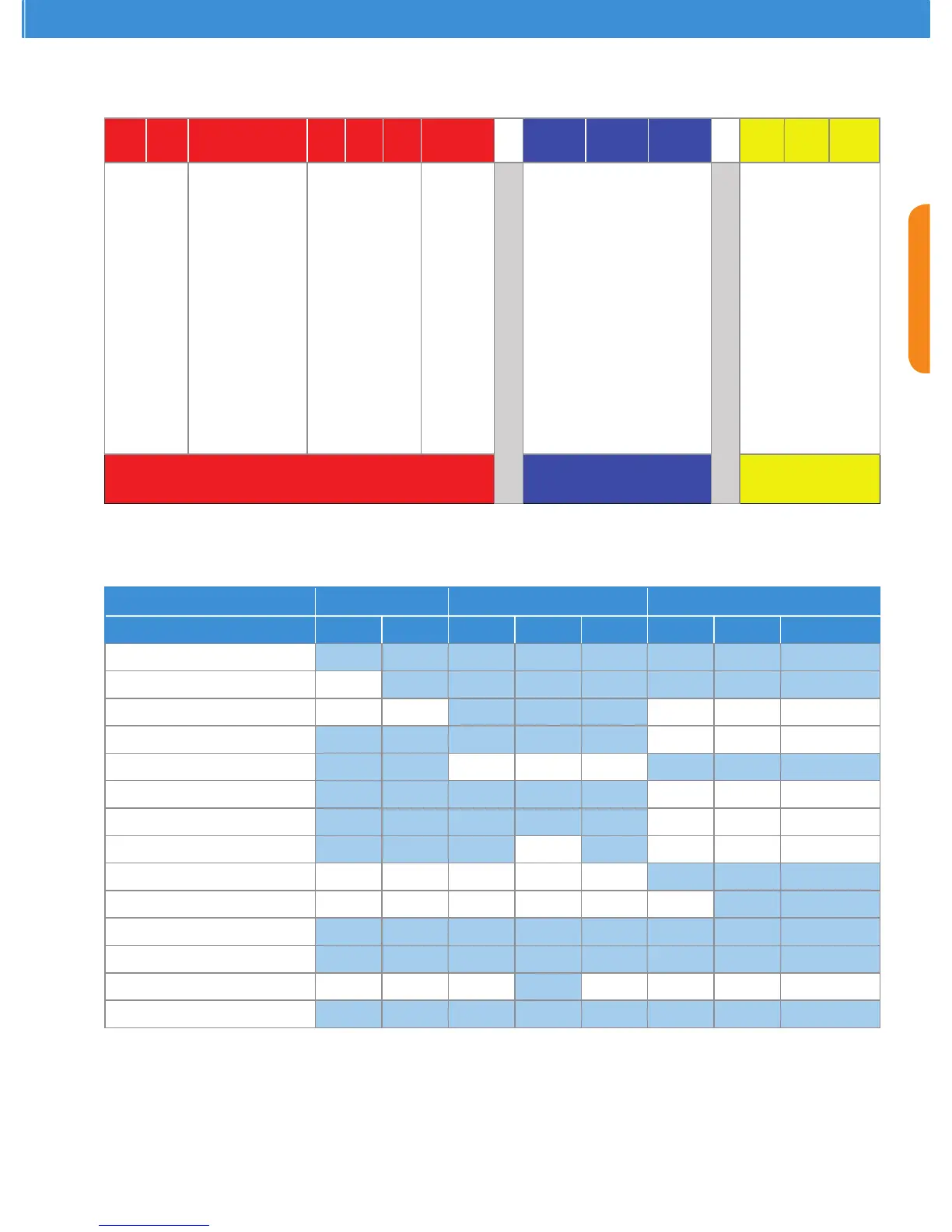

Nomenclature
Z X L 0 2 0 E - T F D - 4 5 1
Unit Family
= Medium Temp
L = Low Temp
D = Digital Medium Temp
2.0 to 7.6 HP
E = Ester oil
O = Mineral Oil
PFJ = 220V/240V- 1ph- 50 Hz
TFD = 380V/420V- 3ph- 50 Hz
TF5 = 200V/230V- 3ph- 60 Hz
TF7=380 - 3ph - 60 Hz
Bill of Material
Base Model Electrical Code Bill of Material
BOM
CDU Family ZX ZXL ZXD
BOM 401 451 451 461 471 450 451 461
Liquid Line Filter Dryer/Sight Glass
Oil Separator
Accumulator
Adjustable LP Switch
Fixed LP Switch
E2 Controller
Diagnostic Module
Buzzer
Digital Scroll Controller
Fan Speed Controller
Circuit Breaker
Sound Jacket
Defrost Module ACC ACC ACC ACC
Filter Drier V
Notes: E2 controller has fan speed control function
“V” indicates are type connection
“ACC” indicates accessory
