10

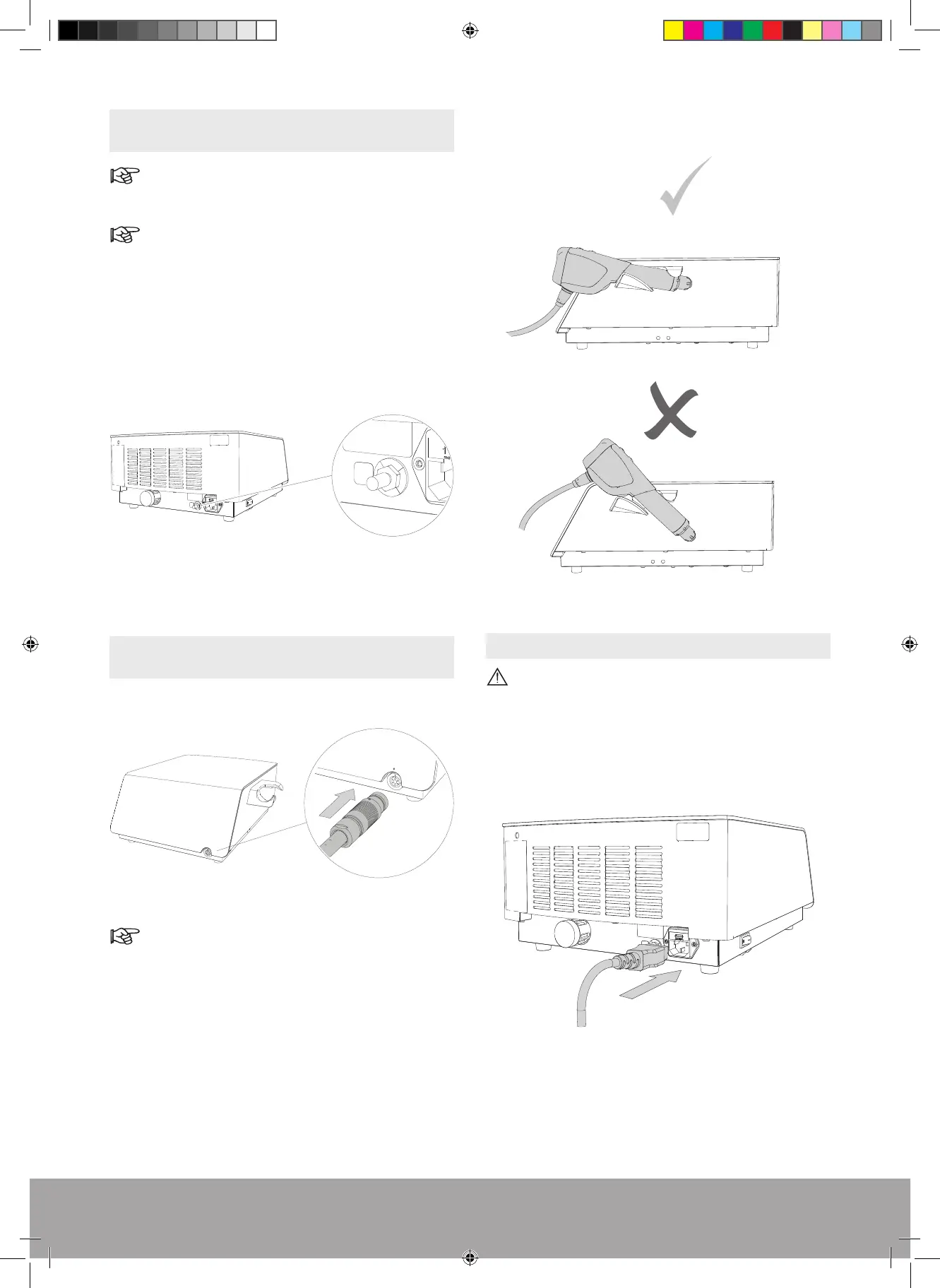

2.3. CONNECTING THE CONSOLE TO THE
EQUIPOTENTIAL CONDUCTOR
When applicable and according to your in-house
protocol, connect the equipotential conductor at
the rear of the console with the bus bar.
The equipotential cable is not supplied with the
console.
The equipotential plug is used to prevent differences of
potential between items of medical equipment that could
generate measurement or treatment errors, if the medical
device generates interference.
In case of observed interference, the unit shall be
connected to other devices used through this plug.
Figure 8
2.4. CONNECTING THE HANDPIECE TO THE
CONSOLE
1. Connect the handpiece to the console. Pay attention
to the orientation of the connector.
Figure 9
The red dot must be on top for proper alignment.
2. Place the handpiece on the handpiece holder.
Figure 10
2.5. CONNECTING THE POWER CORD
To avoid the risk of electric shock, this product
must only be connected to a mains power supply
with protective earth.
1. Connect the power cord to the power socket at the
rear of the console.
Figure 11
