2.2. INSTALLING THE CONSOLE
Install the console on a at, stable surface or use
the cart (optional) designed for the console.
2.2.1. Installing the Console on the Cart
All screws have to be pre-assembled without
tightening them at rst. Only tighten after they are
all into the right place.
1. Ensure the brakes on the cart are activated before
installing and using the device.
2. Place the console on the cart. Make sure that the feet
are correctly inserted in the corresponding holes on
the upper plate.

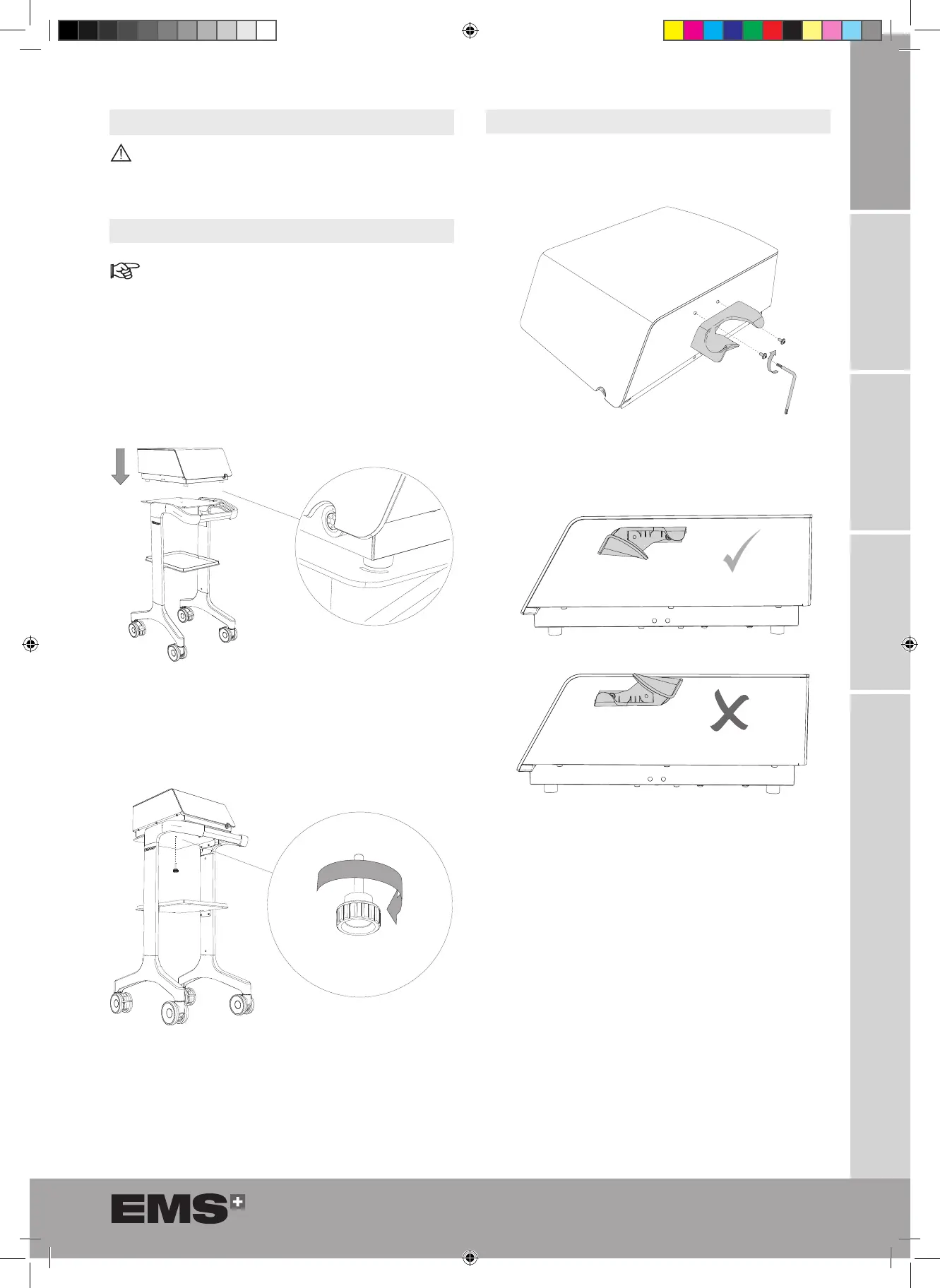

Figure 4
3. Secure the console to the cart using the dedicated
thumbscrew.
Figure 5
2.2.2. Installing the Handpiece Holder on the Unit
1. Use the screws and tool provided to secure the
handpiece holder to the unit.
Figure 6
2. Ensure the handpiece holder is in the correct position.
Figure 7
