EMS DOLORCLAST - Page 8

8
4
5
3
6
7
2
1

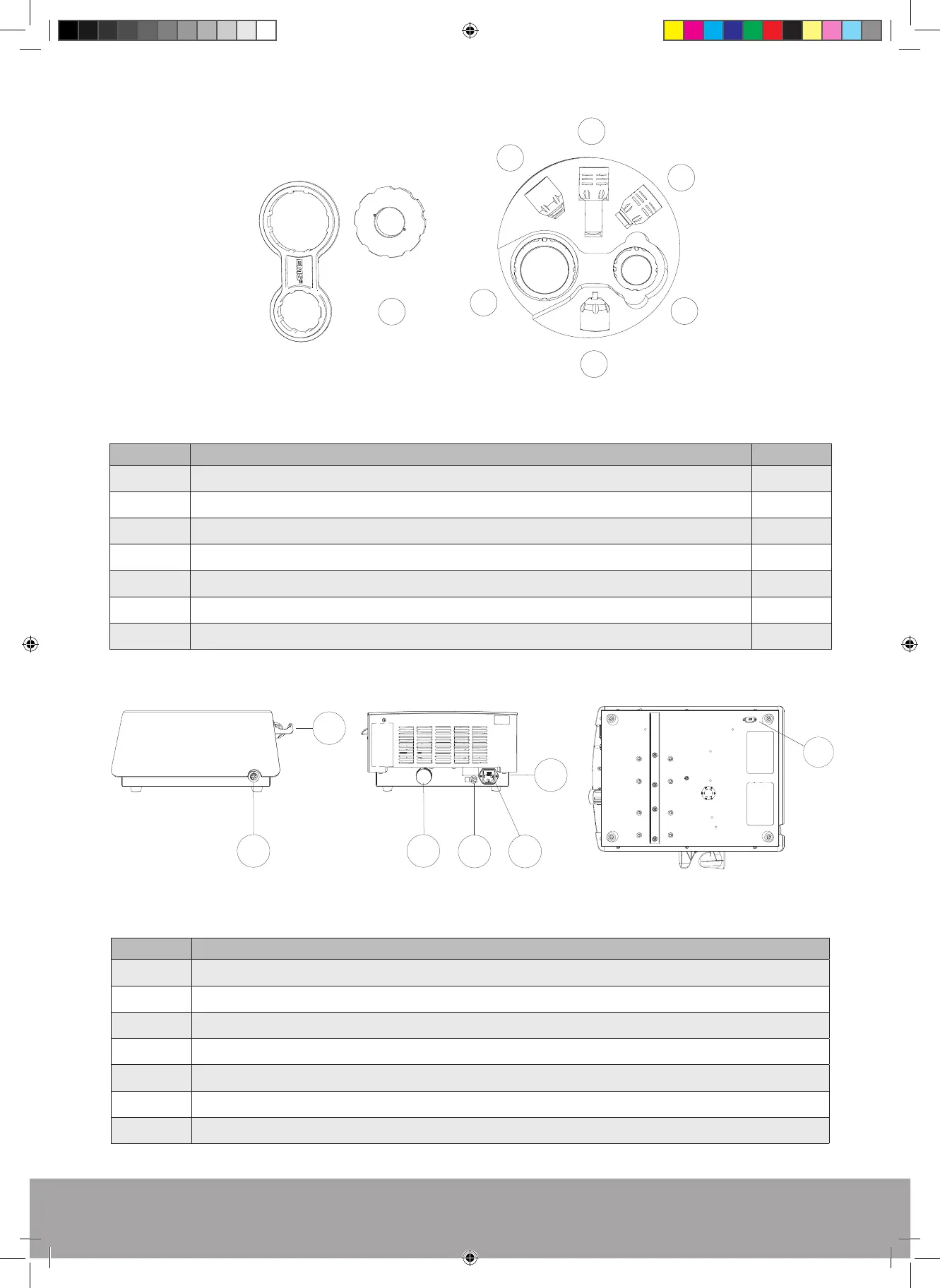

Figure 2
REF DESIGNATION QTY
1 Maintenance tool set for 25-mm and 40-mm applicators 2
2* 40-mm Applicator 1
3* 10-mm Applicator - Optional 1
4* 15-mm Applicator, Trigger – Optional 1
5* 15-mm Applicator, Focus – Optional 1
6* 25-mm Applicator - Optional 1
7* 5-mm Applicator - Optional 1
*EMS recommends to clean and disinfect the applicator prior to treating a patient.
7
1
2
3
4 5
6
Figure 3
REF DESIGNATION
1 Connector for the handpiece (applied part)
2 Handpiece holder
3 Air lter
4 Equipotential connector
5 Power connection
6 Mains power switch
7 Sub-D conector (for after sale service only)
