Encore ENHWI-G3 User Manual

Domain Blocking
You could specify the domains that allow users to access or deny by clicking one of the two
items. Also, add the specified domains in the text box.

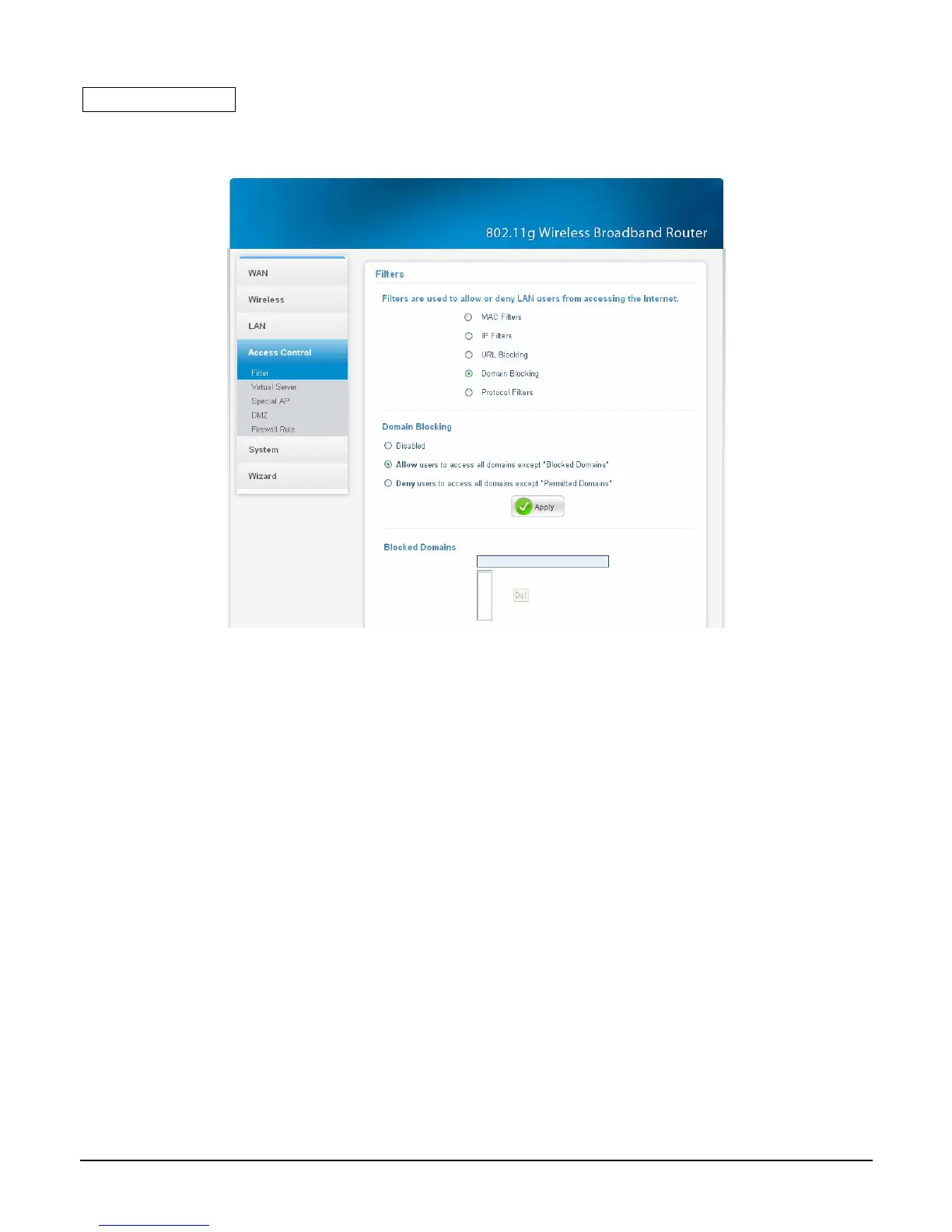

Figure 54.
Disable: Disable the Domain Blocking function.
Allow: Allow users to access all domains except “Blocking Domains”.
Deny: Deny users to access all domains except “Permitted Domains”.
Blocked/Permitted Domains: List domains you will Blocked or Permitted.
Apply: Click to add domain to the Blocked/Permitted Domains list.
Del: Select a user from the table at the bottom of the list and click Del to remove the user
profile.
38

Encore ENHWI-G3 Specifications

Transmission and Reception

transmission rate (802.11b)	1, 2, 5.5, 11 Mbps
transmission rate (802.11g)	6, 12, 24, 36, 48, 54 Mbps
receiver sensitivity (54Mbps)	-70 @ 10% PER
receiver sensitivity (11Mbps)	-85 @ 8% PER
wireless LAN frequency range	2412 ~ 2484 MHz

Transmit Power and Antennas

transmit power (802.11b)	15±2 dBm
transmit power (802.11g)	13±2 dBm
antenna type	Dual diversity antennas
external antenna gain	2 dB

Interface and Ports

LAN ports	4 x 10/100 Mbps Auto-MDIX Ethernet ports
WAN port	1 x 10/100 Mbps Auto-MDIX Ethernet port
interface	LAN, WAN

Power and Temperature

power adapter voltage	7.5 V
power adapter current	1 A
operation temperature	0 ~ 40 °C
storage temperature	-10 ~ 70 °C

Dimensions and Environmental

dimensions (W x H x D)	147 x 115 x 35 mm
range coverage indoor	Up to 30 meters
range coverage outdoor	Up to 100 meters
humidity	10% ~ 95% RH, no condensation
