8.9 Level measurement (Deltabar M)
8.9.1 Preparatory steps
Open container
Before calibrating the device, the impulse piping must be cleaned and filled with medium.
 See the following table.

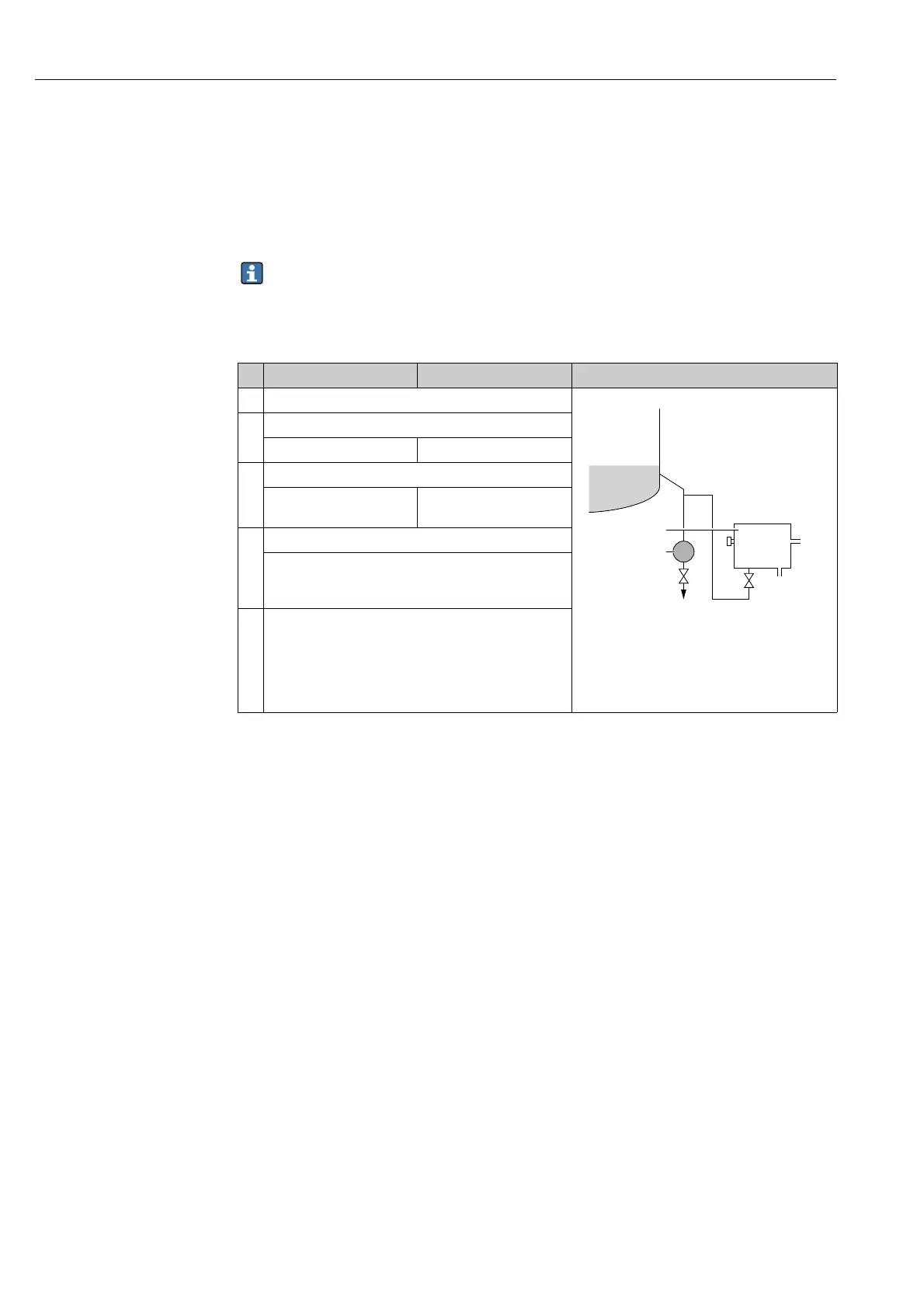

Valves Meaning Installation
1 Fill container to a level above the lower tap.
A0030038
Open container
I Deltabar M
II Separator
6 Vent valves on Deltabar M
A Shut-off valve
B Drain valve
2 Fill measuring system with medium.
Open A. Open shut-off valve.
3Vent device.
Open 6 briefly, then close it
again.
Fill device completely with
medium and remove air.
4 Set measuring point in operation.
Now
– B and 6 are closed.
–A is open.
5 Carry out calibration according to one of the following
methods:
• "In pressure" - with reference pressure ( ä 99)
• "In pressure" - without reference pressure ( ä 101)
• "In height" - with reference pressure ( ä 103)
• "In height" - without reference pressure ( ä 105)
+
A
–
P2
+
P1
6
p
atm
II
I
B
