Cerabar M, Deltabar M, Deltapilot M Commissioning with the FF configuration program
Endress+Hauser 163
9.11 Displaying external values on the onsite display via
FF bus
The inputs of the Input Selector Block are used to display external values on the onsite
display via the FF bus.
Example:
A0030417

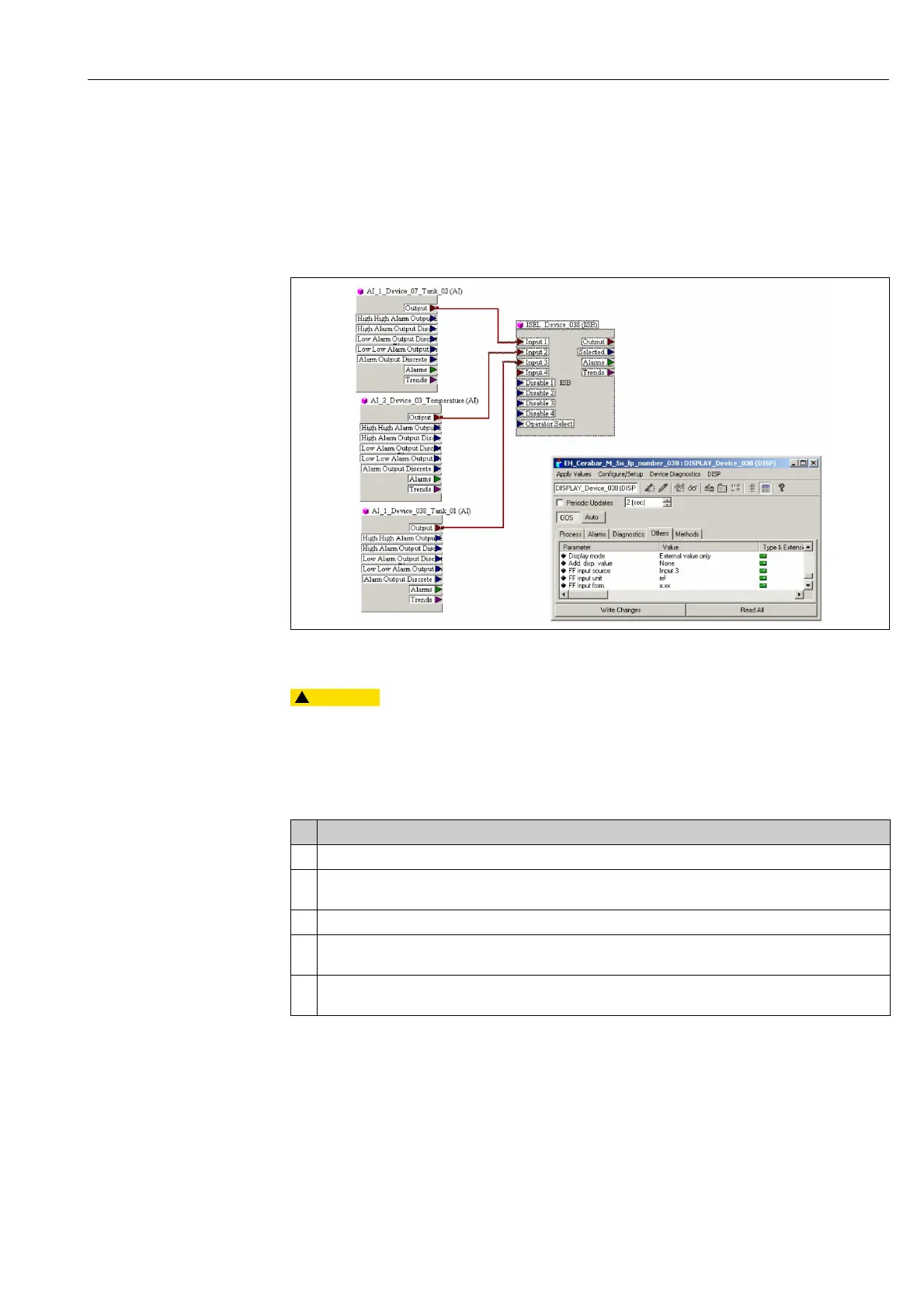

Fig. 50: Connection example
CAUTION
!
Note Dependencies when setting parameters!
‣ The desired value must be connected to one of the four inputs of the Input Selector Block,
and this configuration must be written into the device. Only the inputs of the Input
Selector Block are used for functionality. Output and status are not taken into account
Description
1Open the Display Block.
2 Select the "External value only" option via the Display mode/DISPLAY_MAIN_LINE_1_CONTENT
parameter.
3 Select an input via the FF input source/DISPLAY_INPUT_SELECTOR parameter, here "Input 3" for example.
4 Via the FF input unit/DISPLAY_INPUT_UNIT parameter, select the appropriate unit, as only values and
status information are transmitted with FF, here "m²" for example.
5 Via the FF input form./DISPLAY_INPUT_FORMAT parameter, select the desired format for the onsite
display, here "x.xx" for example.
