9.8 Flow measurement (Deltabar M)
In this chapter the parameter text as well as the parameter name are indicated.
In FF configuration programs only the parameter text is displayed (exception: in the NI-
FBUS configurator you can select if the parameter text or the parameter name is displayed).
Example:
9.8.1 Adjustment
Example:
In this example, a volume flow should be measured in m
3
/h.
• The "Flow measurement" measuring mode is only available for the Deltabar M differential
pressure transmitter.
• For a description of the parameters mentioned, see
–  ä 178, Pressure Transducer Block.
–  ä 208, Analog Input Block.
Parameter text Parameter name
Linearization LINEARIZATION
Description
1 Before configuring the device for your application,
the pressure piping must be cleaned and the device
filled with medium.
A0031382

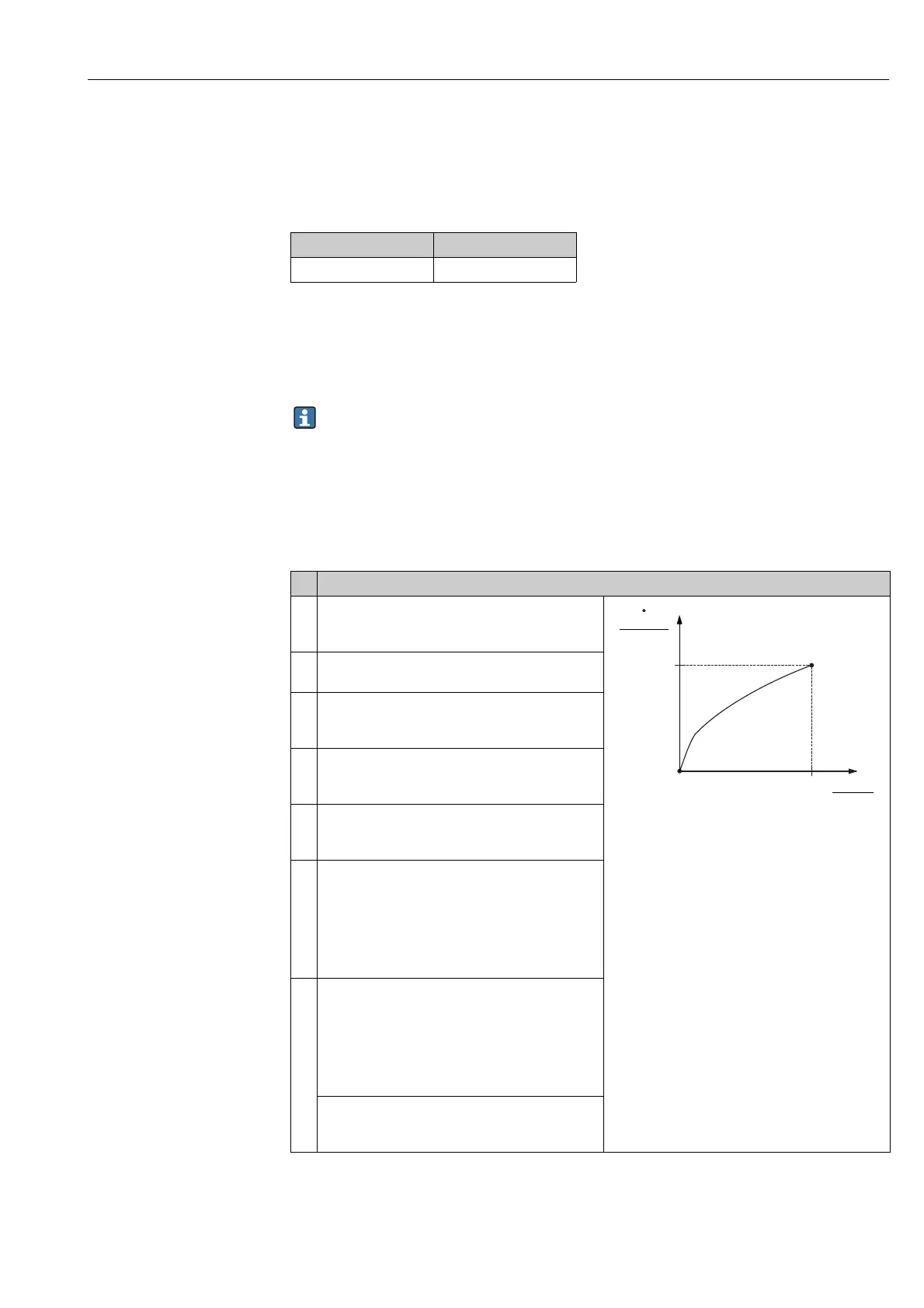

Fig. 48: Adjustment flow measurement
A See Table, step 7.
B See Table, step 8.
2 Open the Pressure Transducer Block and DP_FLOW
Block and set the block mode to OOS.
3 Select the measuring mode if necessary:
• Select the "Flow" option via the Primary Value
Type/PRIMARY_VALUE_TYPE parameter.
4 By means of the Press. eng. unit/CAL_UNIT
parameter or via Scale In/SCALE_IN, select a
pressure unit, here mbar for example.
5Via the DP_FLOW Block:
Select the "Volume operat. cond." option via the Flow
meas. type/FLOW_TYPE parameter.
6Via the DP_FLOW Block:
By means of the Flow unit/FLOW_UNIT parameter,
select a flow unit, here m
3
/h for example, or
via the Pressure Transducer Block:
By means of the Scale In/SCALE_IN record
parameter, select the "Press. eng. unit/
PRESSURE_1_UNIT" element.
7Via the DP_FLOW Block:
By means of the Flow Max/MAX_FLOW parameter,
select the EU_100 element or
via the Pressure Transducer Block:
By means of the Scale Out/SCALE_OUT record
parameter, select the "EU at 100% /
E_ENGINERING_UNIT_100_PERCENT" element.
Enter the maximum flow value of the primary
device, here 6000 m
3
/h for example. See also the
layout sheet of the primary device.
A
V
[m / h]
3
B
0 400
6000
0
p
[mbar]
