Endress+Hauser Deltabar PMD75B - Device Mounting Procedures

Deltabar PMD75B PROFINET with Ethernet-APL Mounting
Endress+Hauser 15
54
3 3 3
6
7
A D
K
1 1 1
2 2 2
3
N
1/2
1
3
1
G
3
4 4
4
4
+ + + + - - - -
+ -
A0038688

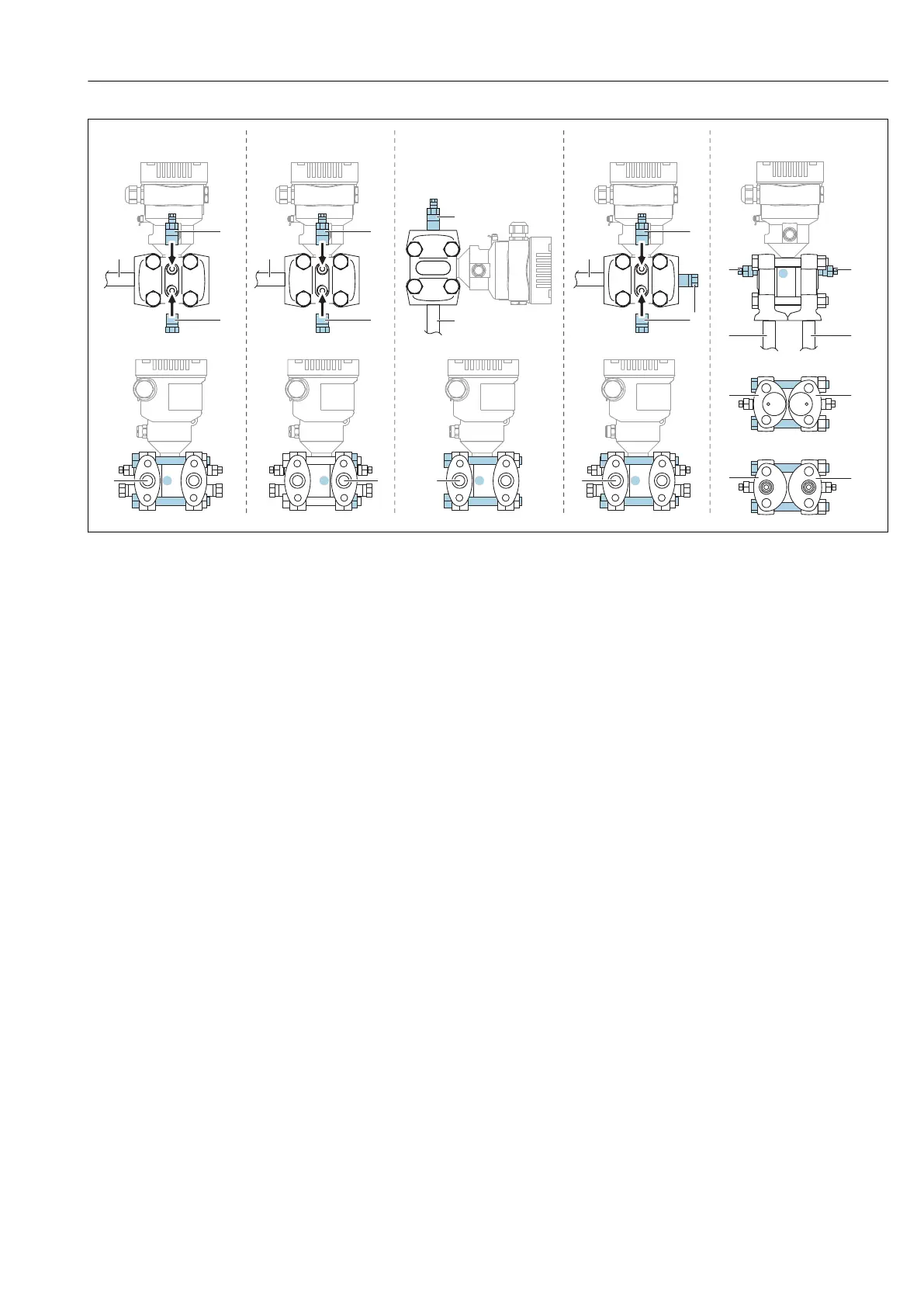

 1 A, D, G, K, N: order options
A Horizontal piping, left side HP (screw head side), with side vent. Thread on one side and side thread for
horizontal piping.
D Horizontal piping, right side HP (nut side), with side vent. Thread on one side and side thread for horizontal
piping.
G Vertical piping, left or right side HP (screw head side), with vent. Thread on each side for vertical piping.
K Universal side flange, left or right side HP (screw head side), with vent. Thread on each side and side thread
for universal mounting.
N Bottom process connection, left side HP (screw head side), vent. Thread on each side and side thread for
mounting on existing manifolds.
1 Vent valve
2 Sealing plug
3 Piping
4 High-pressure (HP) side (screw head side)
5 High-pressure (HP) side (nut side)
6 Coplanar compatible, view from below
7 IEC upright, view from below
