Endress+Hauser Deltabar PMD75B User Manual

Mounting Deltabar PMD75B PROFINET with Ethernet-APL
16 Endress+Hauser

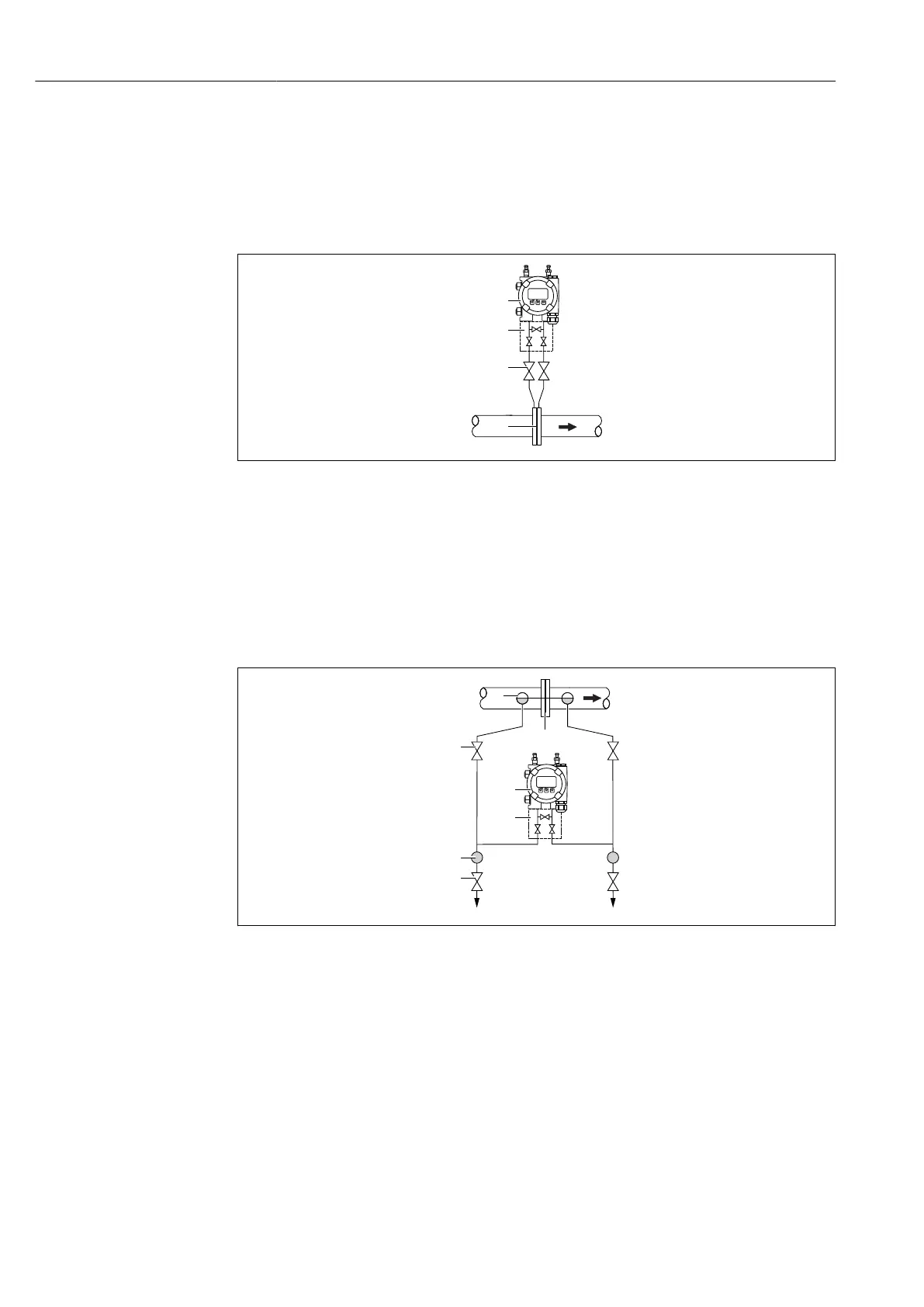

5.2 Mounting the device
5.2.1 Flow measurement
Flow measurement in gases
+
–
4
3
2
1
ESC
-
+ E
A0038211
1 Orifice plate or pitot tube
2 Shutoff valves
3 Three-valve manifold
4 Device
Mount the device above the measuring point so that condensate can drain into the process
pipe.
Flow measurement in vapors
+
–
1
5
3
2
7
6
4
ESC
-
+ E
A0038212
1 Orifice plate or pitot tube
2 Condensate traps
3 Shutoff valves
4 Device
5 Three-valve manifold
6 Separator
7 Drain valves
• Mount the device below the measuring point
• Mount the condensate traps at the same height as the tapping points and at the same
distance to the device
• Prior to commissioning, fill the piping to the height of the condensate traps
