Mounting Deltabar PMD75B PROFINET with Ethernet-APL
14 Endress+Hauser
5 Mounting

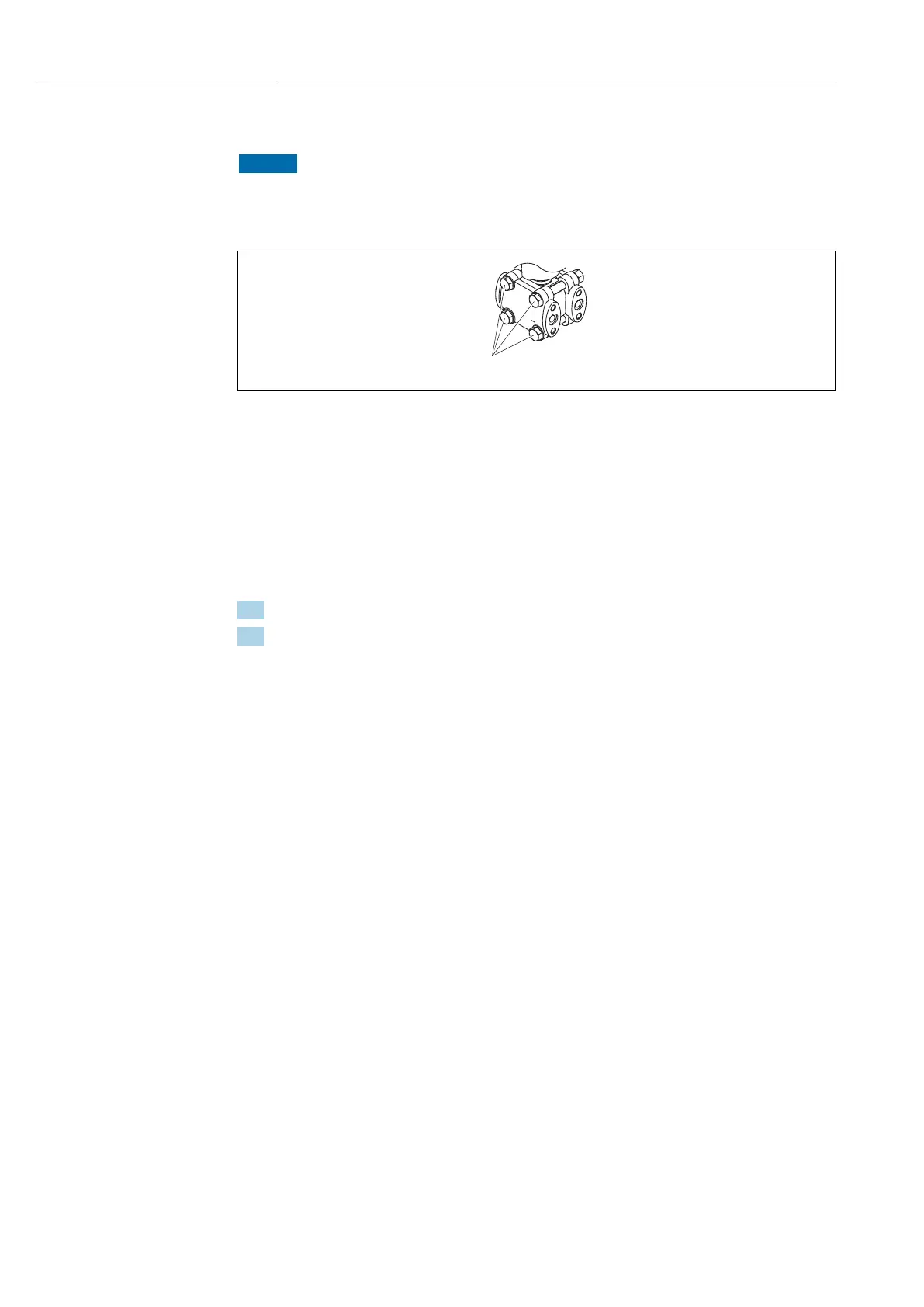

NOTICE
The device can be damaged if handled incorrectly!
The removal of the screws with item number (1) is not permissible under any
circumstances and will void the warranty.
1
A0025336
5.1 Mounting requirements
5.1.1 General instructions
Do not clean or touch the membrane with hard and/or pointed objects.
Do not remove the protection on the membrane until just before installation.
Always firmly tighten the housing cover and the cable entries.
1. Counter-tighten the cable entries.
2. Tighten the coupling nut.
5.1.2 Installation instructions
To ensure optimal readability of the local display, adjust the housing and local display
Endress+Hauser offers a mounting bracket to mount the device on pipes or walls
When measuring in media containing solids (e.g. dirty liquids), installing separators and
drain valves is useful for capturing and removing sediment
Using a valve manifold allows for easy commissioning, installation and maintenance
without interrupting the process
When mounting the device, establishing the electrical connection and during operation:
prevent the penetration of moisture into the housing
Point the cable and plug downwards as much as possible to prevent moisture from
entering (e.g. rainwater or condensation)
5.1.3 Installing pressure piping
For recommendations for routing pressure piping, refer to DIN 19210 "Differential
pressure piping for flow measurement devices" or the corresponding national or
international standards
When routing the pressure piping outdoors, ensure sufficient anti-freeze protection, e.g.
by using pipe heat tracing
Install the pressure piping with a monotonic gradient of at least 10%
5.1.4 Orientation
The installation depends on how the piping is connected.
