Commissioning Deltabar PMD75B PROFINET with Ethernet-APL
46 Endress+Hauser
9.3.2 FieldCare/DeviceCare via service interface (CDI)

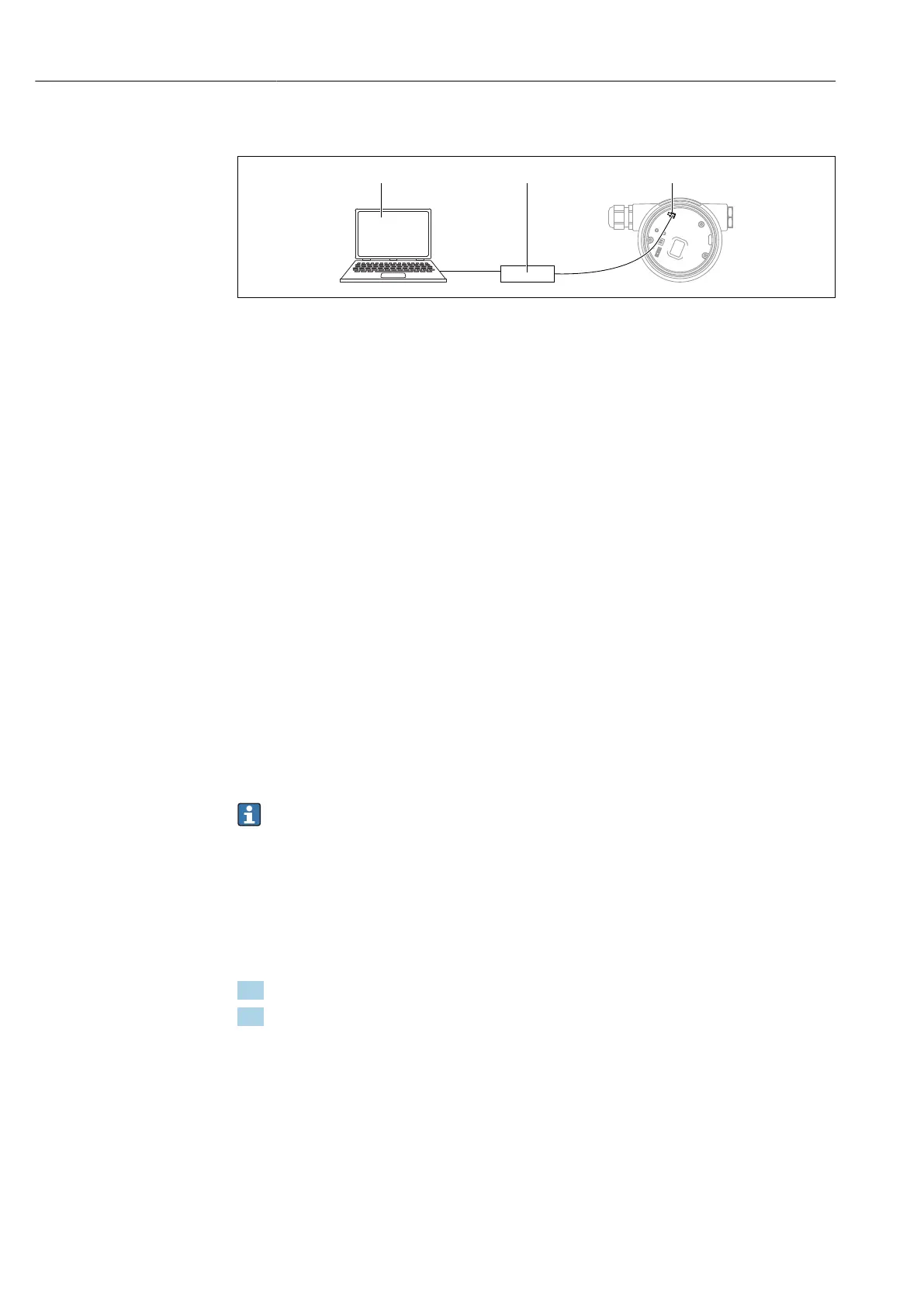

1 2 3
A0039148
1 Computer with FieldCare/DeviceCare operating tool
2 Commubox FXA291
3 Service interface (CDI) of the device (= Endress+Hauser Common Data Interface)
9.4 Hardware settings
9.4.1 Setting the device name
A measuring point can be quickly identified within a plant on the basis of the Device tag
parameter and PROFINET device name parameter. The Device tag parameter, which is
specified ex works or defined when ordering, can be changed in the operating menu.
Configuring the "Device tag" parameter via the operating menu
The Device tag parameter can be adapted via the operating menu or automation system.
System → Device management
Configuring the "PROFINET device name" parameter via the operating menu
Application → PROFINET → Configuration
Configuring the "PROFINET device name" parameter via the automation system
The PROFINET device name parameter can be adapted individually via the automation
system.
When assigning the PROFINET device name parameter via the automation system:
assign the device name in lower case letters.
9.4.2 Activating the default IP address
Activating the default IP address via the DIP switch
The device can be set to the default IP address 192.168.1.212 via DIP switches.
1. Set DIP switch 2 on the electronic insert from OFF → ON.
2. Reconnect the device to the power supply.
 The default IP address is used once the device is restarted.
9.5 Configuring the communication parameters via the
software
• IP address
• Subnet mask
• Default gateway
