Endress+Hauser Deltabar PMD75B User Manual

Operation options Deltabar PMD75B PROFINET with Ethernet-APL
32 Endress+Hauser
!
#
"
!
#
"
1
109
11
2
3
8
7
456
12
X X X
P
P
X X
X X X X X
! ""
ESC
-
+ E
13
A0047141

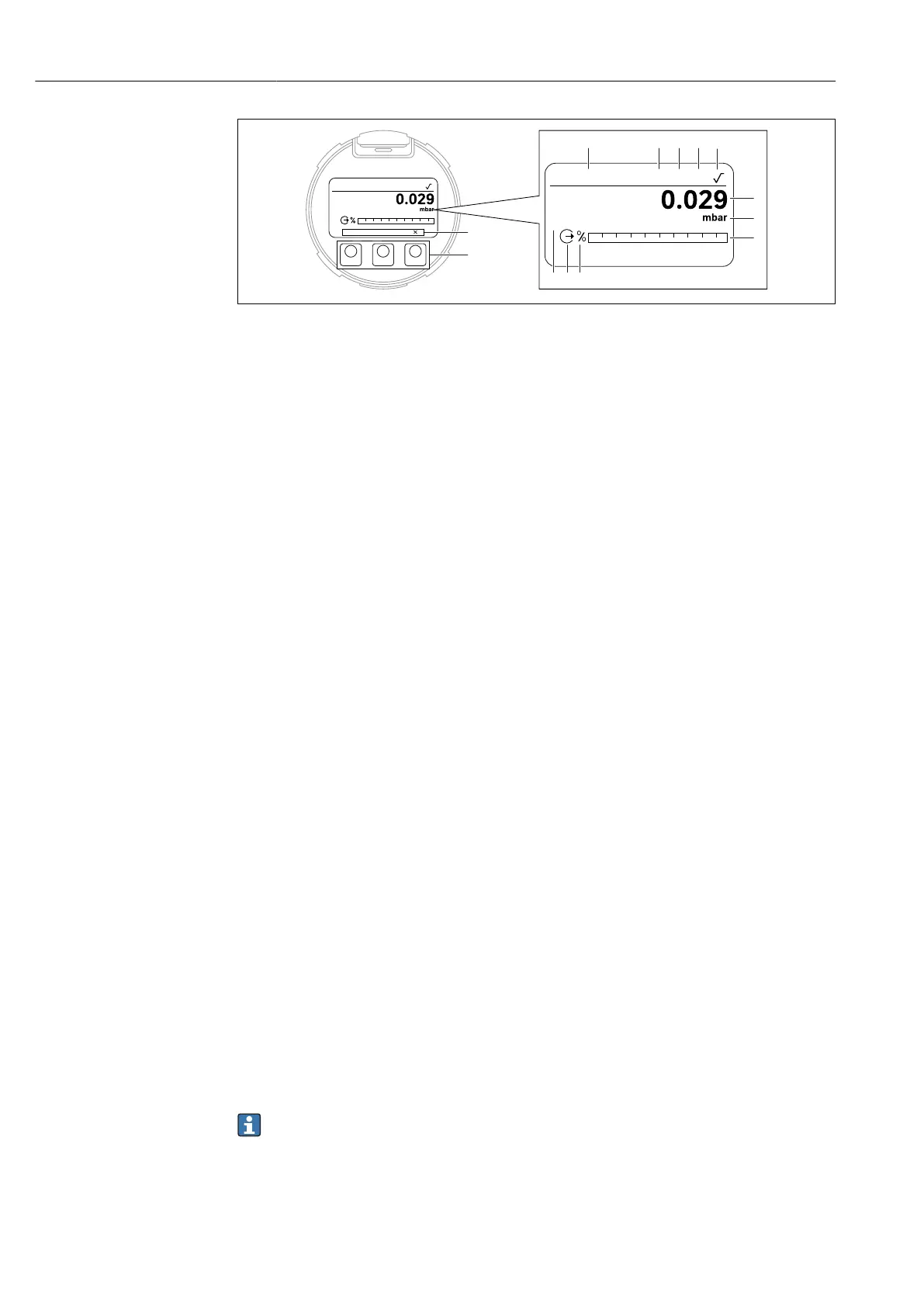

 5 Graphic display with optical operating keys.
1 Measured value (up to 12 digits)
2 Unit of measured value
3 Bar graph (not for PROFINET with Ethernet-APL)
4 Bar graph unit
5 Symbol for current output
6 Symbol for displayed measured value (e.g. p = pressure)
7 Optical operating keys
8 Symbols for key feedback. Different display symbols are possible: circle (not filled in) = key pressed briefly;
circle (filled in) = key pressed for longer; circle (with X) = no operation possible due to Bluetooth connection
9 Device Tag
10 Bluetooth (symbol flashes if Bluetooth connection is active)
11 communication via PROFINET is active
12 Locked (symbol appears when the device is locked)
13 Symbol for square root extraction
•  operating key
• Navigate down in the picklist
• Edit the numerical values or characters within a function
•  operating key
• Navigate up in the picklist
• Edit the numerical values or characters within a function
•  operating key
• Confirm entry
• Jump to the next item
• Select a menu item and activate edit mode
• Unlock/lock the display operation
• Press and hold the  key to display a short description of the selected parameter (if
available)
•  key and  key (ESC function)
• Exit the edit mode for a parameter without saving the changed value
• Menu at a selection level: pressing the keys simultaneously takes the user back up a
level in the menu
• Press and hold the keys simultaneously to return to the upper level
7.4.2 Operation via Bluetooth® wireless technology (optional)
Prerequisite
• Device with Bluetooth display
• Smartphone or tablet with Endress+Hauser SmartBlue app or PC with DeviceCare from
version 1.07.00 or FieldXpert SMT70
The connection has a range of up to 25 m (82 ft). The range can vary depending on
environmental conditions such as attachments, walls or ceilings.
The operating keys on the display are locked as soon as the device is connected via
Bluetooth.
