Deltabar PMD78B PROFINET with Ethernet-APL Mounting
Endress+Hauser 27

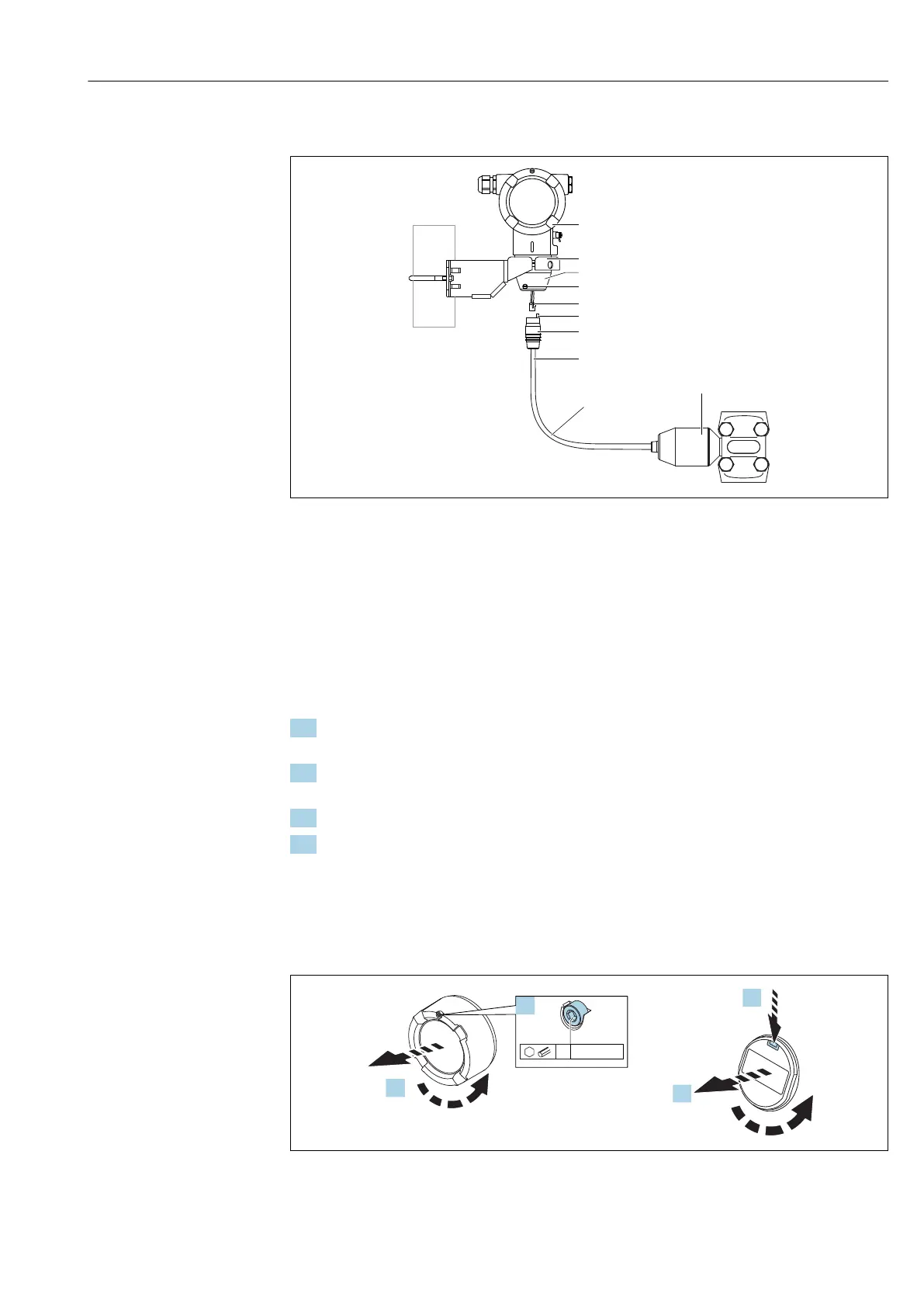

5.2.9 Assembling and mounting the separate housing
7
r ³ 120 (4.72)
2
1
6
6
5
4
3
1
A0043809
Unit of measurement mm (in)
1 Housing mounted with housing adapter, included
2 Mounting bracket provided, suitable for pipe and wall mounting (for pipe diameters from 1 ¼" to 2")
3 Locking screw
4 Plug
5 Pressure compensation
6 Cable with connection jack
7 In the separate housing version, the measuring cell is delivered with the process connection and cable already
mounted.
Assembly and mounting
1. Insert the connector (item 4) into the corresponding connection jack of the cable
(item 6).
2. Insert the cable with the socket (item 6) into the housing adapter (item 1) to the end
stop.
3. Tighten the locking screw (item 3).
4. Mount the housing on a wall or pipe with the mounting bracket (item 2). When
mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at
least 5 Nm (3.69 lbf ft). Mount the cable with a bending radius (r) ≥
120 mm (4.72 in).
5.2.10 Turning the display module
2.
1.
4 0.7 Nm
3.
4.
A0038224
