Mounting Deltabar PMD78B PROFINET with Ethernet-APL
26 Endress+Hauser
• Bracket for wall and pipe mounting including retaining bracket for pipe mounting and
two nuts
• The material of the screws used to secure the device depends on the order code
For technical data (e.g. materials, dimensions or order numbers), see the accessory
document SD01553P.
5.2.7 Wall and pipe mounting with a manifold (optional)
• Mount the device on a shutoff device, e.g. manifold or shutoff valve
• Use the bracket provided. This make device removal easier.
For technical data (e.g. materials, dimensions or order numbers), see the accessory
document SD01553P.

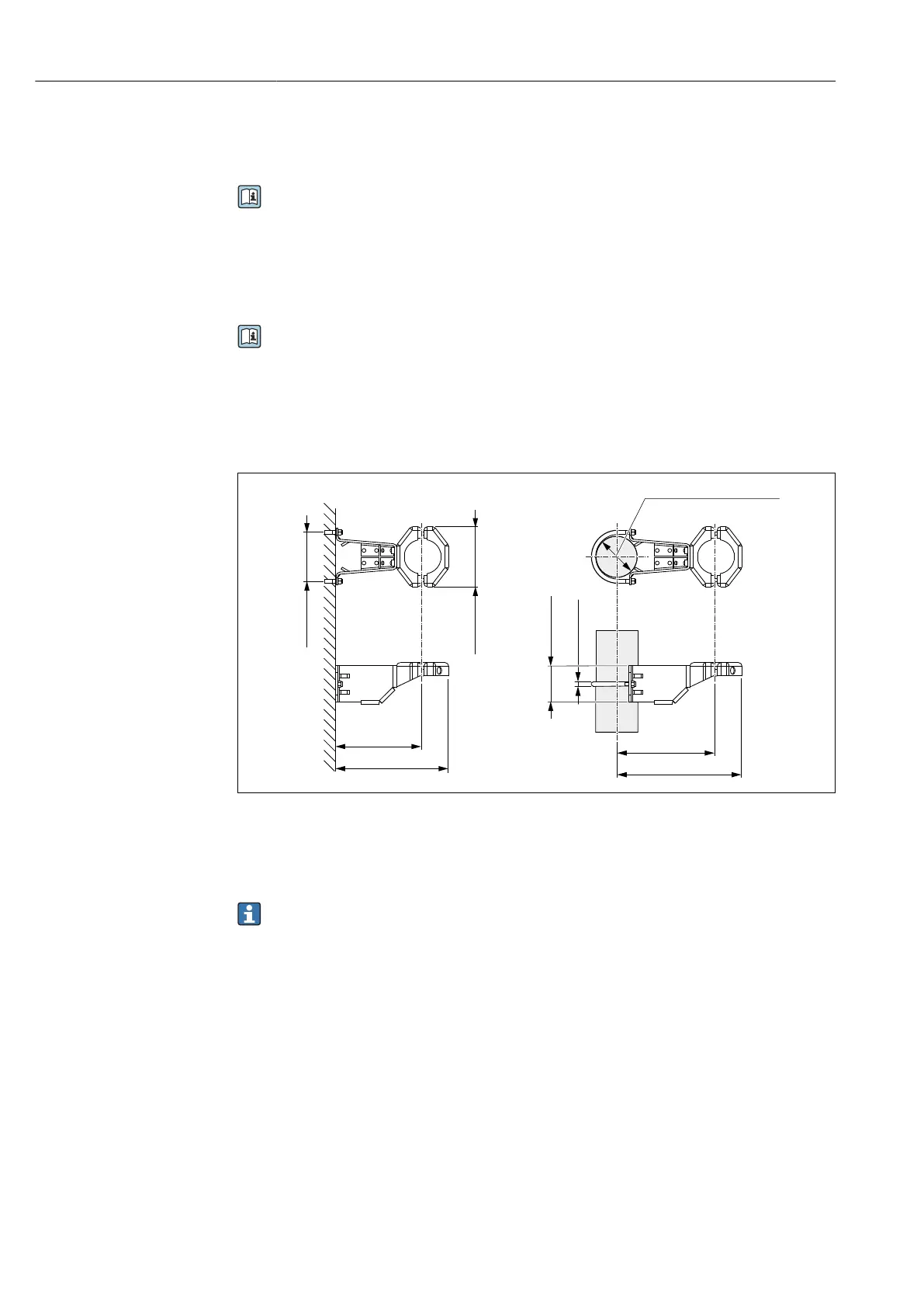

5.2.8 Mounting bracket for separate housing
The separate housing can be mounted on walls or pipes (for pipes with a diameter of 1 ¼"
to 2") using the mounting bracket.
122 (4.8)
52 (2.05)
86 (3.39)
70 (2.76)
140 (5.51)
158 (6.22)
175 (6.89)
ø6 (0.24)
ø42...60 (1.65...2.36)
A0028493
Unit of measurement mm (in)
Ordering information:
Can be ordered as a separate accessory, part number 71102216
The mounting bracket is included in the delivery if you order the device with a
separate housing.
When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at
least 5 Nm (3.69 lbf ft).
