Technical data iTEMP TMT71/72
Electromagnetic compatibility in accordance with all the relevant requirements of the
IEC/EN 61326 series and NAMUR Recommendation EMC (NE21). For details, refer to the
Declaration of Conformity. All tests were passed both with and without ongoing digital
Maximum measured error <1% of measuring range.
Interference immunity as per IEC/EN 61326 series, industrial requirements
Interference emission as per IEC/EN 61326 series, Class B equipment
Measuring category Measuring category II as per IEC 61010-1. The measuring category is provided for
measuring on power circuits that are directly connected electrically with the low-voltage
Degree of contamination Pollution degree 2 as per IEC 61010-1.
13.6 Mechanical construction
Design, dimensions Dimensions in mm (in)
Head transmitter
B
A0036303

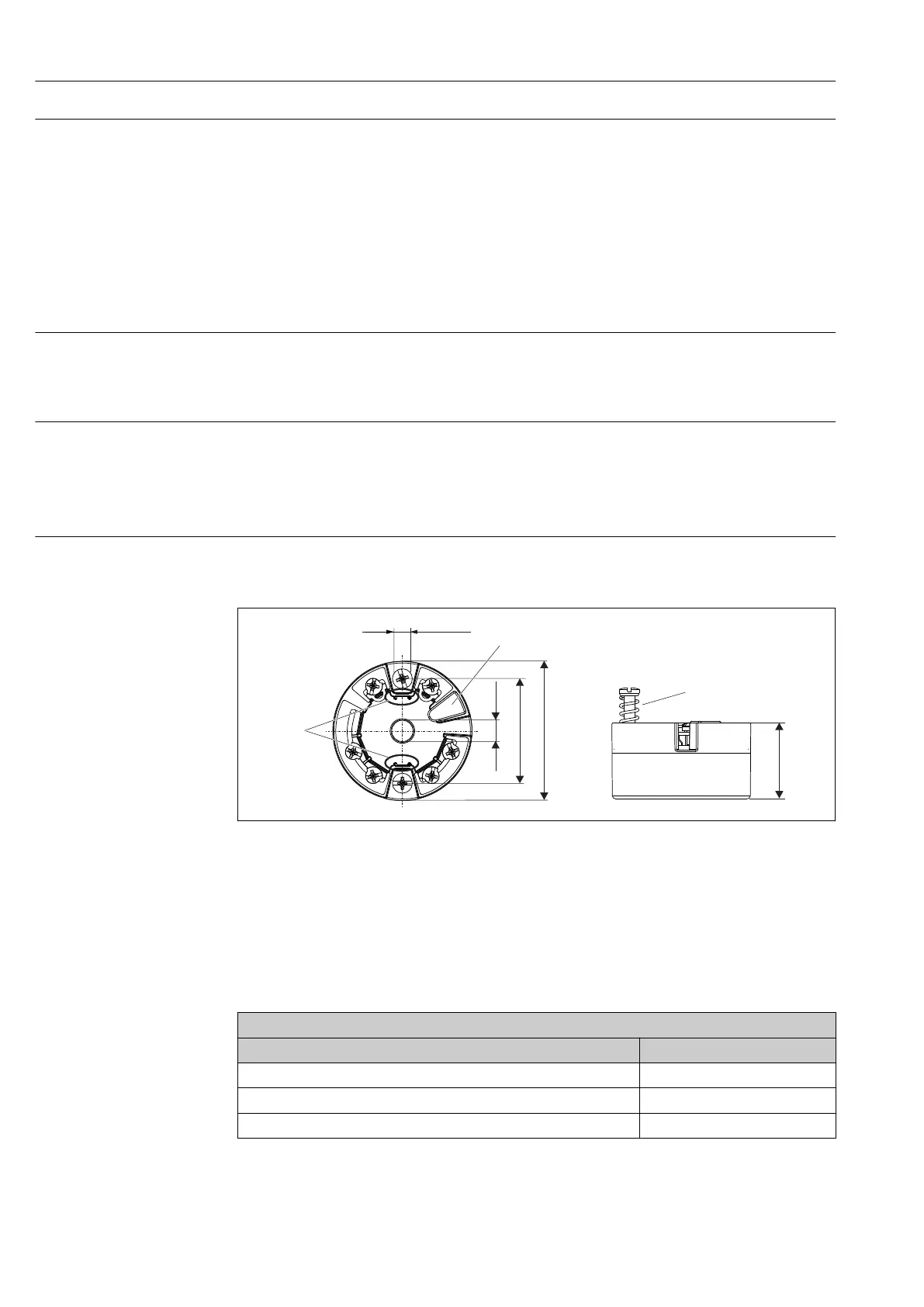

14 Version with screw terminals
A Spring travel L ≥ 5 mm (not for US - M4 securing screws)
B Mounting elements for attachable measured value display TID10
C Service interface for connecting measured value display or configuration tool
Field housing
All field housings have an internal geometry in accordance with DIN EN 50446, form B
(flat face). Cable glands in the diagrams: M20x1.5
Maximum ambient temperatures for cable glands
Type Temperature range
Polyamide cable gland ½" NPT, M20x1.5 (non-Ex) –40 to +100 °C (–40 to 212 °F)
Polyamide cable gland M20x1.5 (for dust ignition-proof area) –20 to +95 °C (–4 to 203 °F)
Brass cable gland ½" NPT, M20x1.5 (for dust ignition-proof area) –20 to +130 °C (–4 to +266 °F)
