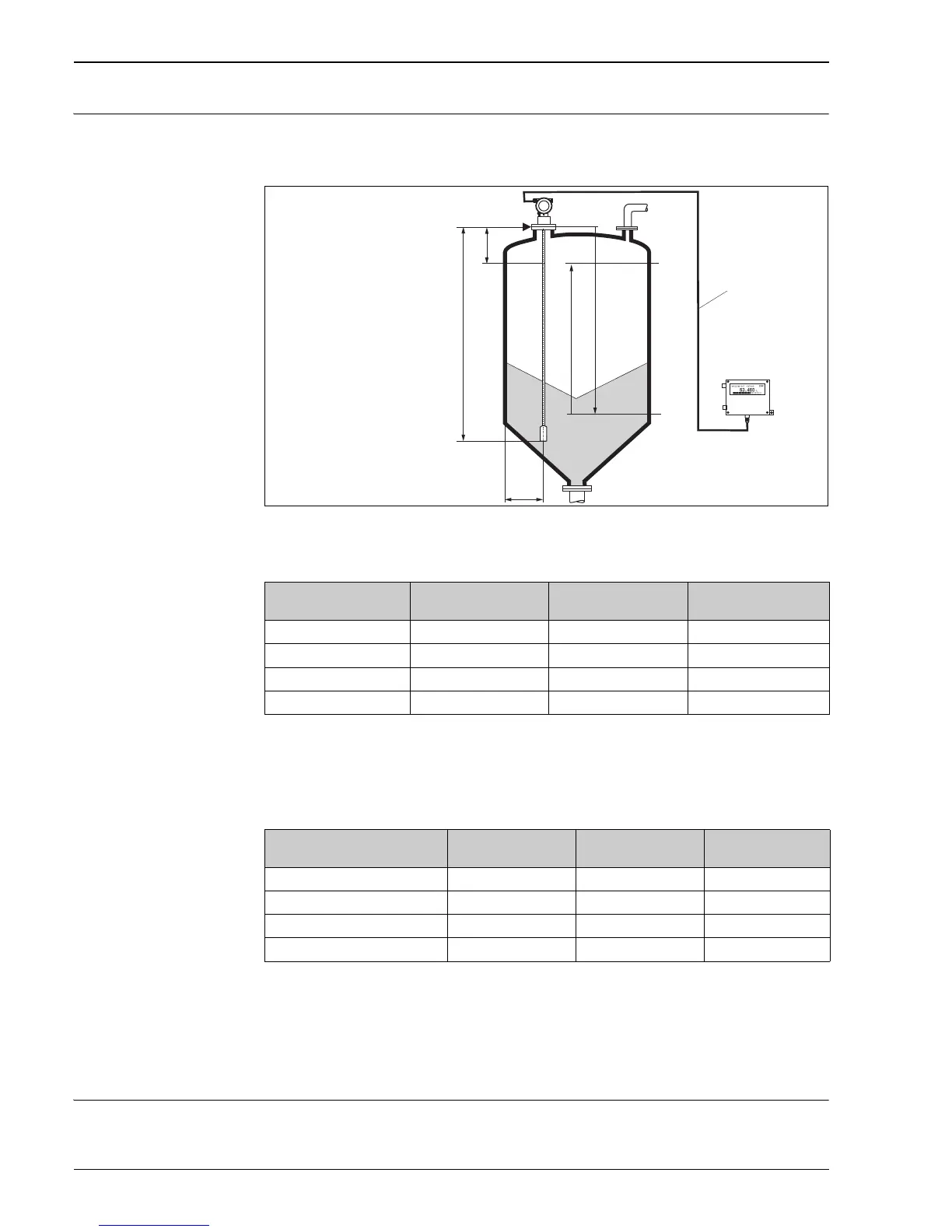

Blocking distance The upper blocking distance (= UB) is the minimum distance from the reference point of the measurement
(mounting flange) to the maximum level. At the lowest part of the probe an exact measurement is not possible,
see "Performance characteristics", → ä 20.
L00-FMP4xxxx-17-00-00-en-006
Reference point of the measurement, details → ä 43
Blocking distance and measuring range:
Note!
Within the blocking distance, a reliable measurement can not be guaranteed.
Used frequency spectrum 100 MHz to 1.5 GHz
100%
0%
F
E
UB
B
LN
reference point of
measurement
max. 20 m /67 ft
remote display
FHX 40
F = measuring span
E = empty distance (= zero)
UB = upper blocking distance
LN = probe length
B = minimum distance of the probe
to the container wall
FMP40
LN [m]
min
LN [m]
max
UB [m]
min
Rope probe 135
1)
1) Larger measuring range available on request.
0.2
2)
2) The indicated blocking distances are preset. At media with DC > 7, the upper blocking distance UB can be reduced
for rod and rope probes on 0.1 m. The upper blocking distance UB can be entered manually.
6 mm rod probe 0.3 2 0.2
2)
16 mm rod robe 0.3 4 0.2
2)
Coax probe 0.3 4 0
FMP40 (interface)
LN [m]
min
LN [m]
max
UB [m]
min
Coax probe 0.3 4 0
16 mm rod probe in the bypass 0.3 4 0.1
1)
1) The indicated blocking distances are preset. The upper blocking distance UB can be entered manually.
6 mm rod probe in the bypass 0.3 2 0.1
1)
Rope probe in free field
2)
2) Measurements in free field available on request.
0.3 10
3)
3) Larger measuring range available on request.
0.1
1)
