Levelflex M FMP40
16 Endress+Hauser

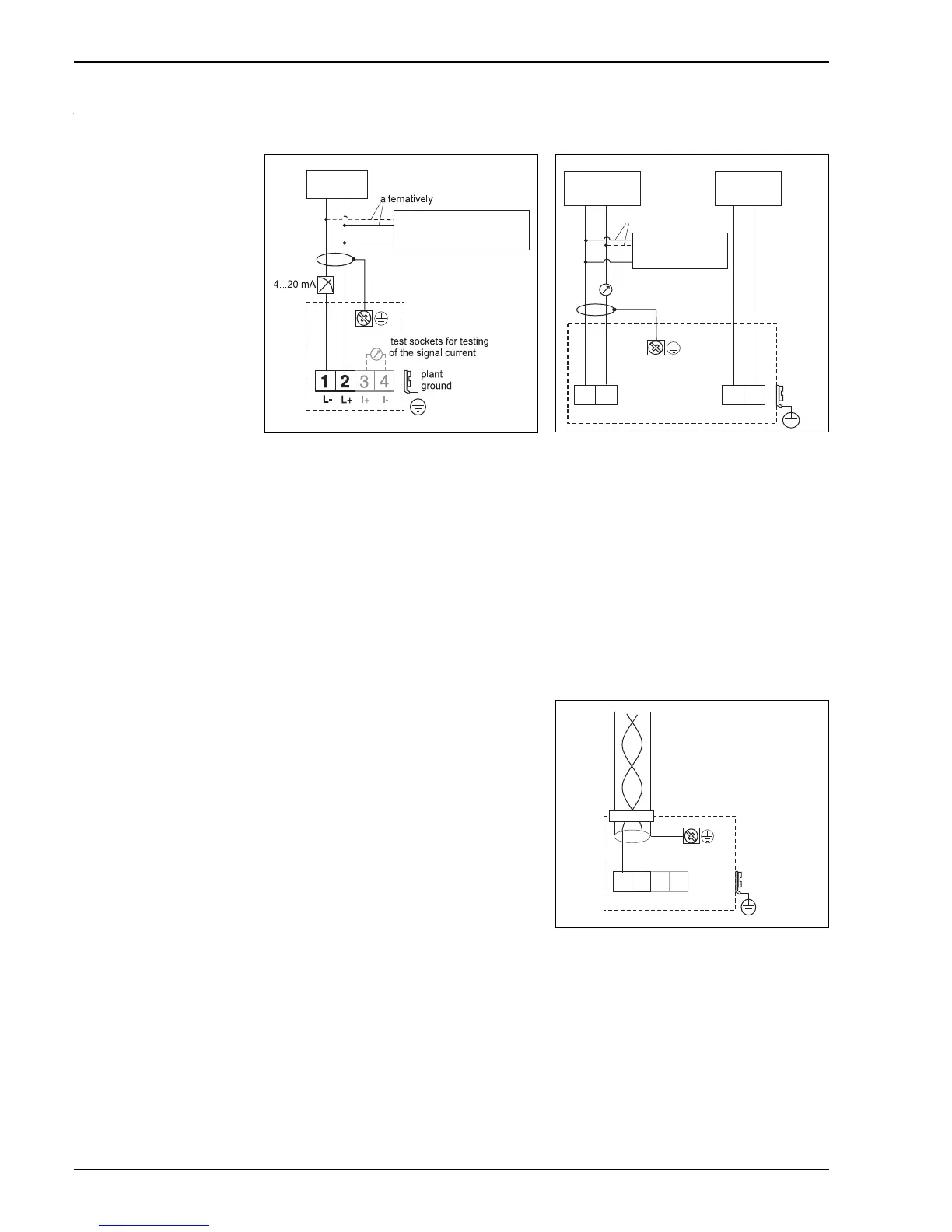

Terminal assignment
Note!
If 4-wire for dust-Ex-applications is used, the current output is intrinsically save.
Connect the connecting line to the screw terminals in the terminal compartment.
Cable specification:
A standard installation cable is sufficient if only the analog signal is used. Use a shielded cable when working
with a superimposed communications signal (HART).
Note!
• Protective circuitry against reverse polarity, RFI and over-voltage peaks is built into the device (see also
TI00241F/00/EN "EMC Test Procedures").
• See TI00402F/00/EN for connection to Tank Side Monitor NRF590.
2-wire, 4 to 20 mA with HART 4-wire, 4 to 20 mA active with HART
L00-FMxxxxxx-04-00-00-en-015
L00-FMxxxxxx-04-00-00-en-011
PROFIBUS PA
The digital communication signal is transmitted to the
bus via a 2-wire connection. The bus also provides the
auxiliary energy.
For further information on the network structure and
grounding and for further bus system components
such as bus cables, see the relevant documentation,
e.g. Operating Instructions BA034S/04/EN
"Guidelines for planning and commissioning
PROFIBUS DP/PA" and the PNO Guideline.
Cable specification:
Use a twisted, shielded two-wire cable, preferably
cable type A.
L00-FMxxxxxx-04-00-00-en-022
Note!
For further information on the cable specifications, see Operating Instructions BA034S/04/EN
Guidelines for planning and commissioning PROFIBUS DP/PA", PNO Guideline 2.092 "
PROFIBUS PA User and Installation Guideline" and IEC 61158-2 (MBP).
