Endress+Hauser Profi Bus Levelflex M FMP40 Technical Information

Levelflex M FMP40
48 Endress+Hauser
Material
(in contact with process)
Standard variant

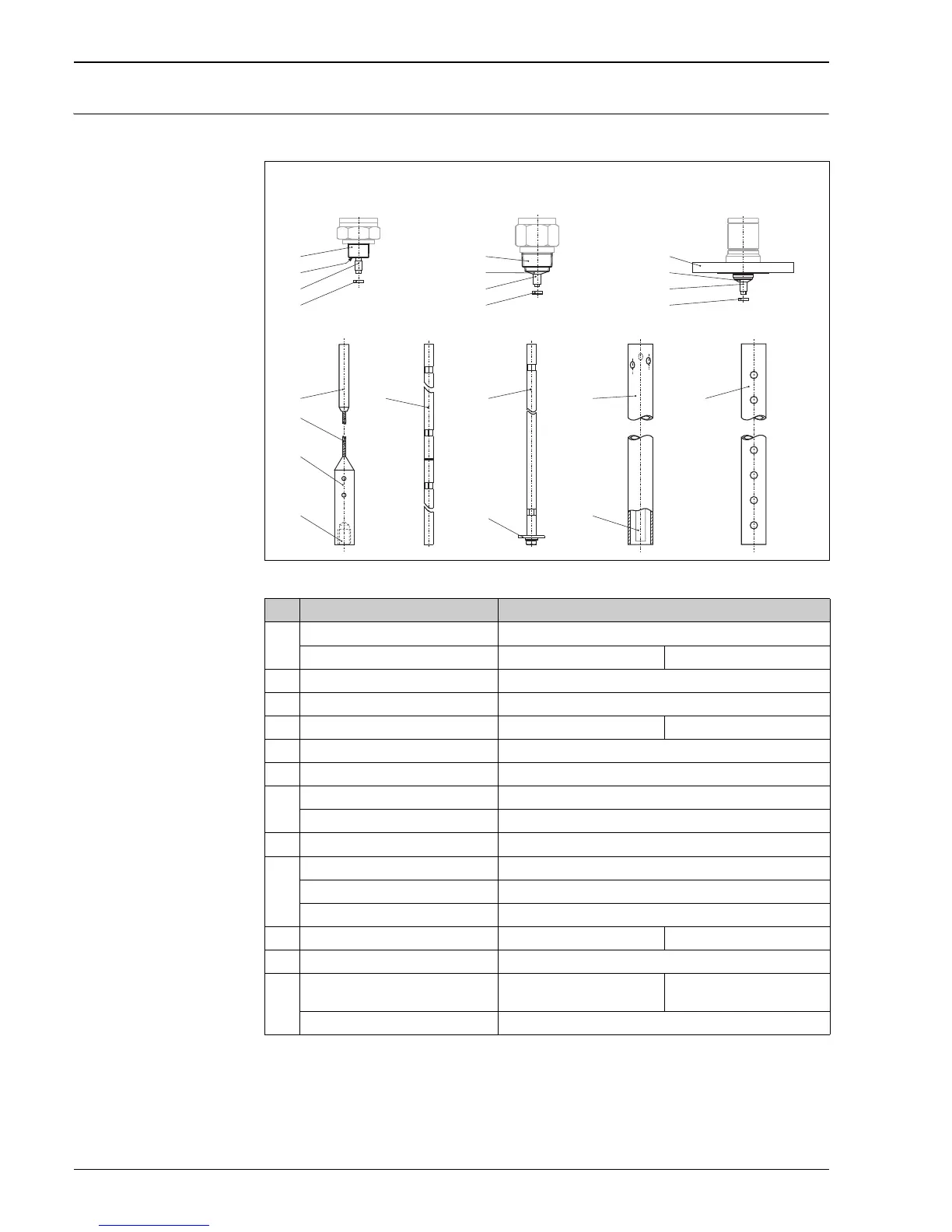

L00-FMP40xxx-16-00-00-en-001
Pos. Part Material
1
Counter nut 316L (1.4435)
Inner conductor Rod/Rope: 318LN (1.4462) Coax: 316L (1.4435)
2 Process connection See Ordering information
3 Nord-lock washer 1.4547
4 Insulation sleeve 3/4": PPS-GF40 1-1/2": TFM1600
5 Press in sleeve 316L (1.4404/1.4435)
6 Rope 316 (1.4401)
7
Ballast weight 316L (1.4435)
Set screw A4-70
8Screw A2-70
9
Rod 316L (1.4404/1.4435)
Connecting bolt 318LN (1.4462)
Nord-lock washer 1.4547
10 Rod 3/4": 316L (1.4404) 1-1/2": 316L (1.4404/1.4435)
11 Centering of probe end Disk: 316L (1.4404); Screw: A4; Nordlock: 1.4547
12
Coax probe 316L (1.4435)
Interface measurement:
316L (1.4404)
Spacer PFA
Threadedconnection
G¾(¾BSP)
or ¾NPT
Rope probe Divisible probes Rod probe
Coax probe
Interface
measurement
Threadedconnection
G1½ (1½BSP)
or 1½NPT
Flange DN40 to 200
or equivalent
1
4
3
5
109
12
12
10
11
6
7
8
1
4
3
1
4
3
2
22
