Endress+Hauser Profi Bus Levelflex M FMP40 Technical Information

Levelflex M FMP40
Endress+Hauser 17

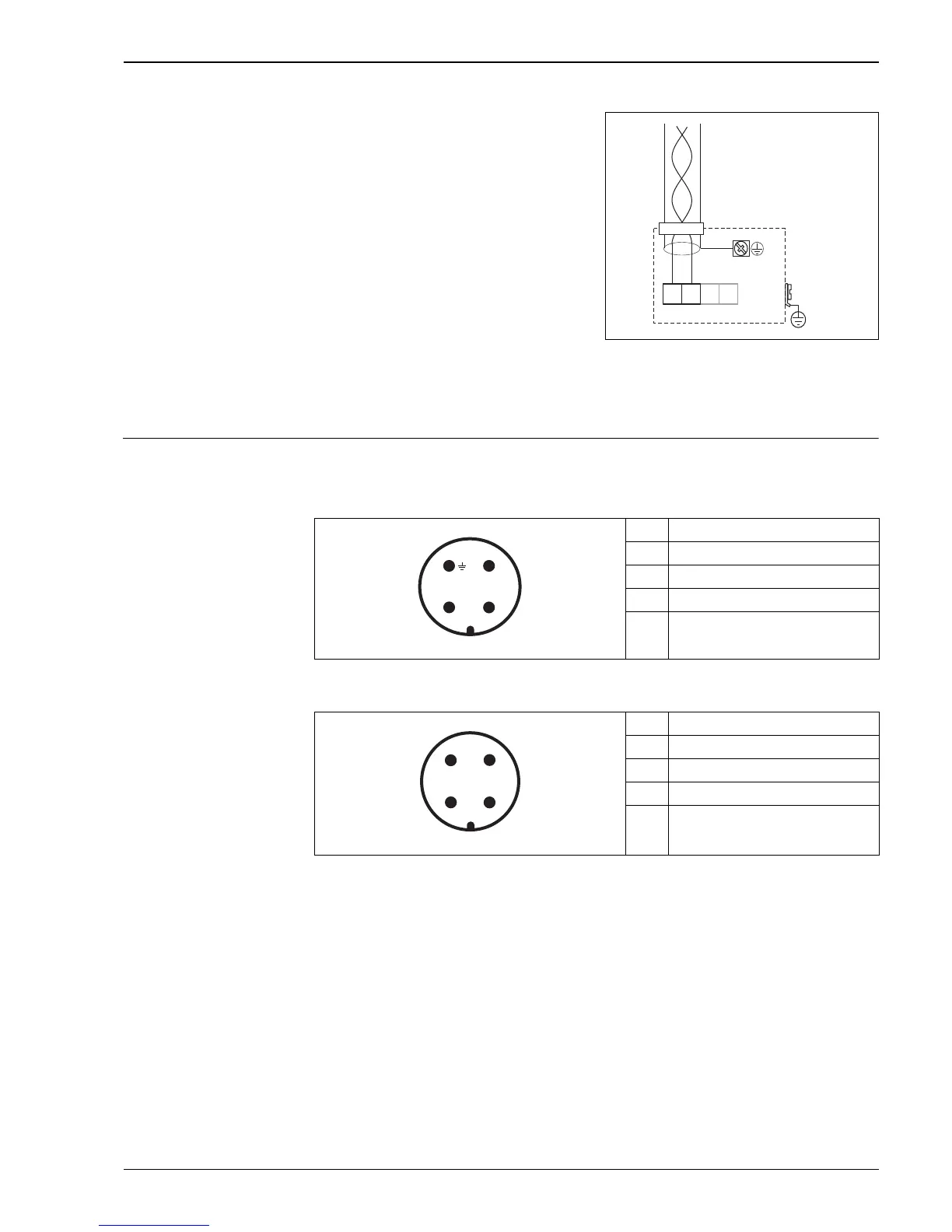

Connector For the versions with a connector M12 or 7/8", the housing does not have to be opened for connecting the
signal line.
PIN assignment for M12 connector
PIN assignment for 7/8" connector
FOUNDATION Fieldbus
The digital communication signal is transmitted to the
bus via a 2-wire connection. The bus also provides the
auxiliary energy. For further information on the
network structure and grounding and for further bus
system components such as bus cables, see the
relevant documentation, e.g. Operating Instructions
BA013S/04/EN "FOUNDATION Fieldbus
Overview" and the FONDATION Fieldbus Guideline.
Cable specification:
Use a twisted, shielded two-wire cable, preferably
cable type A.
L00-FMxxxxxx-04-00-00-en-022
Note!
For further information on the cable specifications, see Operating Instructions BA013S/04/EN
"FOUNDATION Fieldbus Overview", FONDATION Fieldbus Guideline and IEC 61158-2 (MBP).
3
4
1
2
+–
plant
ground
A0011175
PIN Meaning
1 Signal +
2 Not assigned
3 Signal –
4Earth
A0011176
PIN Meaning
1 Signal –
2 Signal +
3Shield
4 Not assigned
21
3
4
+
–
nc
2
1
4
3
