Levelflex M FMP40
Endress+Hauser 37

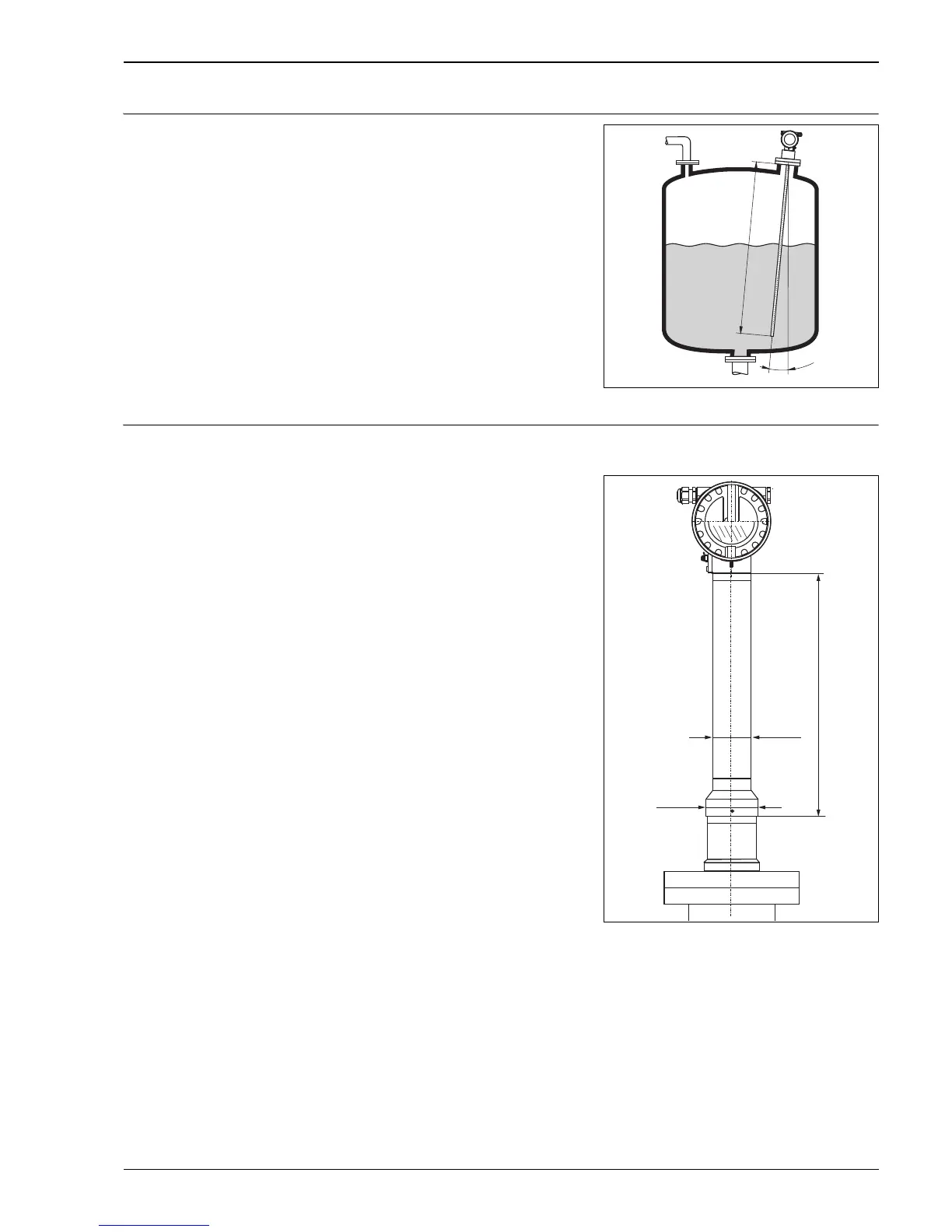

Installation at an angle
Installation for difficult-to-
access process connections
For tight spaces or temperatures above that in the graphic (→ ä 40), the electronics housing can be ordered
with distance pipe or connecting cable (separate housing).
• For mechanical reasons, the probe should be
installed as vertically as possible.
• With inclined installations the probe length has to
be adjusted in dependence to the installation angle.
– up to 1 m = 30°
– up to 2 m = 10°
– up to 4 m = 5°.
L00-FMP4xxxx-17-00-00-en-048
Installation with spacer tube
When mounting please observe engineering hints
(→ ä 22) the following points:
• After mounting, the housing can be turned 350° in
order to make it easier to access the display and the
connection compartment.
• The max. measuring range is reduced to 34 m.
L00-FMP4xxxx-17-00-00-en-014
