Endress+Hauser SpectraSensors SS2100 Safety Manual

Maintenance and Service
Safety Manual 5
–3
.
Table 5-1 Fuse specifications (Continued)
Drawing Reference Voltage Description Rating
Figure
5–2
F1
24 VDC
1 Solenoid, Miniature Fuse,
5 x 20 mm, Time Delay
250 VAC
0.25 A
2 Solenoid, Miniature Fuse,
5 x 20 mm, Time Delay
250 VAC
0.4 A
3 Solenoid, Miniature Fuse,
5 x 20 mm, Time Delay
250 VAC
0.8A
F2 Miniature Fuse, 5 x 20 mm,
Time Delay
250 VAC
0.8 A

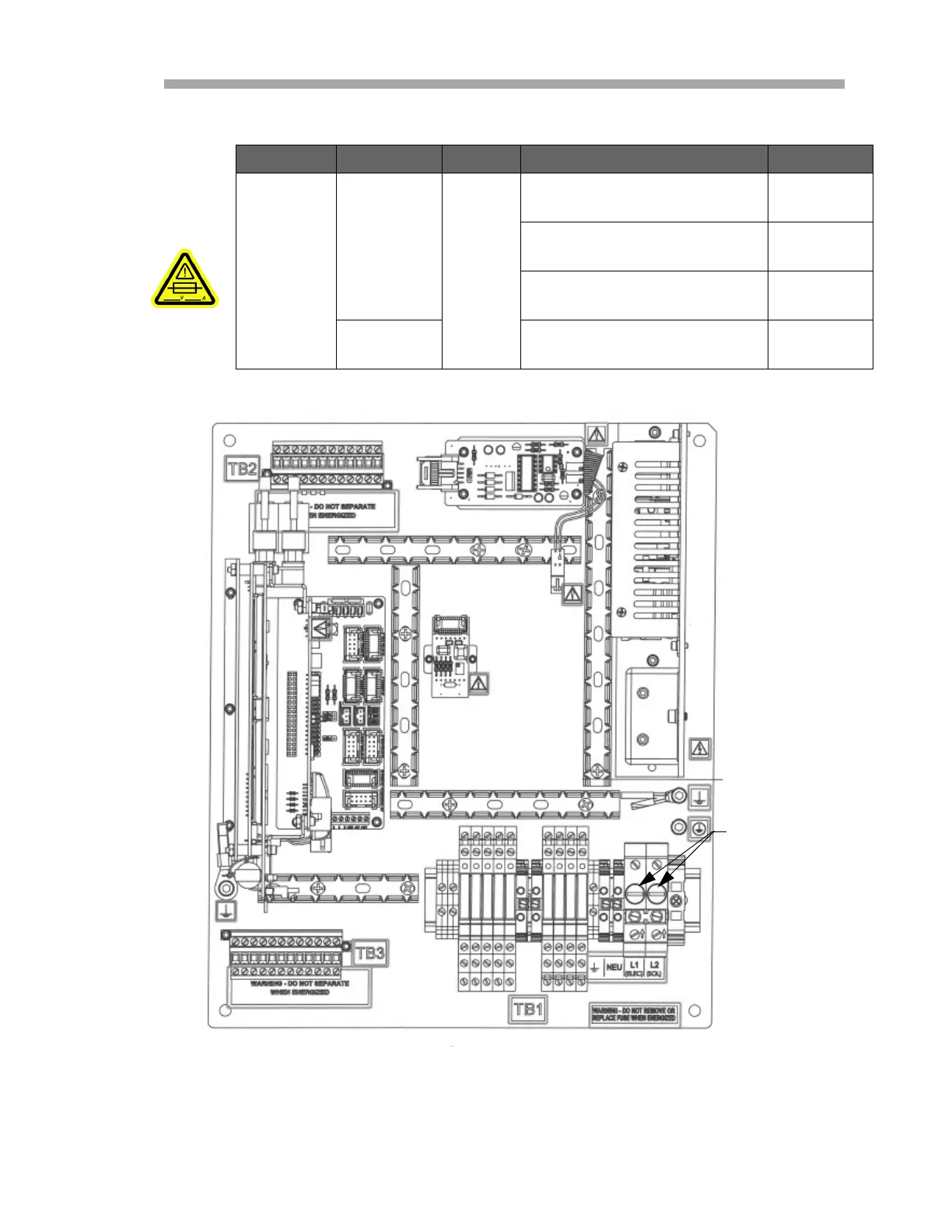

Figure 5–1 H
2
S analyzer electronics control
board (AC) showing fuses
FUSES
(F1, F2)
