SS2100 Analyzer
5–4 4900002253 rev. C 9-30-20
Replacing a Fuse
1. Power off the system and close the sample supply valve.
2. Open the electronics enclosure. Refer to Figure 5–1 (AC) or Figure
5–2 (DC) for fuse location
3. Using a flat-head screwdriver, remove the fuse screw turning
counterclockwise as shown in Figure 5–3 on page 5–5.
4. Remove the fuse cover and fuse.
5. Remove the fuse from the cover and replace with a new fuse as
shown in Figure 5–4 on page 5–5. Refer to Table 5-1 on page 5–2
for fuse specifications.

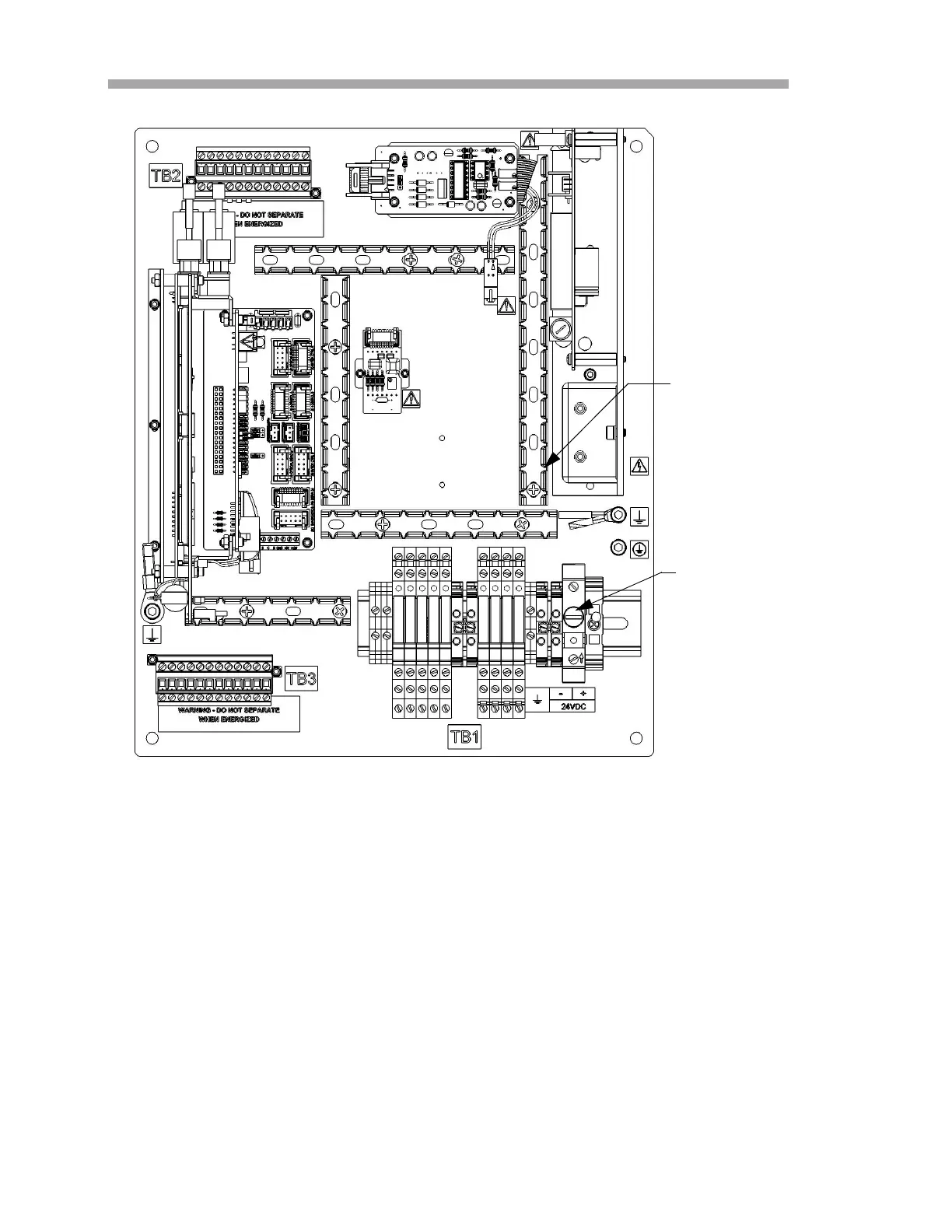

Figure 5–2 H
2
S analyzer electronics control
board (DC) showing fuses
FUSE (F1)
FUSE (F2)
