Installing and Connecting a Redundant Power System
2-30 Installation

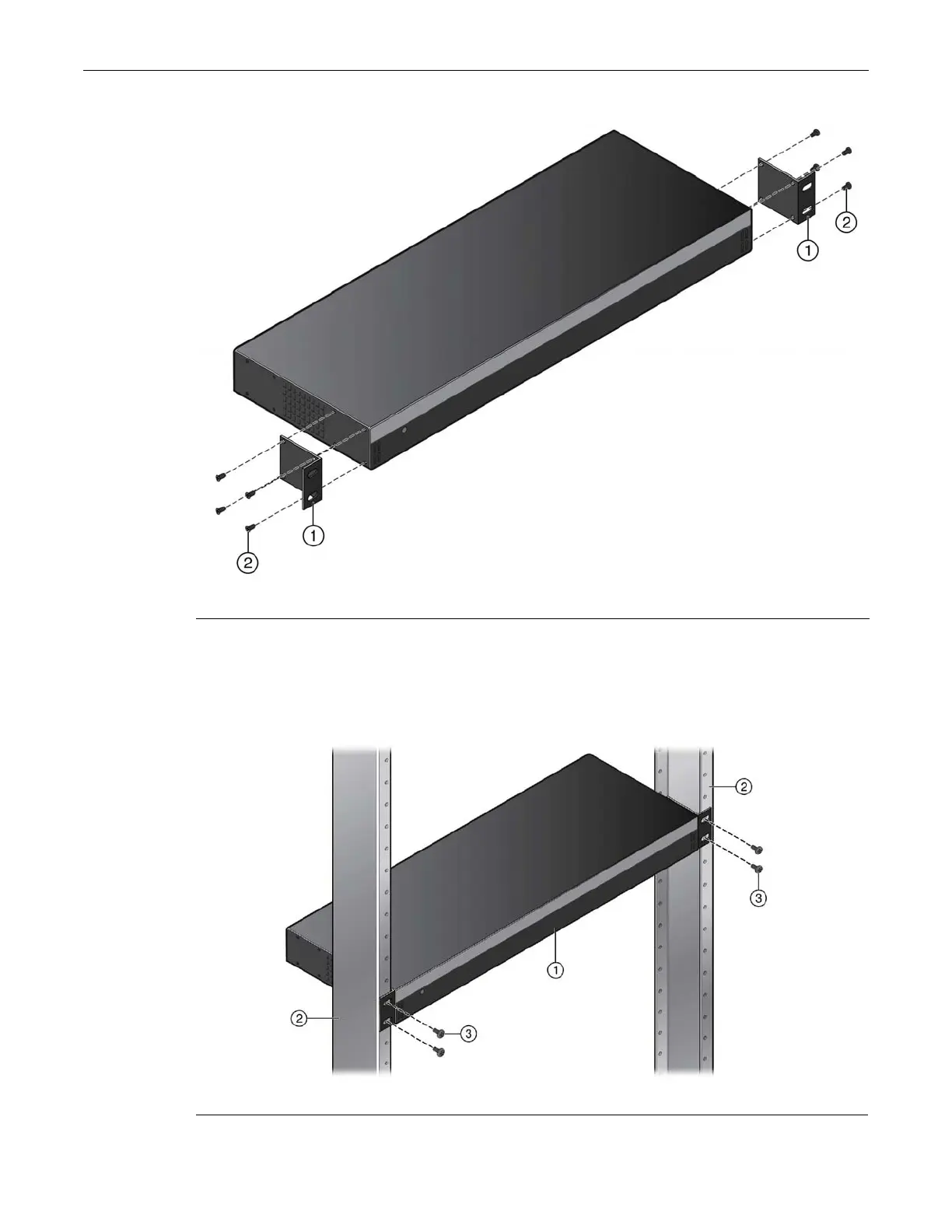

Figure 2-24 Attaching the Rackmount Brackets
2. With the mounting brackets attached, position the 08A-RPS-500 between the vertical frame
members of the 19-inch rack as shown in Figure 2-25. Then fasten the 08A-RPS-500 securely to
the frame using four customer-supplied rack screws.
Figure 2-25 Fastening the 08A-RPS-500 to the Rack
1 Rackmount brackets (2) 2 M3 x 6 mm flathead screws (8)
1 08A-RPS-500 2 Rails of 19-inch rack 3 Mounting screws
