Enterasys SecureStack A2 A2H254-16 - Connecting a Fiber-Optic Cable Segment to MT-RJ Port

Connecting to the Network
3-24 Hardware Installation
2. InserttheMT‐RJcableconnectorintotheMT‐RJfrontpanelportuntilitclicksinto
place.

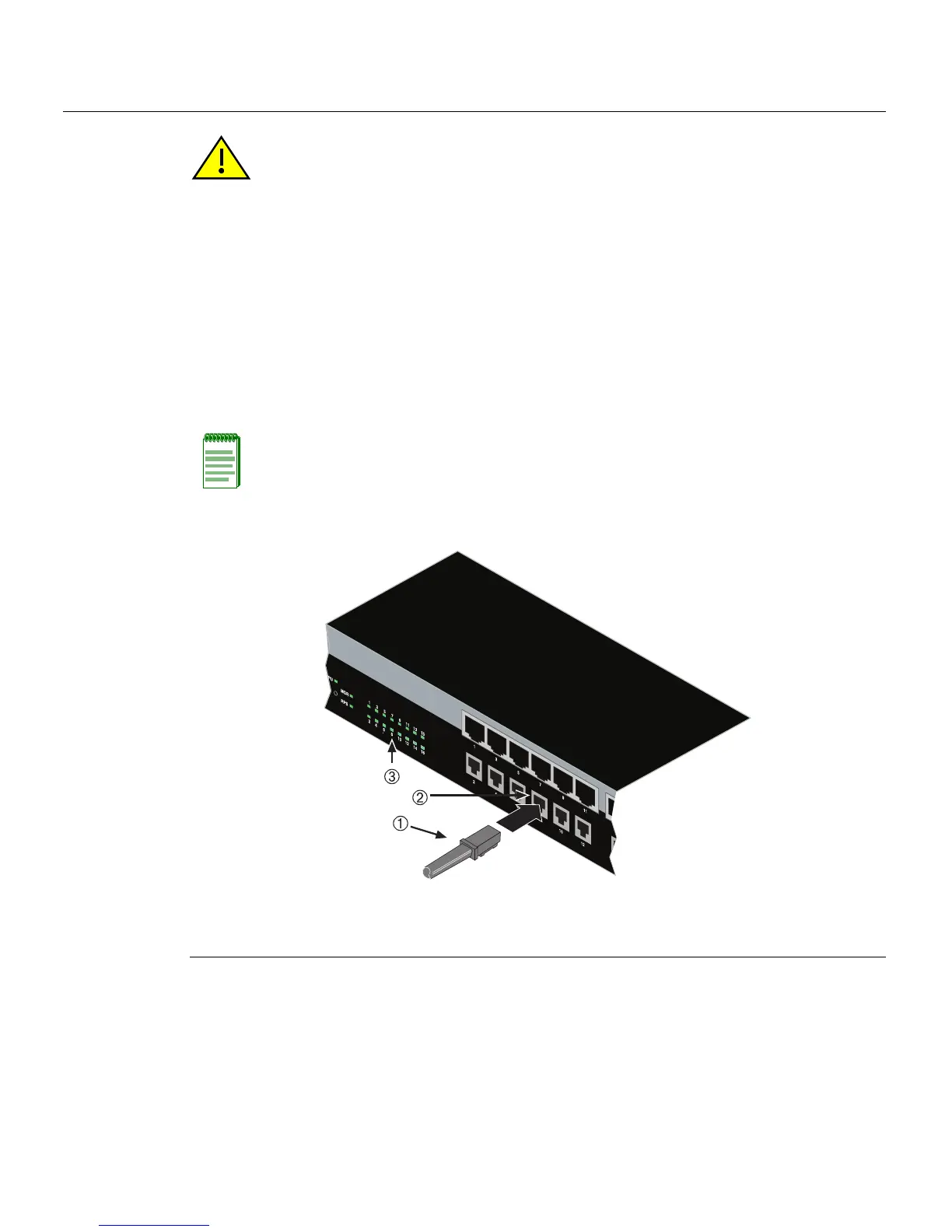

Figure 3-15 Connecting a Fiber-Optic Cable Segment to MT-RJ Port
Caution: Do not touch the ends of the fiber-optic strands, and do not let the ends come in
contact with dust, dirt, or other contaminants. Contamination of cable ends causes
problems in data transmissions. If the ends of the fiber-optic strands become
contaminated, use a canned duster to blow the surfaces clean. A cleaning swab saturated
with optical-grade isopropyl alcohol may also be used to clean the ends.
Precaución: No toque los extremos de los cables de fibra óptica y evite su contacto con el
polvo, la suciedad o con cualquier otro contaminante. Si los extremos de los cables se
ensucian, es posible que la transmisión de datos se vea afectada. Si nota que los
extremos de los cables de fibra óptica se ensucian, utilice aire comprimido para limpiarlos.
También puede limpiarlos con un estropajo embebido en alcohol isopropílico.
Note: To remove the MT-RJ cable connector, press on its release tab and pull it out of the
MT-RJ front panel port.
1 MT-RJ cable connector 3 Front panel port Link/Activity LED
2 MT-RJ front panel port
