39
IP2288EN
EN
AP

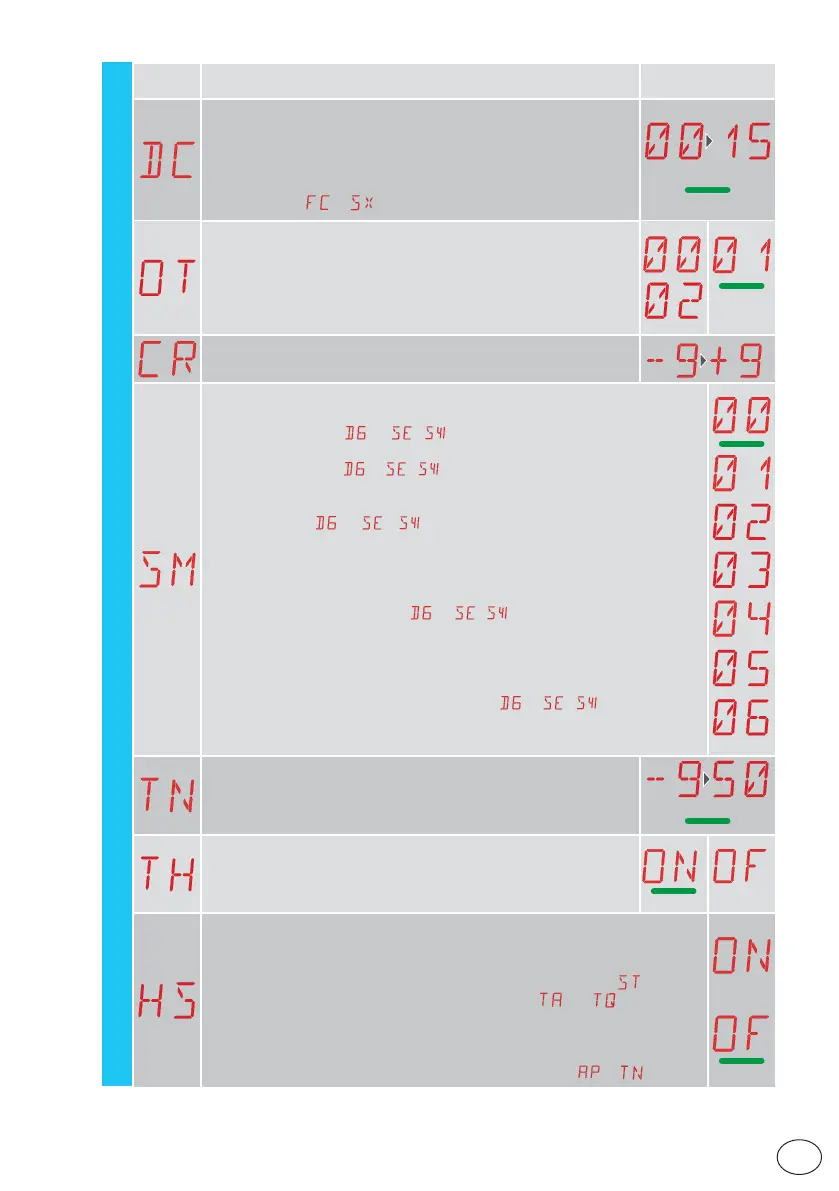

Display Description
Selections
available
DC - Setting of disengagement on stop during closure [mm]
Regulates the distance of the disengagement on the mechanical open-
ing stop.
00 - Disabled
99 - Maximum
NB: not active if
→
07
OT - Selection of type of obstacle identification
00 - Overcurrent or gate stopped
01 - Overcurrent
02 - Door stopped
NB: the obstacle identification for “door stopped” is faster but more
sensitive.
CR - Stroke estimate correction [%]
DO NOT USE (diagnostic purposes only)
SM - Selection of operating mode of device connected to terminals 1-6
00 - During the operation, the opening of the safety contact stops the movement
(with disengagement if
→ / ).
01 - During the operation, the opening of the safety contact stops the movement
(with disengagement if
→ / ). When the contact closes again, the opera-
tion is resumed.
02 - During the operation, opening of the safety contact stops the movement (with
disengagement if
→ / ). When the contact closes again, an opening
operation is performed.
03 - During the closing operation, the opening of the safety contact reverses the
movement. During the opening operation, the safety device is ignored.
04 - During the opening operation, the opening of the safety contact stops the
movement (with disengagement if
→ / ). When the contact closes again,
the opening operation is resumed. During the closing operation, the safety device
is ignored.
05 - During the closing operation, the opening of the safety contact stops and re-
verses the movement. During the opening operation, the opening of the safety con-
tact stops the movement (with disengagement if
→ / ).
06 - During a maneuver, the opening of the safety contact stops the movement.
When the contact closes again, automatic closing is disabled.
TN - Setting of intervention temperature for the NIO electronic anti-
freeze system and automatic HS ramps [°C]
This value does not refer to the ambient temperature, but to the inter-
nal control panel temperature.
20
TH - High temperature protection enable.
If ON, the automatic reclosing time is extended when the maximum
switchboard temperature is reached. If the condition persists, all the
controls are disabled.
HS - Automatic ramp adjustment
ON - Enabled
OF - Disabled
When enabled (ON), at low ambient temperatures the start time
increases
up to the maximum value and the acceleration time
and diminishes to
the minimum value.
NB: for correct operation, the control panel must be exposed to the same ambi-
ent temperature as the motors.
The intervention temperature can be set with the selection
→ .
