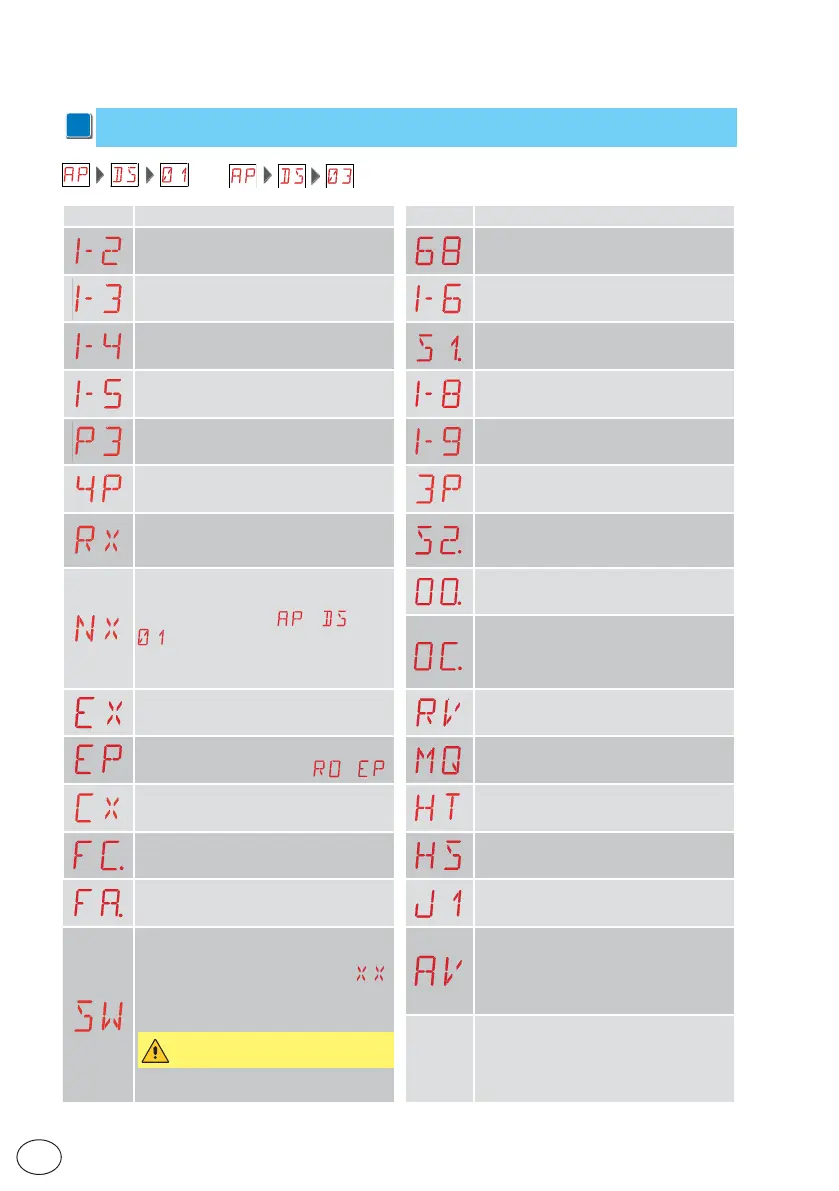

16.2 Display of safety devices and commands
i
NB: the safety device and command display mode is only visible with Display visualisation
mode set at 01 or 03.
Display Description Display Description
1-2 - Automatic closing activation com-
mand
68 - Selection of the device simultane-
ously connected to terminals 1-6 and 1-8
1-3 - Opening command 1-6 - Safety device with opening and
closing stop
1-4 - Closing command S1. - Detection of stop during closure
1-5 - Step-by-step command 1-8 - Safety with closing reversal
P3 - Partial opening command. 1-9 - STOP command
4P - Closing command with operator
present
3P - Opening command with operator
present
RX - Radio reception (of any memo-
rised key of a transmitter present in the
memory)
S2. - Detection of stop during opening
NX - Radio reception (of any non-mem-
orised key)
NB: with the selection
→ →
, it is also visualised when a com-
mand is received from a non-stored
transmitter.
OO.- Obstacle detection area reached
during opening
OC. Obstacle detection area reached
during closure
EX - Rolling-code radio reception out of
sequence
RV - Enabling/disabling of built-in radio
receiver via RDX
EP - Radio reception not complying with
the parameter configuration
→
MQ - Learning operation of mechanical
end stops in progress
CX - Command received from AUX1 board HT - Heating of the motors (NIO function)
in progress
FC. - Closure limit switch HS - Sharp NIO start-up
FA. - Opening limit switch JR1 - Variation of the JR1 jumper status
SW - Release door open.
When the release door is closed, the con-
trol panel performs a RESET (alarm ).
It is possible to ignore the reset by holding
down the ESC & DOWN keys for 3 seconds
until the SW stops flashing.
If the RESET is disabled, make sure
not to move the gate manually.
NB: If you return to the menu, the reset is
reactivated.
AV - Function anti-violation.
