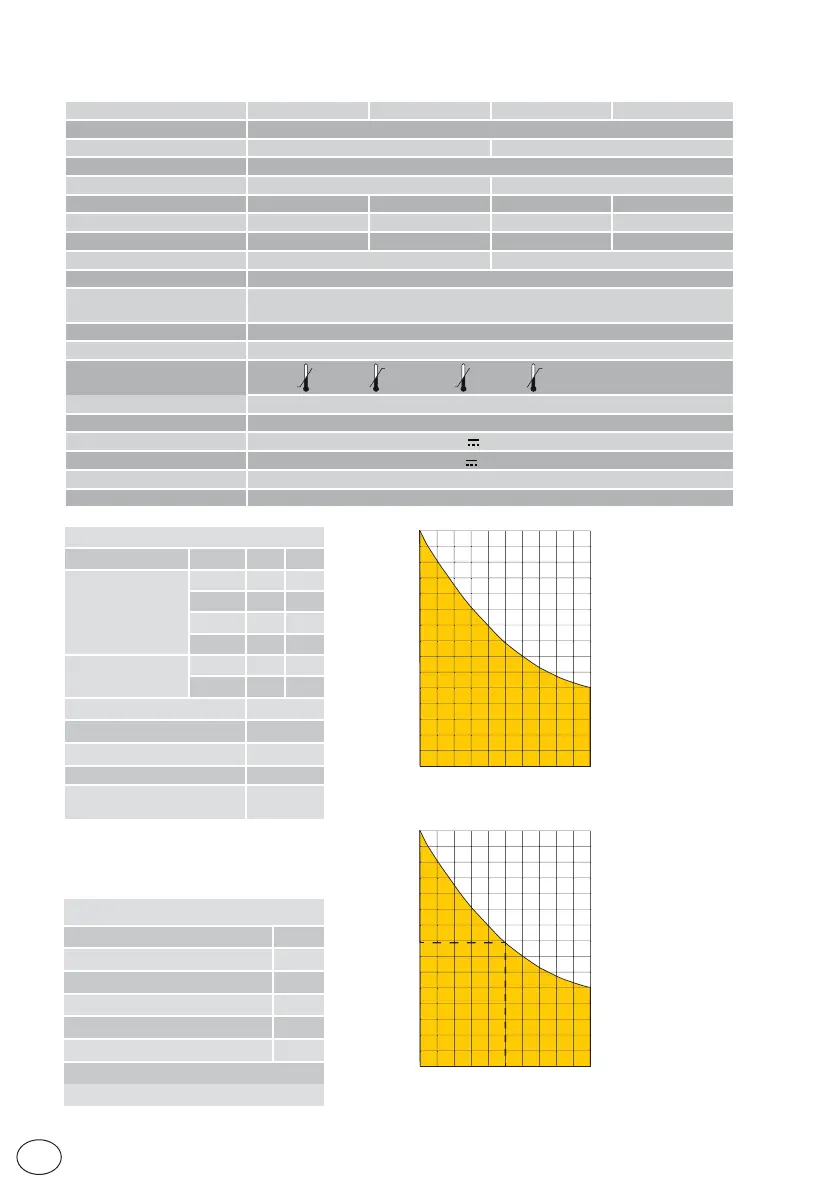

3. Technical specifications
Example of lifespan calculation for ION4
Gate wing weight>150Kg 10
Gate wing width> 4.5m 10
Dust 10
Safety edges installed 10
VA/VC > default 10
Total stress index 50
Estimated lifespan - 80,000 cycles
Estimated daily cycles 22 (for 10 years)
0
10
20
30
40
50
60 70
80
90
100
0
10.000
indice di gravosità
20.000
30.000
40.000
50.000
60.000
70.000
80.000
90.000
100.000
110.000
120.000
130.000
140.000
150.000
cicli
Index of conditioning factors
ION4 ION6
Gate wing weight
>150Kg 10 -
>200Kg 20 10
>300Kg 30 20
>400Kg - 30
Gate wing width
>4m 20 10
>8m - 20
Wheel diameter <100mm 10
Saline environment 10
Safety edge installed 10
R1/R2 > default 10
VA/VC > default
OC/CB < default
10
0
10
20
30
40
50
60 70
80
90
100
0
10.000
indice di gravosità
20.000
30.000
40.000
50.000
60.000
70.000
80.000
90.000
100.000
110.000
120.000
130.000
140.000
150.000
cicli
Index of conditioning factors
Index of conditioning factors
cycles
cycles
ION4 ION4J ION6 ION6J
Maximum stroke 12m
Maximum gate weight 400Kg 600Kg
Gate speed 0,1÷0,3 m/s
Thrust 200N nominal, 600N start-up 300N nominal, 800N start-up
Power supply 230 V~ 50/60Hz 120 V~ 50/60Hz 230 V~ 50/60Hz 120 V~ 50/60Hz
Power absorption 0,45A 0,9A 0,6A 1,2A
Fuse T1A F2A F1,6A F3,15A
Power 100 W 130 W
Intermittence 80 cycles/day, 30 continuous cycles
Lifespan
From 50,000 to 150,000 cycles, depending on the conditions indicated in table
(see the product lifespan charts)
Acoustic pressure LpA ≤ 70dB(A)
IP degree of protection 44
Usage temperature
-20°C +55°C ( -35°C +55°C with active NIO)
Product size 300 x 260 x 195
Control panel LCU48
Motor output 24V
10A max
Power supply to accessories 24V
0,3A max
Radio frequency 433,92 MHz
Storable radio codes 100 / 200 vedi RO → MU → 20/10
