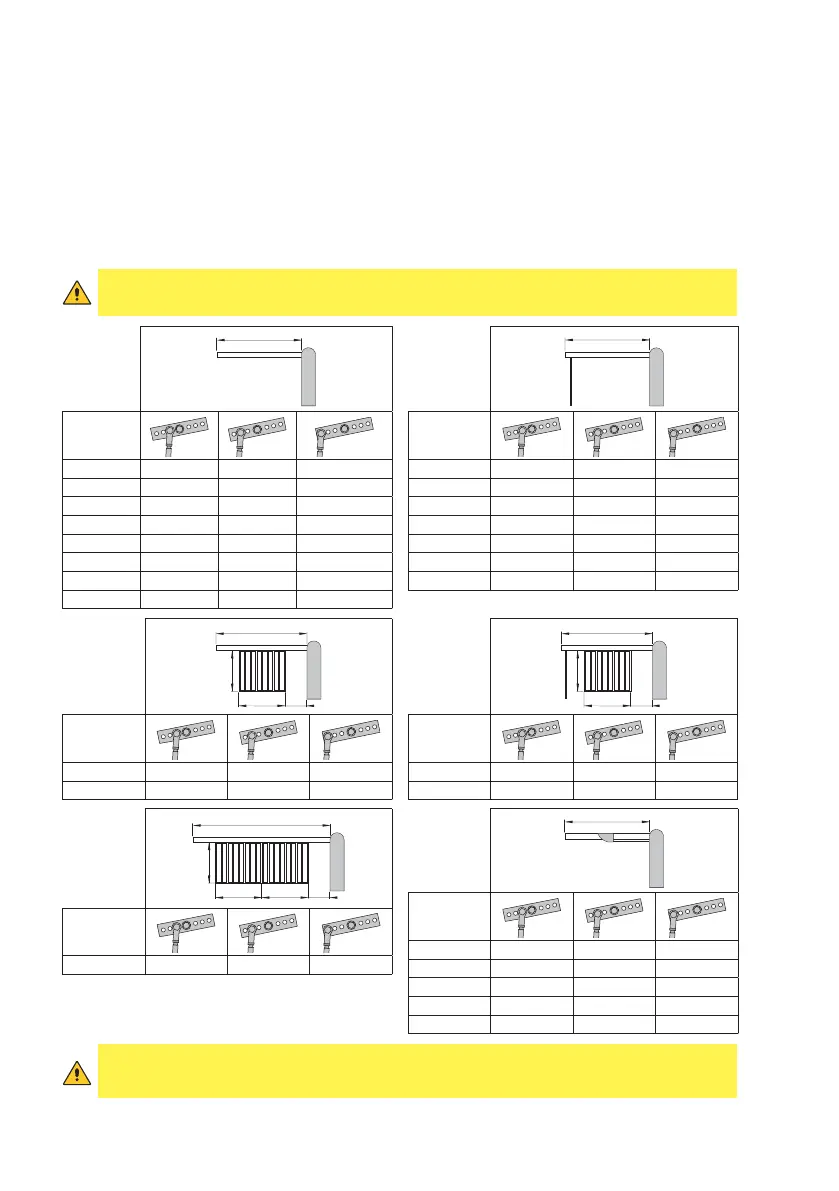

9. Bar balancing
- Release the automation as described on page 40 and place the bar in the vertical opening posi-
tion.
- Place the spring in the correct position depending on the choice of opening direction as described
on page 35.
- Using the nuts placed above the spring (see ref. [B] on page 35), compress the spring until the
bar is balanced at an angle of 5°-30° to the floor (in this position, the bar must be stationary or
point slightly upwards).
WARNING: compression of the spring must comply with measurement A indicated on page 35.
- Make sure that the bar remains still when in the open or closed position.
WARNING: never use the force of the motor to support the weight of the bar. Always use the
balancing spring.
WARNING: for PL≥4000 mm, you must use the fixed support QIKAF-QIKAFE or the mobile
support QIKAM. With the fixed support with the electromagnetic block QIKAFE installed, use
the configurations indicated for the mobile support QIKAM.
PL
560
2 m
min
500
PL
(mm)
2500 - 2999 / / QIKM2
3000 - 3600 QIKM3 / /
PL
PL
(mm)
1900 - 1999 / / QIKM1
2000 - 2299 QIKM2 / /
2300 - 2899 / QIKM2 /
2900 - 3199 / / QIKM2
3200 - 4099 QIKM3 / /
4100 - 4799 / QIKM3 /
4800 - 5800 / QIKM4 /
PL
560
2 m
min
500
2 m
PL
(mm)
4600 - 5000 / QIKM4 /
PL
560
2 m
min
500
PL
(mm)
2700 - 3399 QIKM3 / /
3400 - 3600 / QIKM3 /
PL
PL
(mm)
1300 - 1699 QIKM1 / /
1700 - 1999 / QIKM1 /
2000 - 2499 QIKM2 / /
2500 - 2999 / QIKM2 /
3000 - 3499 / / QIKM2
3500 - 4499 QIKM3 / /
4500 - 5199 / QIKM3 /
5200 - 5800 / QIKM4 /
PL
PL
(mm)
2000 - 2299 QIKM2 / /
2300 - 2899 / QIKM2 /
2900 - 3199 / / QIKM2
3200 - 4099 QIKM3 / /
4100 - 4450 / QIKM3 /
