10. Selecting opening direction

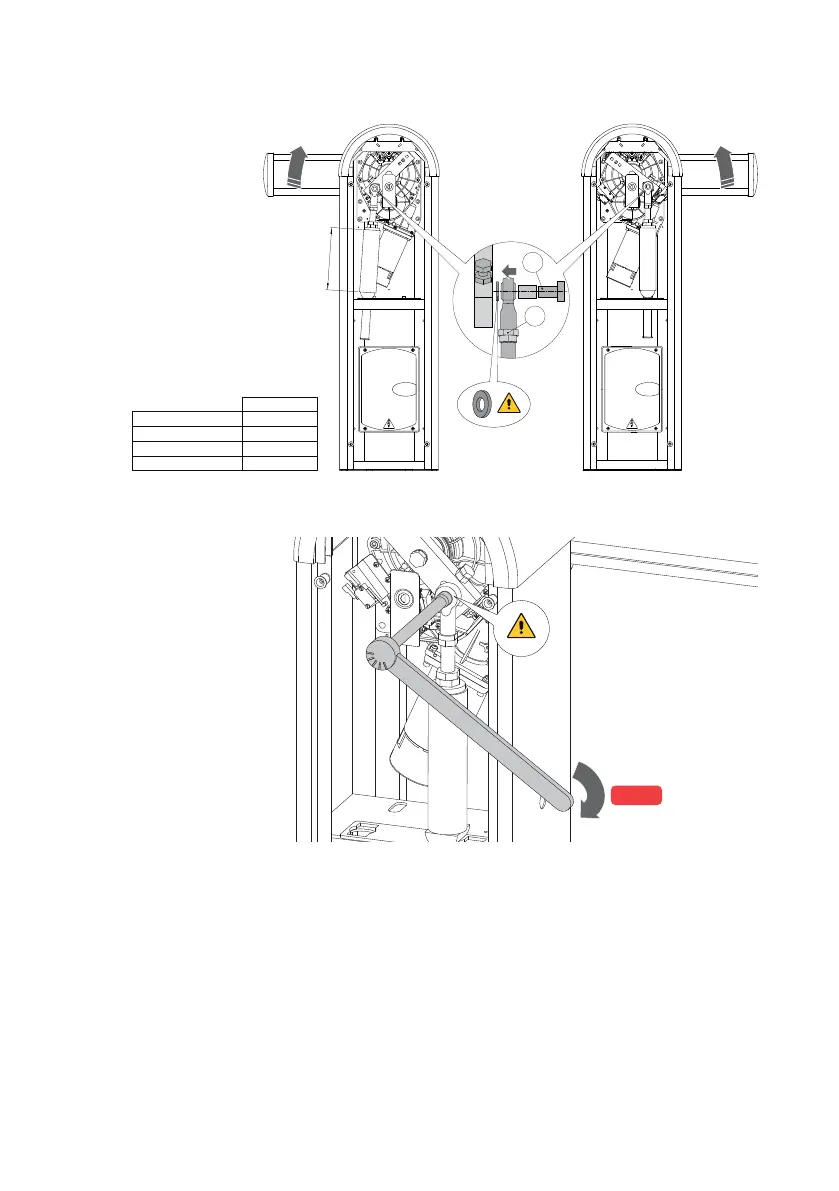

- Select the opening direction as shown in the figure.
- Mount the spring using the special screw M12x40 [C] with thread locking compound and tightly
fasten as shown in the figure.
- [QIK4E] Set the DIP2 on the control panel E1A as shown in the figure.
[QIK7EH] Set the DIP2A on the control panel EL31R as shown in the figure.
- Once you have installed the bar, adjust spring compression using the nuts [B] until measure-
ment A in the table is obtained.
85 Nm
Right opening
DIP2=OFF [E1A]
DIP2A=OFF [EL31R]
Left opening
DIP2=ON [E1A]
DIP2A=ON [EL31R]
A
QIKM1 (grey) ≥ 190 mm
QIKM2 (green) ≥ 190 mm
QIKM3 (red Ø38) ≥ 220 mm
QIKM4 (red Ø51) ≥ 220 mm
A
B
C
