Entrust Sigma DS3 Installation And Administrator's Guide

18 Printer Installation

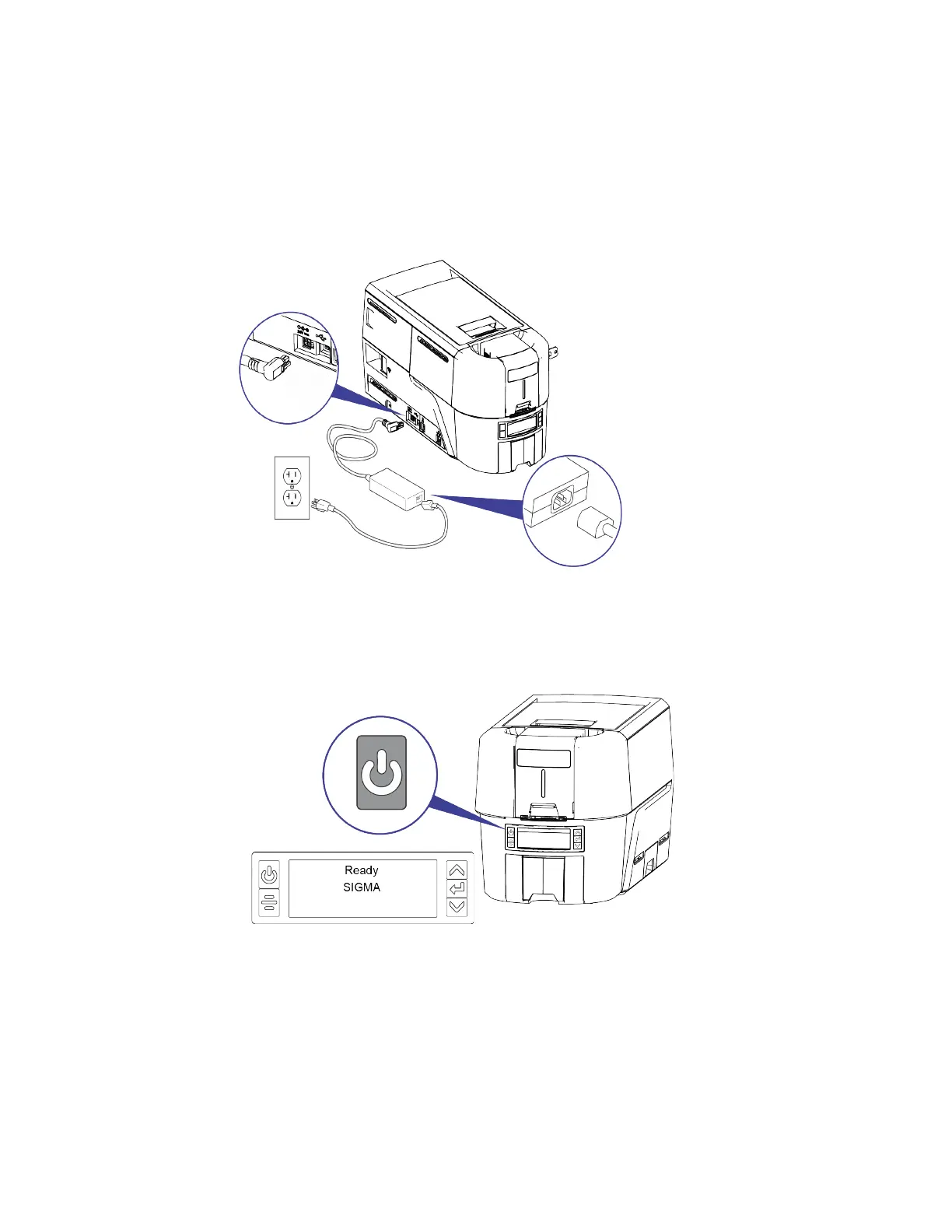

Plug in and Power On the Printer
1. Connect the printer power supply to the printer.
2. Connect the power cord to the power supply.
3. Connect the power cord to the facility power source.
4. Press the P
OWER button on the front of the printer. The front panel LCD displays Ready when
the printer is powered on and ready to print cards.

Entrust Sigma DS3 Specifications

General

Print Resolution	300 dpi
Card Capacity Input Hopper	100 cards
Card Capacity Output Hopper	25 cards
Power Supply	100-240 VAC, 50/60 Hz
Print Technology	Dye sublimation
Print Capabilities	Single or dual-sided
Card Thickness	0.010 inches to 0.040 inches
Supported Card Sizes	CR80 (85.6 mm x 54 mm)
Connectivity	USB and Ethernet
Operating System Support	Windows 7, 8, 10, Server 2008, 2012, 2016
Weight	5.49 kg (12.1 lbs)
Operating Temperature	15°C to 35°C (60°F to 95°F)
Operating Humidity	20% to 80% (non-condensing)
Print Speed	Up to 250 cards per hour (YMCKT)
