Entrust Sigma DS3 Installation And Administrator's Guide

44 Elements of Card Design
Single-Track Option (JIS)
The default data format for a single-track magnetic stripe module is the JIS (Japanese Industrial
Standard) Type II format.
The maximum number of characters for the JIS format is 69 characters. These characters can
include spaces, numeric characters (0–9), uppercase alphabetic characters (A–Z), lowercase
alphabetic characters (a–z), and the following special characters:
! " # $ % & ' ( ) * + , - . / : ; < = > ? @ [ ] ^ _ ~ { | } ~
A PC running a Japanese edition of a supported Windows operating system also supports
Japanese-language special characters and 55 Katakana characters. They include the following:

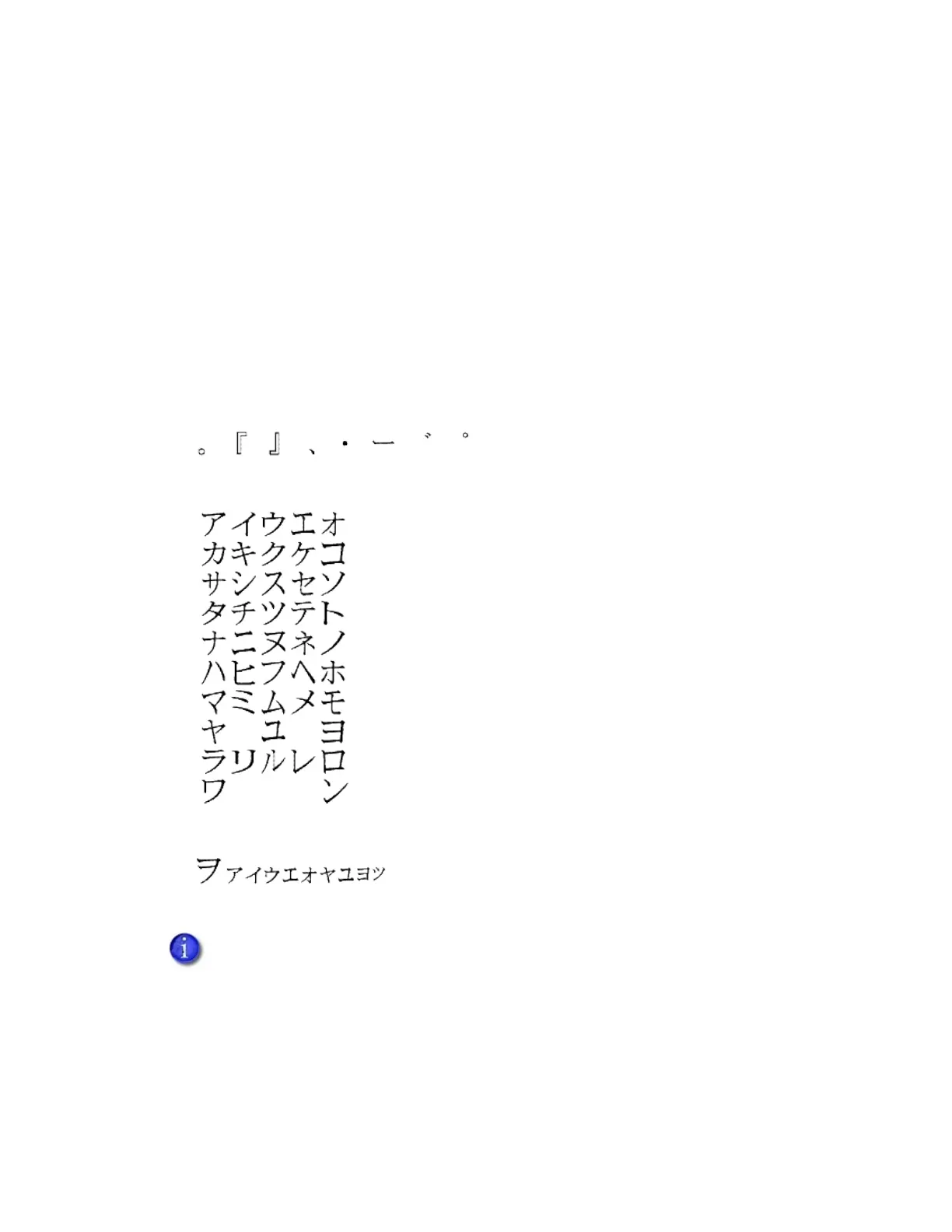

 Special characters:
 45 Katakana characters:
 10 Katakana characters:
The magnetic stripe data uses shift-JIS, which embeds a hidden "shift-in" and "shift-
out" character each time the Japanese-language characters start and end. Each
transition between normal characters and shifted characters is surrounded by these
two control characters. They are encoded on the magnetic stripe. Thus, each hidden
character reduces the number of characters you can encode by one character.

Entrust Sigma DS3 Specifications

General

Print Resolution	300 dpi
Card Capacity Input Hopper	100 cards
Card Capacity Output Hopper	25 cards
Power Supply	100-240 VAC, 50/60 Hz
Print Technology	Dye sublimation
Print Capabilities	Single or dual-sided
Card Thickness	0.010 inches to 0.040 inches
Supported Card Sizes	CR80 (85.6 mm x 54 mm)
Connectivity	USB and Ethernet
Operating System Support	Windows 7, 8, 10, Server 2008, 2012, 2016
Weight	5.49 kg (12.1 lbs)
Operating Temperature	15°C to 35°C (60°F to 95°F)
Operating Humidity	20% to 80% (non-condensing)
Print Speed	Up to 250 cards per hour (YMCKT)
