ep ICE301B - Rear Steering Wheel; Removal and Installation

47
REV. 09/2020
STEERING SYSTEM
5
46
NOTE:
5.1 Rear Steering Wheel
5.1.1 Removal and Installation
Removal
When replacing wheels, be sure that the truck
won't tilt.
Installation and Commissioning
- Install according to the reverse order of rem-
ova.
WARNING
- Turn o󰀨 the truck power and remove the key;

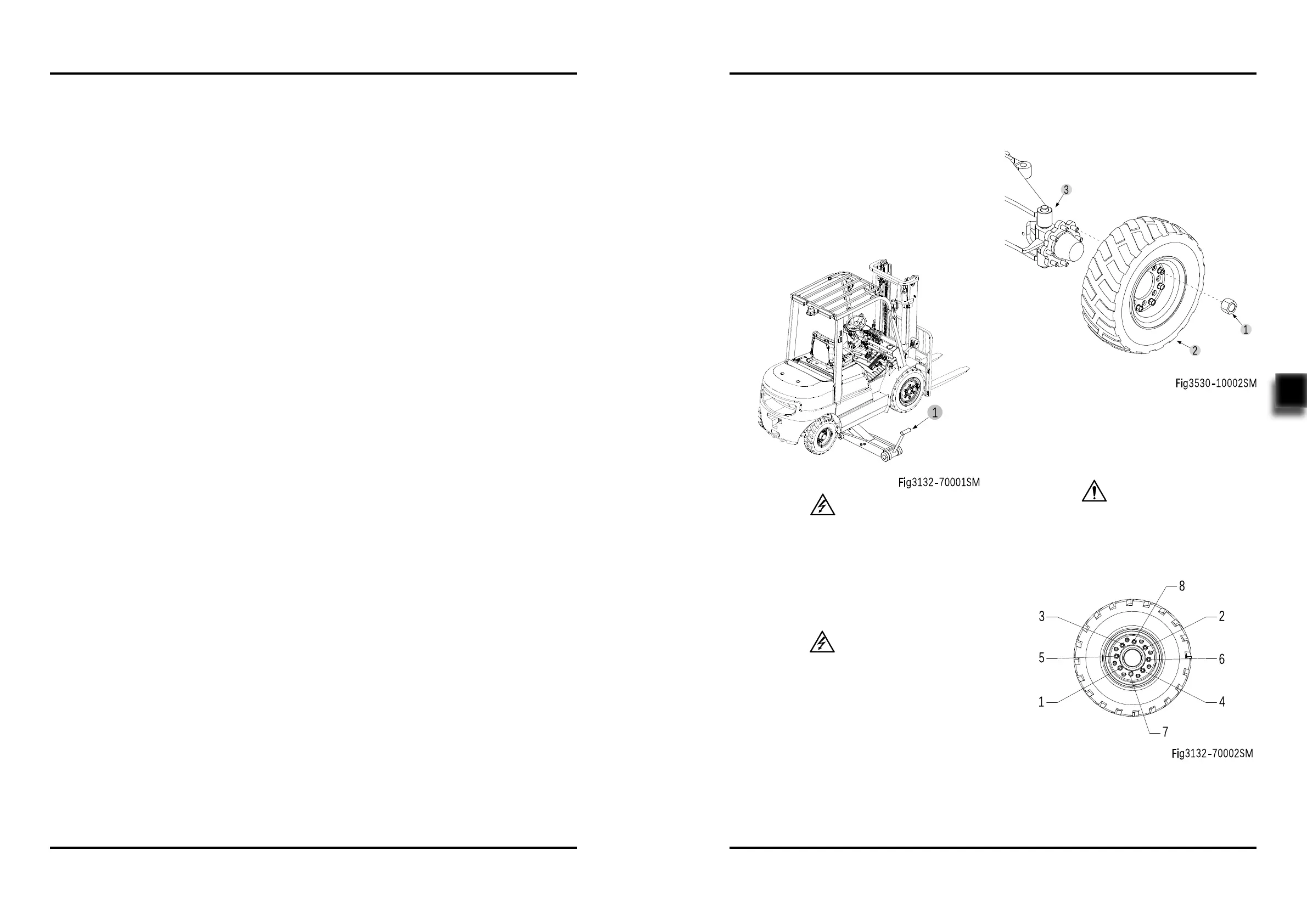

- Place the jack (1) under the chassis near
steering wheels, make the wheel off the
ground;
- Unscrew the eight nuts (1,Fig3530-10002SM)
and remove the steering wheel assembly (2)
from the steering bridge (3).
Make sure the lifting equipment is solid and
secure, and the load capacity should be greater
than the total weight of the vehicle.Lifting height
of not more than 100mm, to prevent the hazards
to the maintenance personnel working under
the vehicle for wheel removal and installation.
WARNING
-
-
Screw the eight nuts as shown in Fig3132-
70002SM.
Tighten the nuts by order and mark with the
torque: 220 Nm.
CAUTION
