- Block the truck wheels with wooden wedges,
raise the fork carriage with lifting tools to
make the chains loose for the following rem-
oval;
8.1.2.2 Chain Replacement
Please place supporting under the fork carriage
to prevent it from falling, resulting in personal
injury.
-
-
-
-
-
-
-

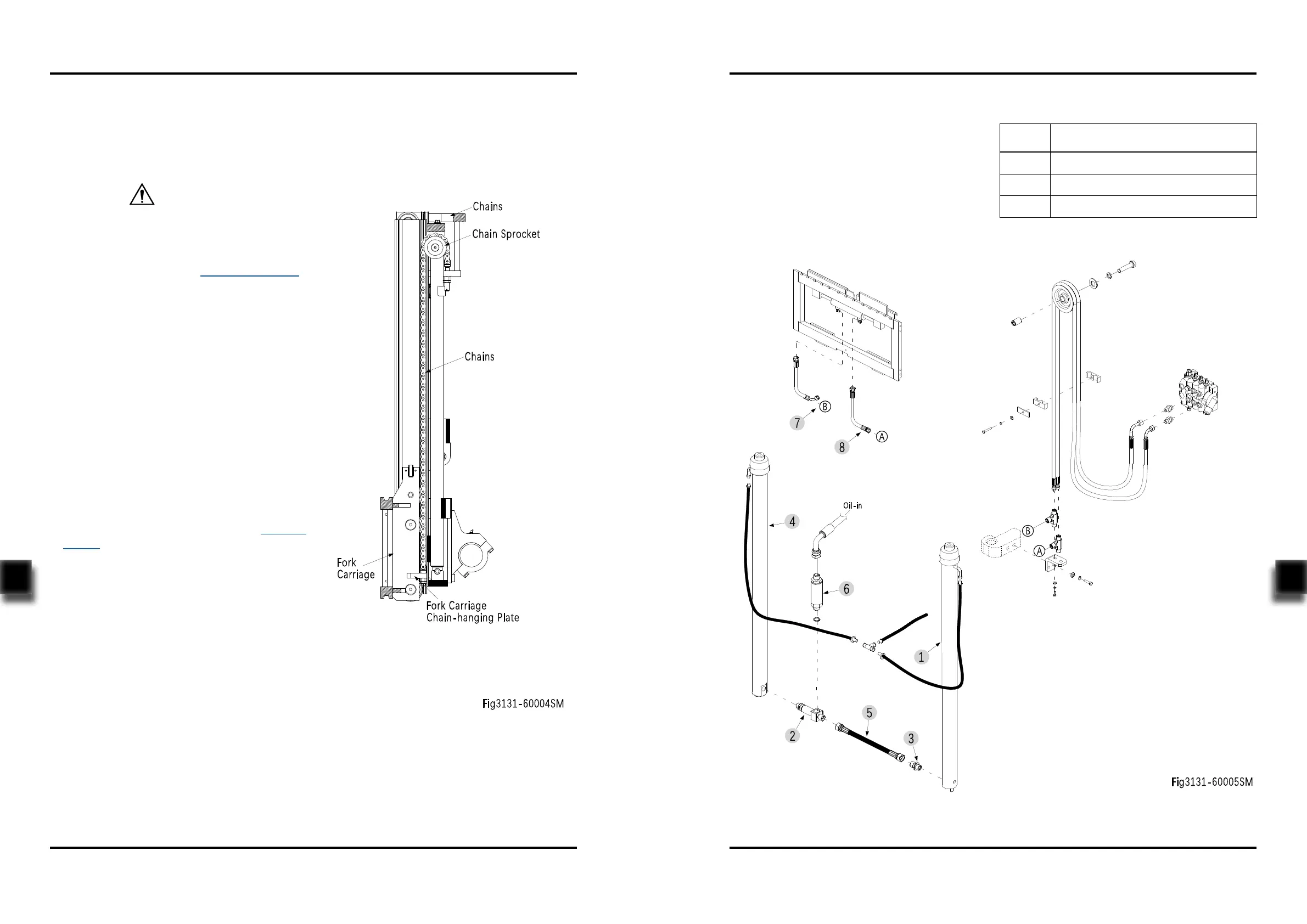

Remove the cotter pin (7, Fig3131-60003SM),
then unscrew the jam nuts (2 & 8) and from
the chain joint (1) and chain joint (6);
Remove the cotter pin (3), pull out the pin
shaft (4), separate the chains (5) from the
chain joint (1) on outer mast;
Remove the chain assembly from the chain
sprocket;
Replace with new chains and hang the new
chain assembly onto the chain sprocket;
Put the chain connector (6) through the fork
carriage chain-hanging plate, screw the jam
nut (2);
Put the chain connector (1) through the outer
mast chain-hanging plate, screw the jam nut
(2);
Adjust the chains according to Section
8.1.2.1.
CAUTION
8.1.3 Mast Tubing
Code Description
A1 Lifting / Lowering Mast Tubing
A3 Right Shift Mast Tubing
B1 Left Shift Mast Tubing
