INFORMATION & SPECIFICATIONS INFORMATION & SPECIFICATIONS
1 1
4
No. Name
1 Counter-weight
2 Warning Light
3 Overhead Guard
4 Steering wheel
5 Rearview mirror
6 Mast
7 Headlight
8 Headlight
No. Name
9 Load backrest
10 Forks
11 Steer wheels
12 Battery Hood
13 Chassis
14 Driver Seat
15 Drive wheels
16 Rear Combination Lights

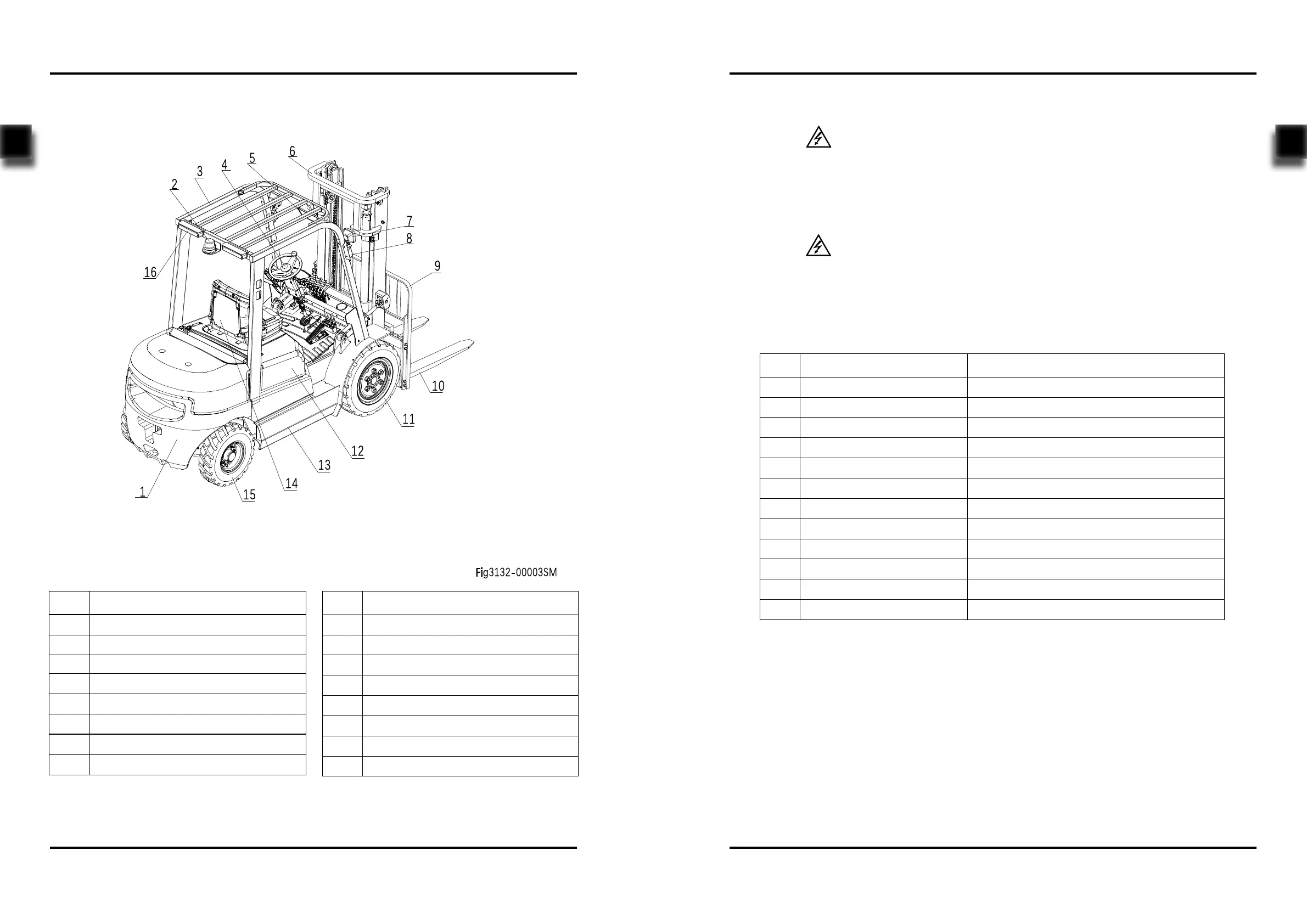

This series are electric forklift trucks. Its impor-
tant structure is as shown in Fig3132-00003SM.
1.2 Introduction
- Please refer to the nameplate for rated load
capacity of the vehicle.
- The vehicle can only be used on the level gro-
und indoors, never use it on mezzanine or
balcony area.
WARNING
Truck can only be operated by single operator;
other personnel is forbidden from riding.
1.3 Common Tools
No. Name Remark
1 Hex Head Socket Wrench 8#~27# One Set
2 Phillips Screwdriver 2# One Piece
3 Slotted Screwdriver 2# One Piece
4 Sockets and Knobs One Set
5 Circlip Pliers One for holes and one for shaft
6 Hammer One Piece
7 Spreader, Crane One Pair
8 Cylinder Wrenches For removal and installation of cylinders
9 Diagonal Pliers One Piece
10 Cylinder Pliers One Piece
11 Grease Gun One Piece
12 Tiger Tooth Wrench 22#/27# One of Each
WARNING
To Next Page
