EPSON Stylus COLOR 680/777/777i Revision B
Disassembly and Assembly Disassembly 92
4. Release two CR guide shaft rod springs from the both hooks on the left and right
sides of the Main frame.

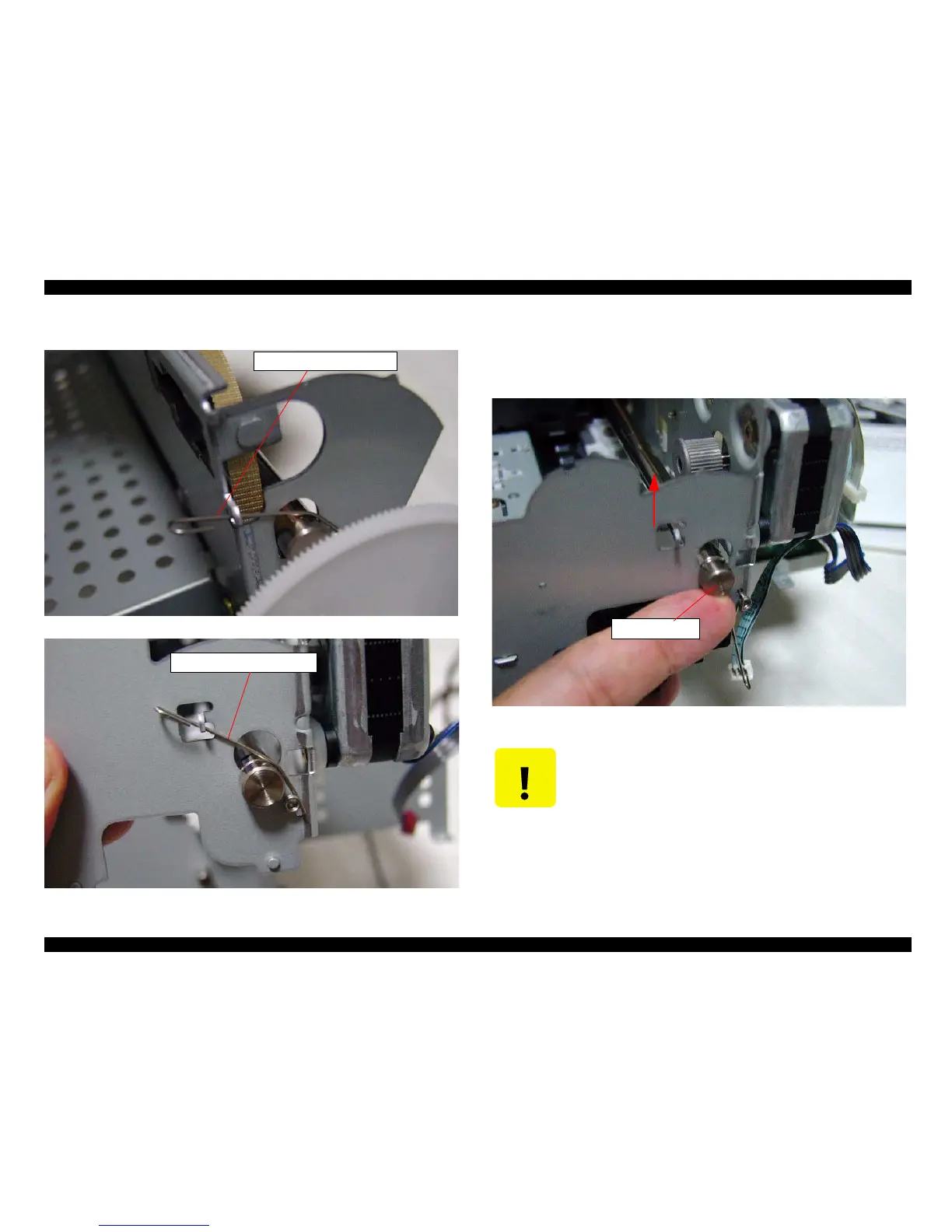

Figure 4-44. Release Left Rod spring for CR shaft
Figure 4-45. Release Right Rod spring for CR shaft
5. Pull the left edge of the CR guide shaft upward to align it with the round cutout
portion. Then, holding the CR unit by hand, remove the CR guide shaft by sliding
it to left or right.
Figure 4-46. Removing the CR guide shaft
Left CR guide shaft rod spring
RightCRguideshaftrodspring
C A U T I O N
Remove the CR guide shaft while holding the CR unit by hand. If
you remove the CR guide shaft without holding the CR unit, the
nozzle surface of the Printhead may come in contact with the
Paper guide front, which causes the dot missing problem.
CR guide shaft
