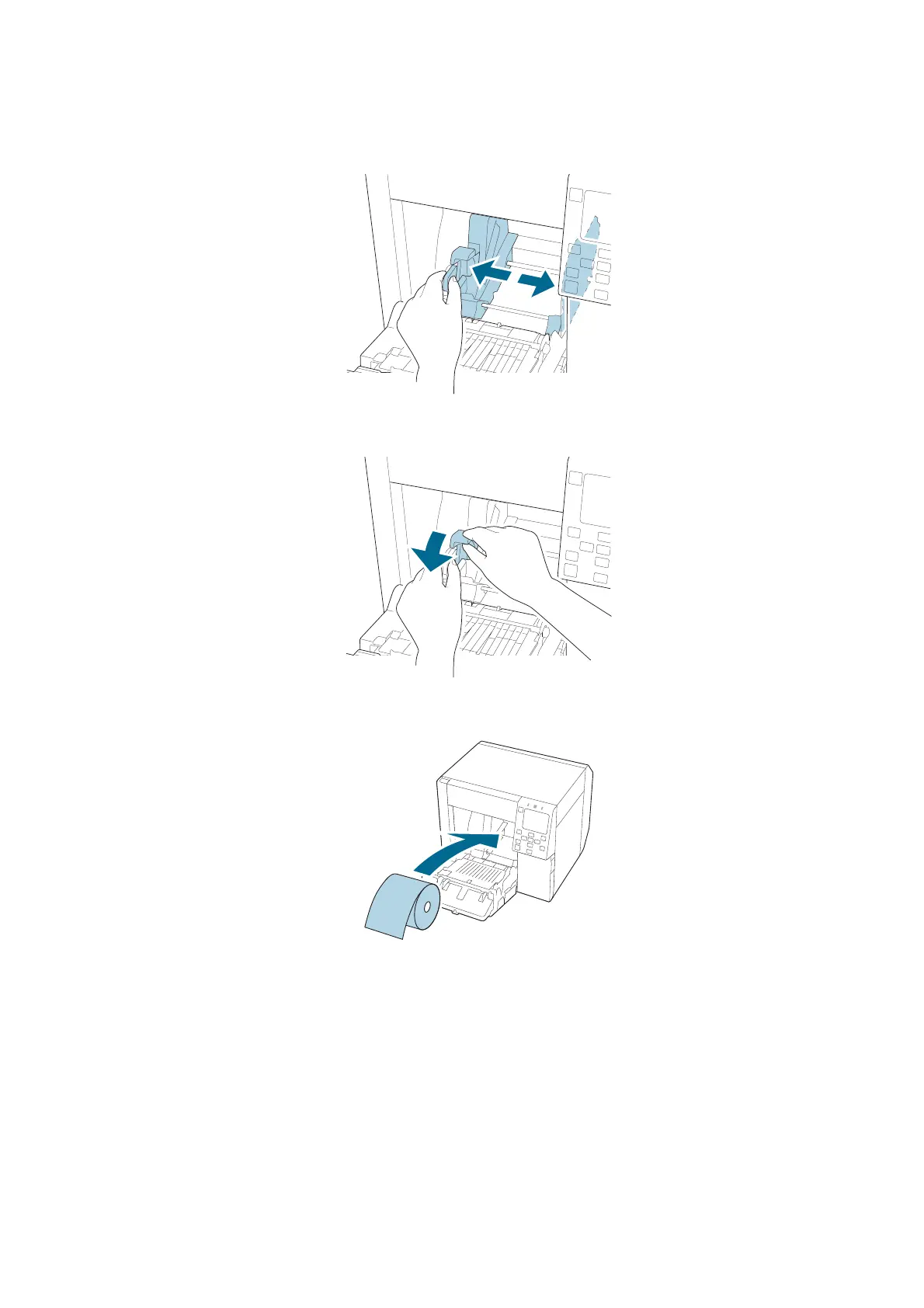

Slide the roll paper guides outward as far as they go.

Lower the lock lever of the roll paper guides.

Insert paper with the printable side face up.

CW-C4000 Series User’s Guide

Basic Operation
