5

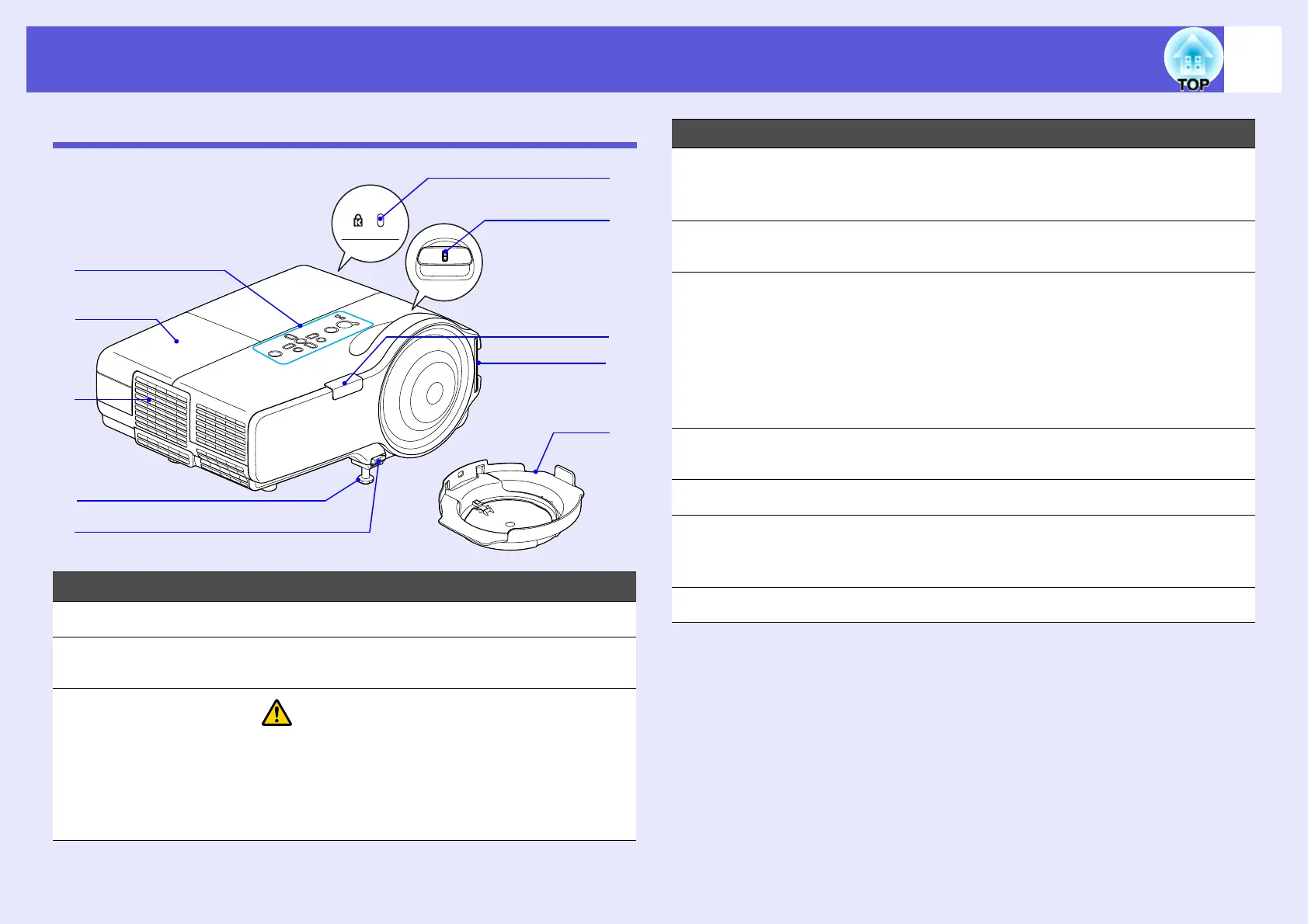

Part Names and Functions
Front/Top
Name Function
A
Control panel s p.7
B
Lamp cover Open this cover when replacing the projector's
lamp. s p.53
C
Air exhaust vent
Caution
Do not place objects that may become warped
or otherwise affected by heat near the air
exhaust vent and do not put your face or
hands near the air exhaust vent while
projection is in progress.
A
B
C
F
D
E
J
G
I
H
D
Front adjustable
feet
Extend and adjust the position of the projected
image when the projector is placed on a
surface such as a desk. s Quick Start Guide
E
Foot adjust lever Pull out the foot lever to extend and retract the
front foot. s Quick Start Guide
F
Air intake vent
(Air filter)
Air is taken in through this opening to cool the
inside of the projector. If dust collects here it
can cause the internal temperature of the
projector to rise, and this can lead to problems
with operation and shorten the optical engine's
service life. Clean the air filter regularly.
s p.50
G
Remote receiver Receives signals from the remote control.
s Quick Start Guide
H
Focus ring Adjusts the image focus. s Quick Start Guide
I
Security slot (j) The security slot is compatible with the
Microsaver Security System manufactured by
Kensington. s p.23
J
Lens cover Protects the lens from any damages and dirt.
Name Function
