Epson EB-410W User Manual

Part Names and Functions
7

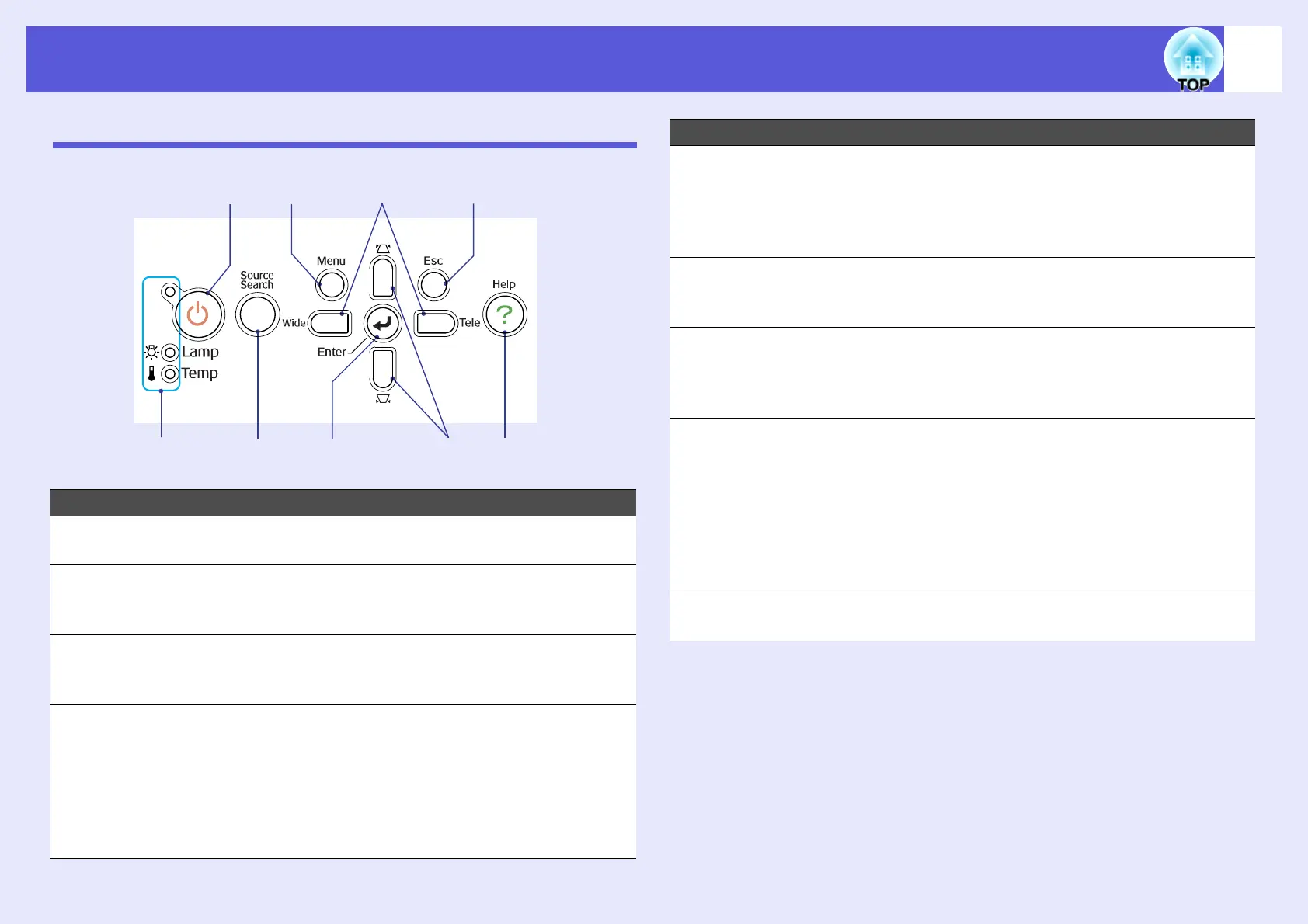

Control Panel
Name Function
A
[t] button Turns the projector power on or off.
s Quick Start Guide
B
Status indicators The color of the indicators and whether they
are flashing or lit indicates the status of the
projector. s p.38
C
[Source Search]
button
Changes to the next input source that is
connected to the projector and is sending an
image.s p.12
D
[Enter] button If pressed during projection of computer signal
images, it automatically adjusts the tracking,
synchronization, and position to project the
optimum image.
When a configuration menu or a help screen is
displayed, it accepts and enters the current
selection and moves to the next level.s p.25
H
CFED
A
B
GI
E
[v] [w] buttons Corrects keystone distortion.
If pressed when a configuration menu or a help
screen is displayed, these buttons select menu
items and setting values.
s Quick Start Guide, p.25
F
[Help] button Displays and closes the help screen which
shows you how to deal with problems if they
occur.s p.37
G
[Esc] button Stops the current function.
If pressed when a configuration menu is
displayed, it moves to the previous menu
level.s p.25
H
[Tele] [Wide]
buttons
Press to switch between Tele/Wide. When you
press the [Tele] button, the projected image
becomes smaller; when you press [Wide], the
image becomes larger.
If pressed when a configuration menu or a help
screen is displayed, these buttons select menu
items and setting values.
s Quick Start Guide, p.25
I
[Menu] button Displays and closes the configuration
menu.s p.25
Name Function

Epson EB-410W Specifications

General

Matrix size	0.56 \
Number of colors	16.78 million colors
Projection distance	0.62/7.83 m
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	30 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-15 - 15 °
Throw ratio	0.48 - 0.65:1
Focal length range	6.48 mm
Lamp type	UHE
Lamp power	170 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
RMS rated power	10 W
Number of built-in speakers	1
Dimensions (WxDxH)	258 x 327 x 95 mm
Power requirements	100-240 V AC ± 10%, 50/60 Hz
Connectivity technology	Wired
Serial interface type	RS-232
Noise level	28 dB
Power consumption (standby)	5.5 W
Power consumption (typical)	236 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	3600 g
