Screen Size and Distance
See the following table to choose the best position for your projector. The values are only a guide. The recommended projection distance is
between 54 and 122cm.
Units: cm Units: cm Units: cm
16:10
Screen Size
Projection
Distance
U
Offset
V
4:3
Screen Size
Projection
Distance
U
Offset
V
16:9
Screen Size
Projection
Distance
U
Offset
V
Minimum
Maximum
(Wide) to (Tele)
Minimum
(Wide)
Minimum
Maximum
(Wide) to (Tele)
Minimum
(Wide)
Minimum
Maximum
(Wide) to (Tele)
Minimum
(Wide)
53" 110 ^ 71 54 to 74 8 47" 95 ^ 71 54 to 74 8 52" 110 ^ 64 54 to 75 12
60" 130 ^ 81 62 to 84 9 50" 100 ^ 76 58 to 79 9 60" 130 ^ 75 63 to 87 14
70" 150 ^ 94 72 to 99 11 60" 120 ^ 90 70 to 96 11 70" 150 ^ 87 74 to 101 16
80" 170 ^ 110 83 to 113 13 70" 140 ^ 110 82 to 112 13 80" 180 ^ 100 85 to 116 19
90" 190 ^ 120 94 14 80" 160 ^ 120 94 14 90" 200 ^ 110 96 21
100" 220 ^ 130 105 16 90" 180 ^ 140 107 16 100" 220 ^ 120 108 23
116" 250 ^ 160 122 18 102" 210 ^ 160 121 18 113" 250 ^ 140 122 26

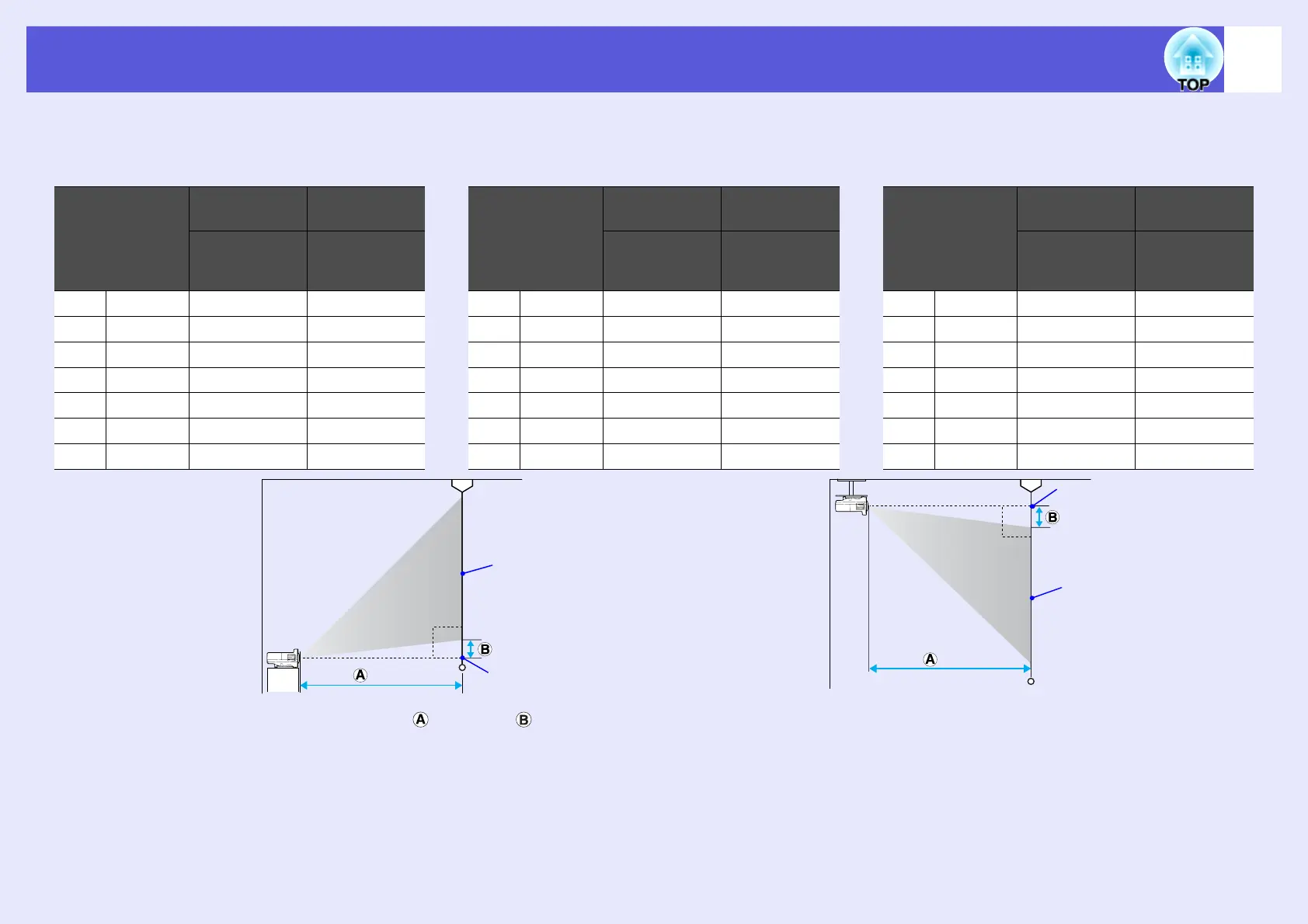

Screen
Center of lens
90°
90°
Center of lens
Screen
The values given for the projection distance and offset of the projector assume a horizontal installation like that shown here.
