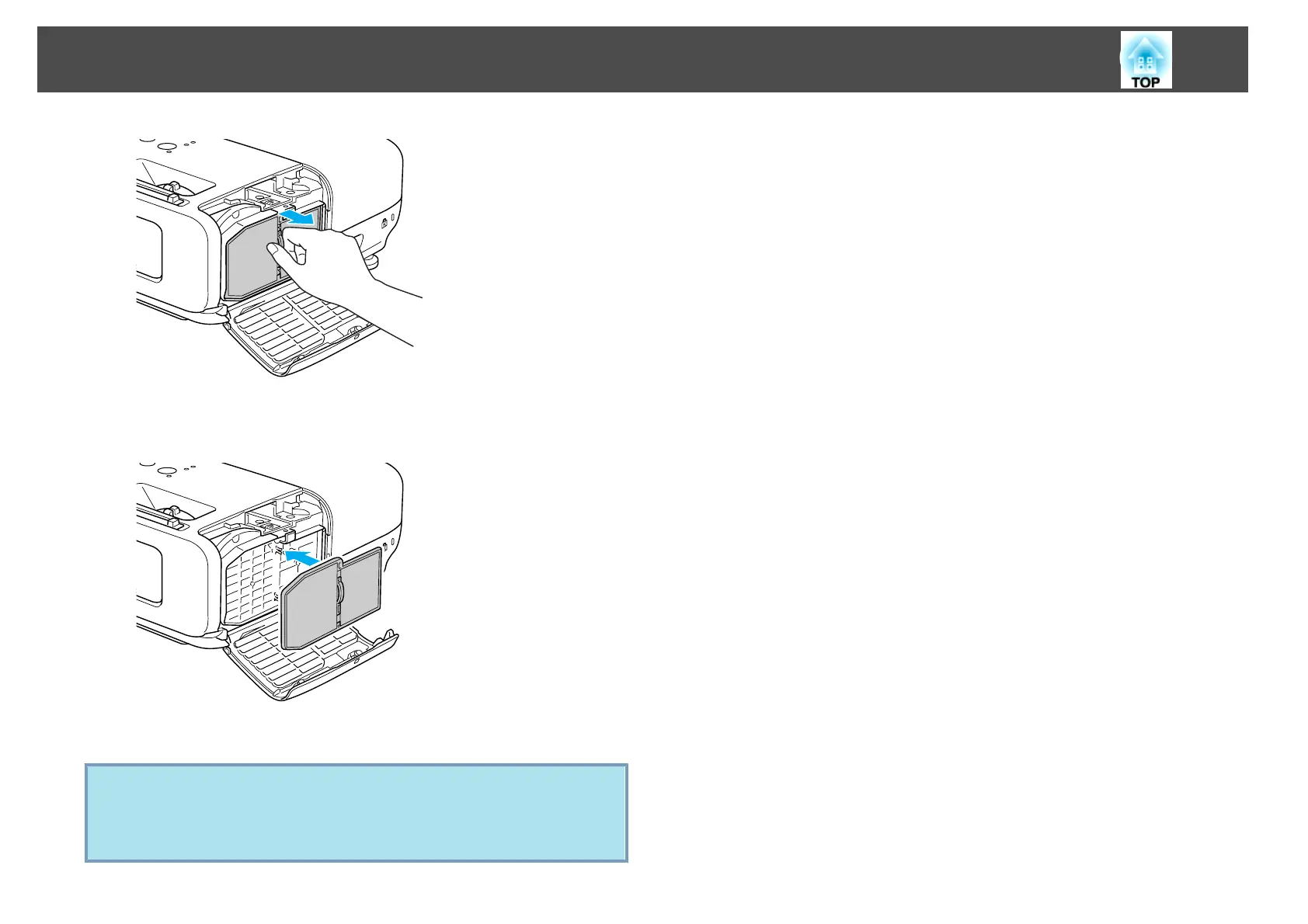

D
Install
the
new
air
filter.
Press
until
it
clicks
into
place.
E
C
l
o
s
e t
h
e a
i
r f
i
l
t
e
r c
o
v
e
r
.
q
Dispose
of
used
ai
r
filters
properly
in
accordance
with
your
local
regulations.
Material
of
the
frame
part:
Polycarbonate,
ABS
resin
Material
of
the
filter
part:
Polyurethane
foam
Replacing Consumables
100
99
101
Table of Contents
Notations Used in this Guide
2
Table of Contents
3
Introduction
6
Projector Features
7
Features Common to each Model
7
Easy to Handle
7
Enhanced Security Functions
7
EB-826WH/825H/85H Features
8
Taking Full Advantage of a Network Connection
8
Projecting JPEG Images Without Connecting a Computer
8
Part Names and Functions
9
Front/Top
9
Rear
10
Base
11
Control Panel
12
Remote Control
13
Various Applications
15
Changing the Projected Image
16
Automatically Detect Input Signal and Change the Projected Image (Source Search)
16
Switch to Target Image by Remote Control
17
Connecting with a USB Cable and Projecting (USB Display)
18
System Requirements
18
Connecting
18
Connecting for the First Time
19
From the Second Time
21
Presentations Using Slideshow (EB-826WH/825H/824H/85H)
22
Files that Can be Projected Using Slideshow
22
Specifications for Files that Can be Projected Using Slideshow
22
Slideshow Examples
22
Presentations Using Slideshow
22
Starting and Closing Slideshow
23
Slideshow Basic Operations
23
Rotating the Image
24
Projecting Image Files
24
Projecting Images
25
Projecting All Image Files in a Folder in Sequence (Slideshow)
26
Setting Image Display Conditions
26
Connecting to External Equipment
28
Connecting and Removing USB Devices
28
Connecting USB Devices
28
Removing USB Devices
29
Connecting to an External Monitor (EB-826WH/825H/85H/84H/84L Only)
29
Connecting to an External Speaker (EB-826WH/825H/85H/84H/84L Only)
30
Connecting a Microphone
31
Connecting a LAN Cable (EB-826WH/825H/85H/84H/84L Only)
31
Installing the Wireless LAN Unit (EB-826WH/825H/85H Only)
32
Functions for Enhancing Projection
33
Selecting the Projection Quality (Selecting Color Mode)
33
Setting the Auto Iris
34
Hiding the Image and Sound Temporarily (A/V Mute)
34
Freezing the Image (Freeze)
35
Changing the Aspect Ratio
35
Changing Methods
35
Changing the Aspect for Video Equipment Images
36
Changing the Aspect for Computer Images (EB-825H/824H/85H/84H/84L)
37
Changing the Aspect for Computer Images (EB-826WH)
38
Pointer Function (Pointer)
40
Enlarging Part of the Image (E-Zoom)
41
Operating the Mouse Pointer by Remote Control (Wireless Mouse)
42
Security Functions
44
Managing Users (Password Protect)
44
Type of Password Protect
44
Setting Password Protect
44
Entering the Password
45
Contents
45
Restricting Operation (Control Panel Lock)
46
Anti-Theft Lock
47
Installing the Wire Lock
47
Changing Settings Using a Web Browser (Web Control)
48
Displaying Web Control
48
Entering the IP Address of the Projector
48
Displaying Web Remote
48
Using the Mail Notification Function to Report Problems
50
Management Using SNMP
51
Saving a User's Logo
52
Saving a User Pattern
54
Configuration Menu
56
Using the Configuration Menu
57
List of Functions
58
Image Menu
58
Signal Menu
59
Settings Menu
60
Extended Menu
63
Network Menu (EB-826WH/825H/85H/84H/84L Only)
65
Notes on Operating the Network Menu
66
Soft Keyboard Operations
66
Basic Menu
67
Wireless LAN Menu (EB-826WH/825H/85H Only)
68
Security Menu (EB-826WH/825H/85H Only)
69
When WEP Is Selected
70
When WPA-PSK (TKIP) or WPA2-PSK (AES) Is Selected
71
Wired LAN Menu
72
Mail Menu
73
Others Menu
74
Reset Menu
75
Info Menu (Display Only)
76
Reset Menu
77
Troubleshooting
78
Using the Help
79
Problem Solving
80
Reading the Indicators
80
Indicator Is Lit or Flashing Red
81
M O Indicators Are Flashing or Lit Orange
82
When the Indicators Provide no Help
83
Problems Relating to Images
84
Problems When Projection Starts
88
Other Problems
88
Reading Problem Mail Notification Function (EB-826WH/825H/85H/84H/84L Only)
91
Appendix
92
Installation Methods
93
Cleaning
94
Cleaning the Projector's Surface
94
Cleaning the Lens
94
Cleaning the Air Filter
94
Replacing Consumables
95
Replacing the Remote Control Batteries
95
Replacing the Lamp
95
Lamp Replacement Period
95
How to Replace the Lamp
96
Resetting the Lamp Hours
99
Replacing the Air Filter
99
Air Filter Replacement Period
99
How to Replace the Air Filter
99
Optional Accessories and Consumables
101
Optional Accessories
101
Consumables
101
Contents
101
Screen Size and Projection Distance
102
Projection Distance (EB-825H/824H/85H/84H/84L)
102
Projection Distance (EB-826WH)
102
ESC/VP21 Commands
104
Command List
104
Cable Layouts
104
Serial Connection
104
Communications Protocol
105
About Pjlink
106
Supported Monitor Displays
107
Supported Monitor Displays (EB-825H/824H/85H/84H/84L)
107
Computer Signals (Analog RGB)
107
Component Video
107
Composite Video/S-Video
107
Supported Monitor Displays (EB-826WH)
108
Computer Signals (Analog RGB)
108
Component Video
108
Composite Video/S-Video
108
Specifications
109
Projector General Specifications
109
Appearance
113
Glossary
114
General Notes
116
About Notations
116
General Notice
116
Index
134
