Epson EB-84L User Manual

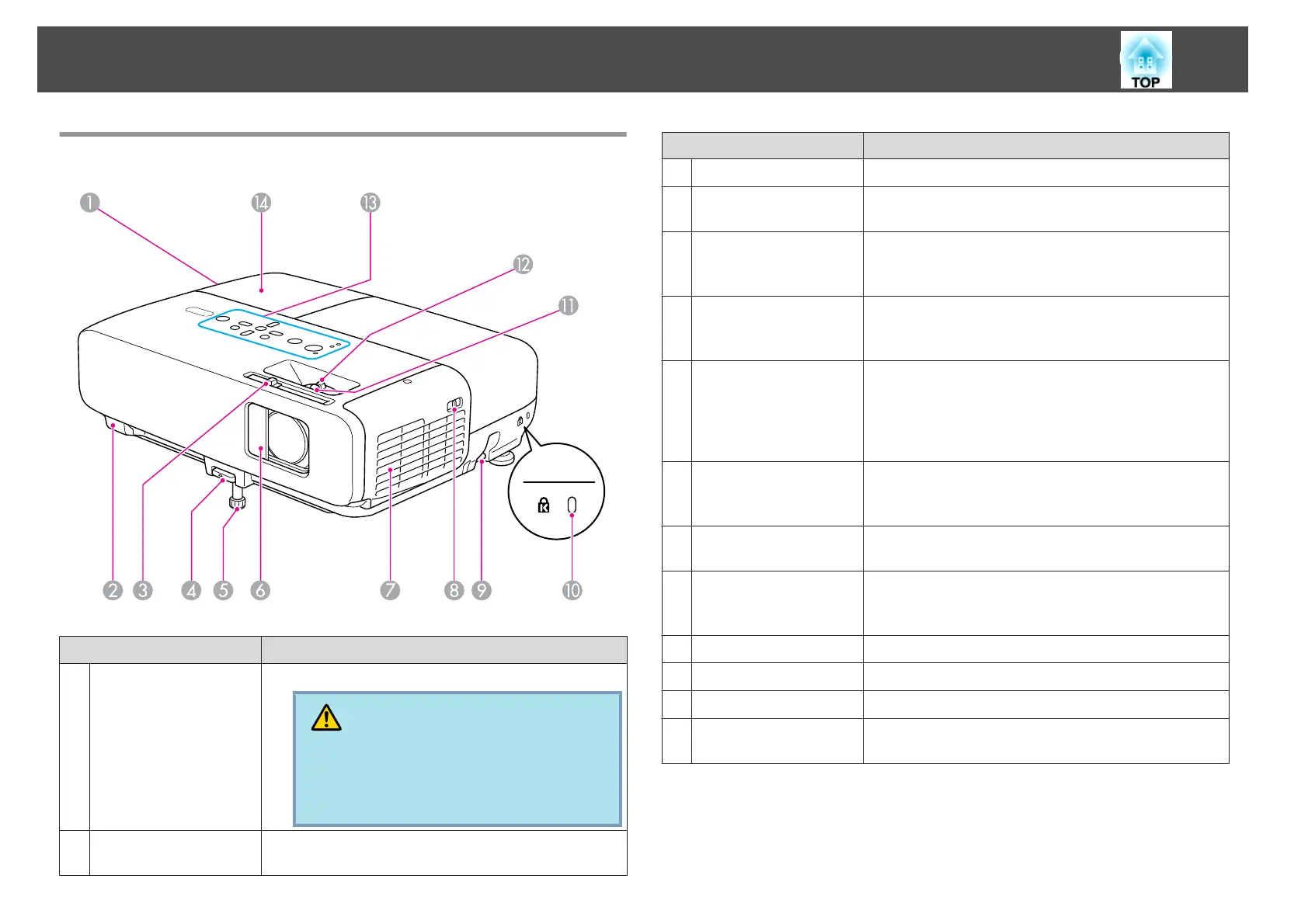

Front/Top
Name Function
A
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
Do not place objects that may become warped or
otherwise affected by heat near the Air exhaust vent
and do not put your face or hands near the vent
while projection is in progress.
B
Remote Receiver
Receives signals from the remote control. s Quick Start
Guide
Name Function
C
A/V mute slide knob
Slide the knob to open and close the A/V mute slide.
D
Foot adjust lever
Pull out the Foot adjust lever to extend and retract the
Front adjustable foot. s Quick Start Guide
E
Front adjustable foot
Extend and adjust the position of the projected image
when the projector is placed on a surface such as a desk.
s Quick Start Guide
F
A/V mute slide
Close when not using the projector to protect the lens. By
closing during projection you can hide the image and the
sound (A/V Mute). s Quick Start Guide , s p.34
G
Air intake vent
(Air filter)
Takes in air to cool the projector internally. If dust collects
here it can cause the internal temperature to rise, and this
can lead to problems with operation and shorten the
optical engine's service life. Be sure to clean the Air filter
regularly. s p.94, p.99
H
Air filter cover
open/close switch
Opens and closes the air filter cover. s p.99
Open this cover when installing the optional Wireless
LAN unit.
I
Security cable
installation point
Pass a commercially available wire lock through here and
lock it in place. s p.47
J
Security slot
The Security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s p.47
K
Focus ring
Adjusts the image focus. s Quick Start Guide
L
Zoom ring
Adjusts the image size. s Quick Start Guide
M
Control panel
s p.12
N
Lamp cover
Open this cover when replacing the projector's Lamp.
s p.95
Part Names and Functions
9
