• When the audio cable jack is inserted into the Audio Output (Audio
Out) Port, audio stops being output from the projector's built-in
speakers and switches to external output.
• When using a commercially available 2RCA(L/R)/stereo mini-pin
audio cable, make sure it is labeled "No resistance".
Connecting a Microphone

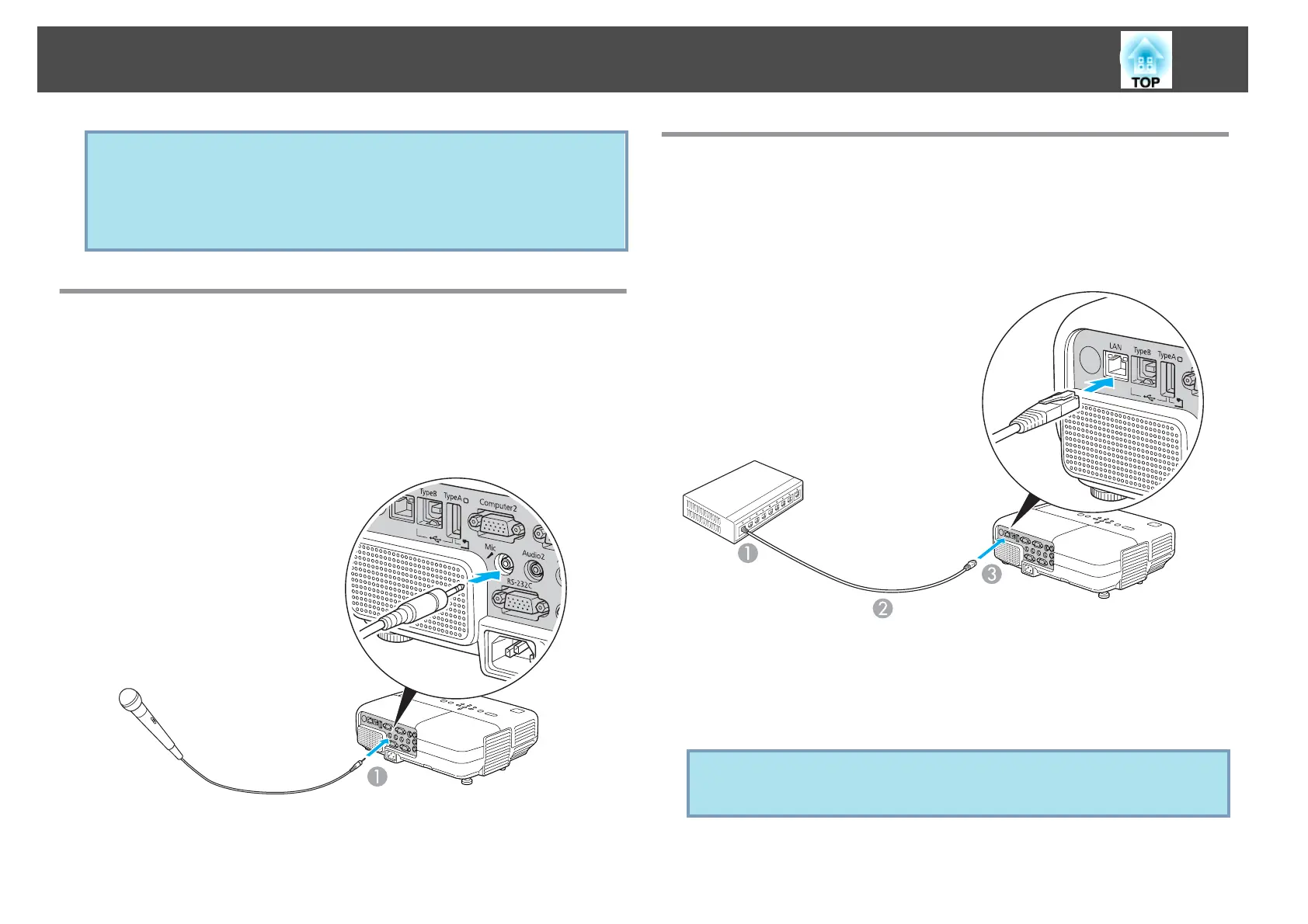

You can output microphone audio from the projector's speaker by
connecting a mic to the projector's Microphone (Mic) Input Port.
Microphone (Mic) is compatible with dynamic mics and condenser mics.
When using the condenser microphone, turn On Plug-in Power from the
Configuration menu.
s p.63
A
To Microphone (Mic) Input Port
Connecting a LAN Cable (EB-826WH/825H/85H/
84H/84L Only)
Connect with a commercially available 100BASE-TX or 10BASE-T LAN
cable. Depending on the model, the following diagrams and interfaces may
differ.
A
To LAN port
B
LAN cable (commercially available)
C
To LAN port
Attention
To prevent malfunctions, use a category 5 shielded LAN cable.
Connecting to External Equipment
31
To Next Page
