Projector Parts and Functions
9
The following sections explain the projector parts and their functions.
gg Related Links
• "Projector Parts - Front/Side" p.9
• "Projector Parts - Top/Side" p.10
• "Projector Parts - Rear" p.11
• "Projector Parts - Base" p.12
• "Projector Parts - Projector Remote Control" p.12

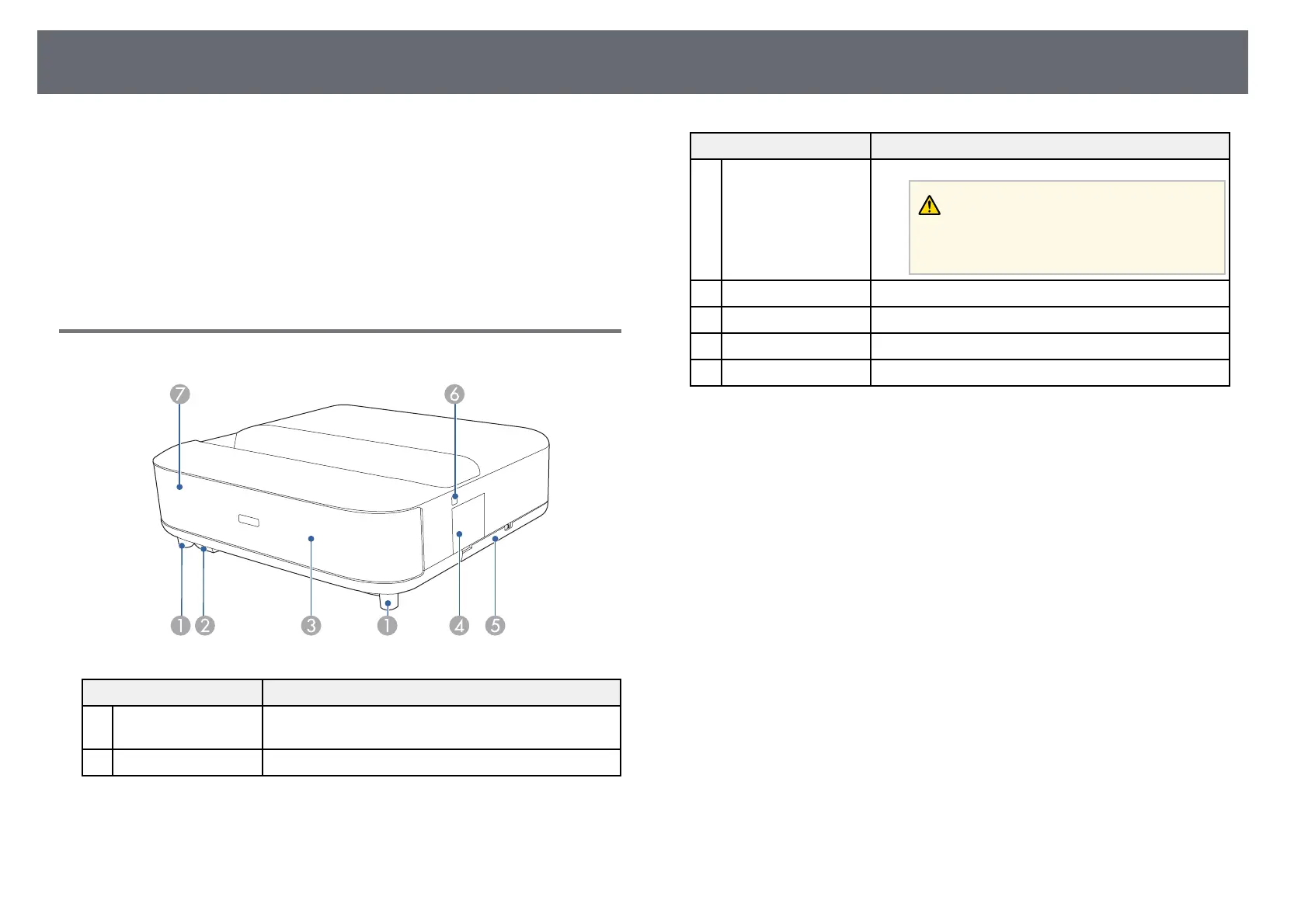

Projector Parts - Front/Side
Name Function
A
Front adjustable feet When setup on a surface such as a desk, turn to extend
and retract the feet to adjust the horizontal tilt.
B
Remote receiver Receives signals from the remote control.
Name Function
C
Speaker Outputs audio.
Caution
Do not hold or hit this part as doing so may
cause it to deform.
D
Focus lever cover Open to access the focus lever.
E
Air filter cover Open to access the air filter.
F
Power button Turns the projector on or off.
G
Status indicator Indicates the projector's status.
gg Related Links
• "Air Filter and Air Intake Vent Maintenance" p.75
• "Remote Control Operation" p.21
• "Projector Indicator Status" p.82
• "Turning On the Projector" p.26
• "Focusing the Image Using the Focus Lever" p.28
