Installing the Automatic Document Feeder
Because the automatic document feeder is heavy, you may want to have
someone help you with this procedure. Also, the document feeder is
large, so be sure to allow adequate space around the scanner.
Follow the steps below to install the automatic document feeder on your scanner:
1. Make sure your scanner is turned
off and unplug the cables.

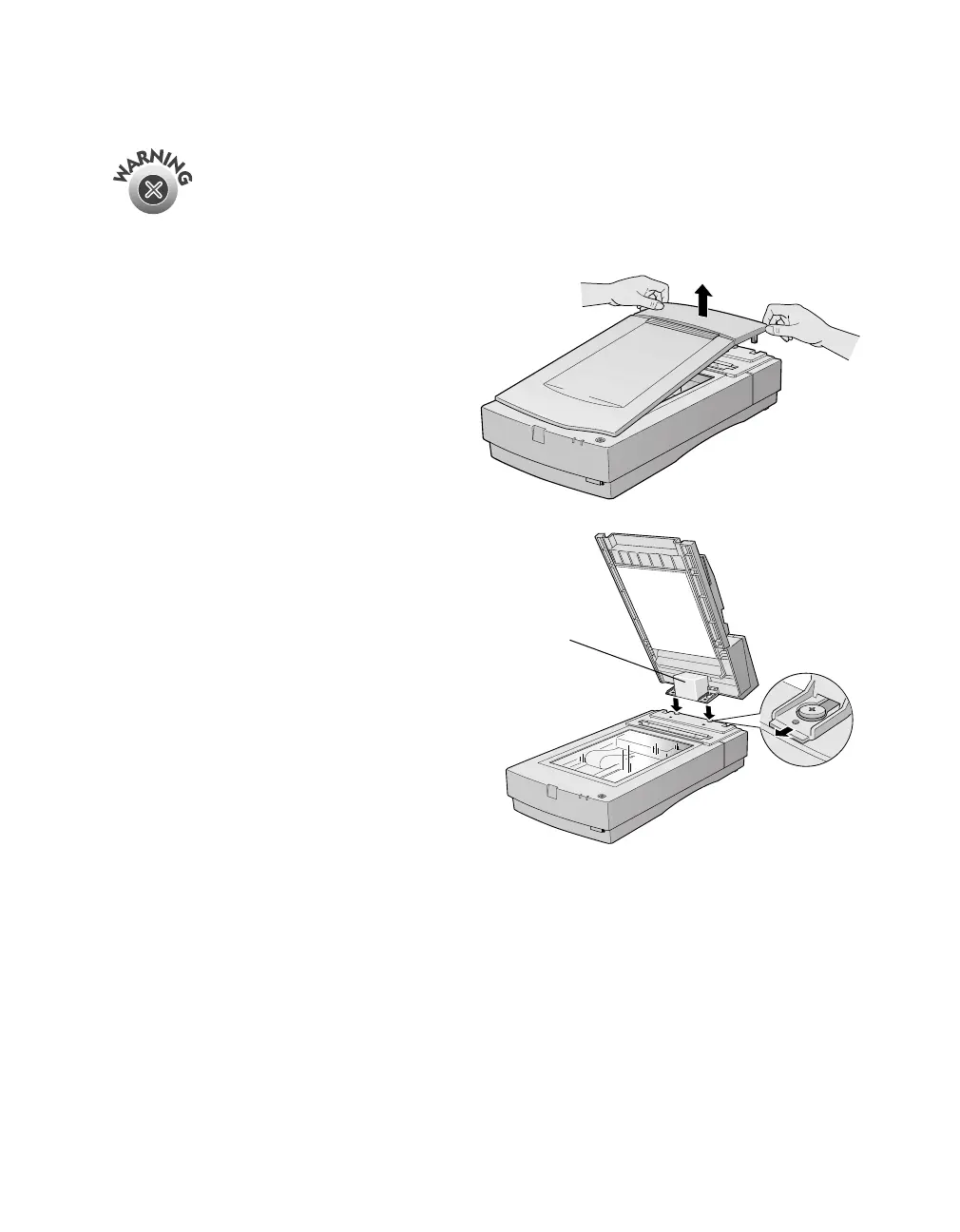

2. Remove your scanner’s document
cover by grasping the back of
the cover as shown and easing the
cover up.
3. Make sure the document table is
clean and dust free.
4. Position the automatic
document feeder’s mounting
slots over the two mounting
screws located at the back of the
scanner. Slide the automatic
document feeder forward
slightly until the two holes in
front of these slots are aligned
with the screw holes at the back
of the scanner.
Don’t remove the foam
block until you’re done
installing the unit.
1680.book Page 105 Thursday, March 1, 2001 4:28 PM

Epson Expression 1680 Specifications

Scanning Specifications

optical resolution	1600 x 3200 dpi
maximum resolution	13, 600 x 18, 720 dpi with interpolation
effective pixels	13, 600 x 18, 720 pixels (1600 dpi)
color depth	48 bits per pixel internal/external
grayscale depth	16 bits per pixel internal/external
scanning speed (color, 1600 dpi, draft mode)	9.2 msec/line (approx.)
scanning speed (grayscale/monochrome, 1600 dpi, draft mode)	3.1 msec/line (approx.)

Operating Environment

temperature operating range	41ºF to 95ºF (5ºC to 35ºC)
humidity operating range	10% to 80% (no condensation)
humidity storage range	10% to 85% (no condensation)

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption (operating without optional unit)	60W
power consumption (operating with optional unit)	75W
power consumption (standby without optional unit)	10W

Weight and Dimensions

maximum read area	8.5" x 11.7" (216mm x 297mm)
width	13.1" (332mm)
depth	22.1" (562mm)
height	5.2" (133mm)
weight	18.7 lb (8.5 kg approx.)
